[DC 13.8 V]
Accepts regulated DC power of 13.8 V DC
±15% through the supplied DC power cable.
LThe maximum transmit power depends on the
power source.
• When using an external DC power supply
(13.8 V DC):
• When using the battery pack: 5 W

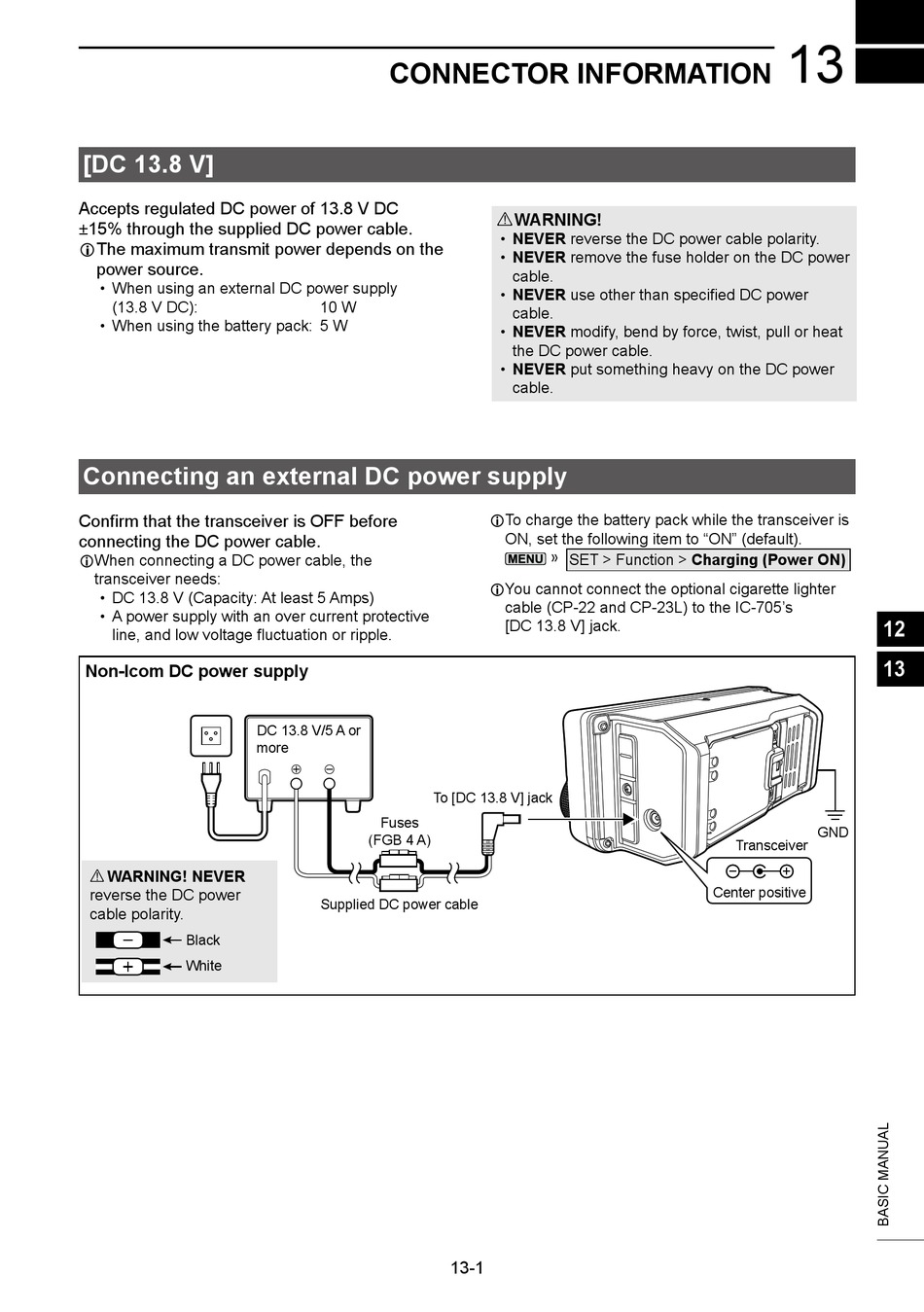

Connecting an external DC power supply

Confirm that the transceiver is OFF before
connecting the DC power cable.
LWhen connecting a DC power cable, the
transceiver needs:
• DC 13.8 V (Capacity: At least 5 Amps)
• A power supply with an over current protective
line, and low voltage fluctuation or ripple.

Non-Icom DC power supply

R WARNING! NEVER
reverse the DC power
cable polarity.
Black
White

CONNECTOR INFORMATION

10 W
DC 13.8 V/5 A or
more
+ _
Fuses
(FGB 4 A)
Supplied DC power cable
RWARNING!
• NEVER reverse the DC power cable polarity.
• NEVER remove the fuse holder on the DC power
cable.
• NEVER use other than specified DC power
cable.
• NEVER modify, bend by force, twist, pull or heat
the DC power cable.
• NEVER put something heavy on the DC power
cable.
LTo charge the battery pack while the transceiver is
ON, set the following item to "ON" (default).
» SET > Function > Charging (Power ON)
LYou cannot connect the optional cigarette lighter
cable (CP-22 and CP-23L) to the IC-705's
[DC 13.8 V] jack.
To [DC 13.8 V] jack
13-1
13
12
13
GND
Transceiver
Center positive
