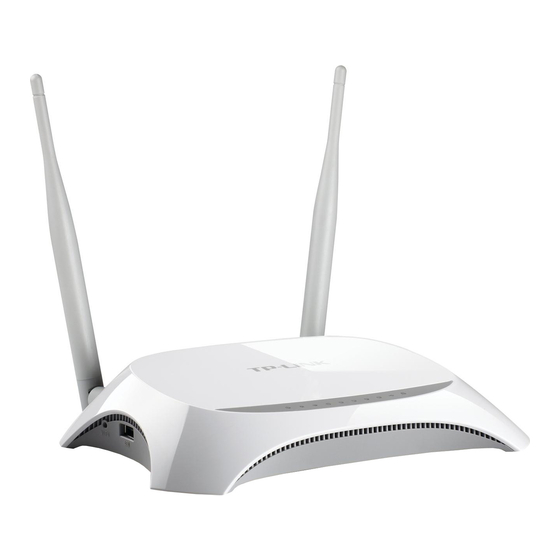

TP-Link TL-MR3420 User Manual

3g/4g wireless n router
Hide thumbs Also See for TL-MR3420:
Table of Contents

Advertisement

Quick Links

User Guide
3G/4G Wireless N Router
TL-MR3420
1910011969 REV4.0.0

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TL-MR3420

Summary of Contents for TP-Link TL-MR3420

  • Page 1 User Guide 3G/4G Wireless N Router TL-MR3420 1910011969 REV4.0.0...

  • Page 2: Table Of Contents

    Contents About This Guide ......................1 Chapter 1. Get to Know About You Router ......2 1.

  • Page 3: About This Guide

    The Quick Installation Guide can be found where you find this guide or inside the package of the router. Specifications can be found on the product page at http://www.tp-link.com. A Technical Support Forum is provided for you to discuss our products at http://forum.tp-link.com.

  • Page 4: Chapter 1. Get To Know About You Router

    Chapter Get to Know About You Router This chapter introduces what the router can do and shows its appearance. This chapter contains the following sections: • Product Overview • Panel Layout...

  • Page 5: Product Overview

    Wi-Fi signal to all your devices while boosting widespread coverage throughout your home, and the built-in Ethernet ports supply high-speed connection to your wired devices. Moreover, it is simple and convenient to set up and use the TP-LINK router due to its intuitive web interface. 1. 2.
  • Page 6 Chapter 1 Get to Know About You Router LED Explanation Name Status Indication The Router is initializing. The Router is working normally. Flashing (System) The Router has a system error. The wireless function is enabled. Flashing ( Wi-Fi) The wireless function is disabled. A device is connected to the corresponding port but no data are being transferred.
  • Page 7 Chapter 1 Get to Know About You Router 1. 2. 2. The Back Panel The following parts (view from left to right) are located on the rear panel. Item Description For connecting the power adapter. Please use the power adapter provided with Power Socket this router.
  • Page 8 Chapter 1 Get to Know About You Router Item Description For pluging in a 3G/4G USB modem. USB Port...

  • Page 9: Chapter 2. Connect The Hardware

    Chapter Connect the Hardware This chapter contains the following sections: • Position Your Router • Connect Your Router...

  • Page 10: Position Your Router

    Chapter 2 Connect the Hardware 2. 1. Position Your Router • The product should not be located where it will be exposed to moisture or excessive heat. • Place the router in a location where it can be connected to multiple devices as well as to a power source.
  • Page 11 If the Wi-Fi LED ( ) is off, press the Wi-Fi button on the rear panel for 3 seconds and then check the LED again. • http://www.tp-link.com/en/comp-list.html You can find the latest modem compatibility list in our website: • •...
  • Page 12 Chapter 2 Connect the Hardware Power Wi-Fi Internet Note: • If the Wi-Fi LED ( ) is off, press the Wi-Fi button on the rear panel for 3 seconds and then check the LED again. 2. Connect your computer to the router. •...
  • Page 13 Chapter 2 Connect the Hardware Close to WIFI POWER ON/OFF WPS/ RESET...

  • Page 14: Chapter 3. Set Up Internet Connection Via Quick Setup Wizard

    Chapter Set Up Internet Connection via Quick Setup Wizard This chapter introduces how to connect your router to the internet. The router is equipped with a web-based Quick Setup wizard. It has many ISP information built in, automates many of the steps and verifies that those steps have been successfully completed.

  • Page 15: Quick Setup

    Chapter 3 Set Up Internet Connection via Quick Setup Wizard 3. 1. Quick Setup The Quick Setup Wizard will guide you through the process to set up your router to access the Internet. 1. Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your computer.
  • Page 16 Chapter 3 Set Up Internet Connection via Quick Setup Wizard Note: • If you are using 3G/4G Preferred or WAN Preferred, the router would connect, disconnect or switch the current access automatically. The Connect/Disconnect button (on 3G/4G, PPPoE, PPTP, L2TP) and some related parameters could not be set manually.
  • Page 17 Chapter 3 Set Up Internet Connection via Quick Setup Wizard 2 ) In this case, we take dynamic IP for instance. Please select to clone the mac address or not and click Next. For other connection types, please enter the parameters provided by your ISP, and then click Next.
  • Page 18 Chapter 3 Set Up Internet Connection via Quick Setup Wizard...

  • Page 19: Configure The Router

    Chapter Configure the Router This chapter presents how to configure the various features of the router working as a Standard Wireless Router. This chapter contains the following sections: • Status • Network • Wireless • DHCP • Forwarding • Security •...

  • Page 20: Status

    Chapter 4 Configure the Router 4. 1. Status 1. Visit http://tplinkwifi.net, and log in with the username and password you set for the router. 2. Go to Advanced > Status. You can view the current status information of the router in Standard Router Mode.
  • Page 21 Chapter 4 Configure the Router • Firmware Version - The version information of the router’s firmware. • Hardware Version - The version information of the router’s hardware.
  • Page 22 Chapter 4 Configure the Router • - This field displays the current settings of the LAN, and you can configure them on the Advanced > Network > page. • MAC address - The physical address of the router. • IP address - The LAN IP address of the router.

  • Page 23: Network

    Chapter 4 Configure the Router 4. 2. Network 4. 2. 1. Internet Access The router is designed to work with either WAN port or 3G/4G USB modem, and supports “automatically take over back up with 3G/4G access” as Ethernet WAN failover. 1.
  • Page 24 Chapter 4 Configure the Router • Only when the WAN connection is Dynamic IP, Static IP or PPPoE can the router support the switch between 3G/4G mode and WAN mode. 4. 2. 2. 3G/4G To use the 3G/4G function, you should first insert a 3G/4G USB modem into the 3G/4G USB port of the router.
  • Page 25 Chapter 4 Configure the Router • Connect on Demand - You can configure the router to disconnect your Internet connection after a specified idle period of the Internet connectivity. If your Internet connection has been terminated due to inactivity, Connect on Demand enables the router to automatically re-establish your connection as soon as you attempt to access the Internet.
  • Page 26 Chapter 4 Configure the Router • Set the Dial Number and APN manually - Select this check box to fill in the dial number and APN (Access Point Name) if your ISP is not listed or the default values are not the latest.
  • Page 27 Chapter 4 Configure the Router 1. Download a most recent 3G/4G USB modem configuration file from our website http://www.tp-link.com. 2. Visit http://tplinkwifi.net, and log in with the username and password you set for the router. 3. Go to Advanced >...
  • Page 28 Chapter 4 Configure the Router • MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks is 1500 Bytes. It is not recommended that you change the default MTU size unless required by your ISP. • Use These DNS Servers - If your ISP providess you one or two DNS addresses, select Use These DNS Servers...
  • Page 29 Chapter 4 Configure the Router Static IP If your ISP provides a static or fixed IP address, subnet mask, default gateway and DNS setting, please select Static • IP Address - Enter the IP address in dotted-decimal notation provided by your ISP. •...
  • Page 30 Chapter 4 Configure the Router • User Name/Password - Enter the username and password provided by your ISP. These fields are case-sensitive. • Confirm Password - Enter the password provided by your ISP again to ensure the password you entered is correct. •...
  • Page 31 Chapter 4 Configure the Router • Time-based Connecting - The connection will only be established in the period from the start time to the end time (both are in HH:MM format). • Connect Manually - You can click Connect/Disconnect to connect/disconnect immediately.
  • Page 32 Chapter 4 Configure the Router • ISP Specified IP Address - If your ISP does not automatically assign IP addresses to the router, please select Use IP address specified by ISP and enter the IP address provided by your ISP in dotted-decimal notation. •...
  • Page 33 Chapter 4 Configure the Router...
  • Page 34 Chapter 4 Configure the Router L2TP/Russia L2TP If your ISP provides L2TP connection, please select L2TP/Russia L2TP. • User Name/Password - Enter the username and password provided by your ISP. These fields are case-sensitive. • Confirm Password - Enter the Password provided by your ISP again to ensure the password you entered is correct.
  • Page 35 Chapter 4 Configure the Router • Dynamic IP/ Static IP - Select either as required by your ISP. If Static IP is selected, please enter the IP address, subnet mask, gateway and DNS also provided by your ISP. • Internet IP Address/ Internet DNS - The Internet IP address and DNS server address assigned by L2TP server.
  • Page 36 Chapter 4 Configure the Router PPTP/Russia PPTP If your ISP provides PPTP connection, please select PPTP/Russia PPTP. • User Name/Password - Enter the username and password provided by your ISP. These fields are case-sensitive. • Confirm Password - Enter the Password provided by your ISP again to ensure the password you entered is correct.
  • Page 37 Chapter 4 Configure the Router • Connect/Disconnect - Click this button to connect or disconnect immediately. • Dynamic IP/ Static IP - Select either as required by your ISP. If Static IP is selected, please enter the IP address, subnet mask, gateway and DNS also provided by your ISP.
  • Page 38 Chapter 4 Configure the Router address in this field. Click Restore Factory MAC to restore the MAC address of WAN port to the factory default value. • Your PC’s MAC Address - This field displays the MAC address of the PC that is managing the router.

  • Page 39: Wireless

    Chapter 4 Configure the Router 4. 3. Wireless 4. 3. 1. Wireless Settings 1. Visit http://tplinkwifi.net, and log in with the username and password you set for the router. 2. Go to Advanced > Wireless 2.4GHz > Wireless Settings. 3. Configure the basic settings for the wireless network and click Save. •...
  • Page 40 Chapter 4 Configure the Router • Enable Wireless Router Radio - The wireless radio of the router can be enabled or disabled to allow or deny wireless access. If enabled, the wireless clients will be able to access the router. •...
  • Page 41 Chapter 4 Configure the Router • Auth Type - This option should be chosen if the key type is WEP. It indicates the authorization type of the Root AP. • Password - If the AP your router is going to connect needs password, you need to fill the password in this blank.
  • Page 42 Chapter 4 Configure the Router 3. Within two minutes, press the WPS button on your client device. 4. A success message will appear on the WPS page if the client device has been successfully added to the router’s network. Method TWO: Enter the Client’s PIN 1.
  • Page 43 Chapter 4 Configure the Router Method Three: Enter the Router’s PIN 1. Keep the WPS Status as Enabled and get the Current PIN of the router. 2. Enter the router’s current PIN on your client device to join the router’s Wi-Fi network. 4.
  • Page 44 Chapter 4 Configure the Router • Disable Security - The wireless security function can be enabled or disabled. If disabled, wireless clients can connect to the router without a password. It’s strongly recommended to choose one of the following modes to enable security. •...
  • Page 45 Chapter 4 Configure the Router • Wireless Password - Enter ASCII or Hexadecimal characters. For Hexadecimal, the length should be between 8 and 64 characters; for ASCII, the length should be between 8 and 63 characters. • Group Key Update Period - Specify the group key update interval in seconds.
  • Page 46 Chapter 4 Configure the Router network by their MAC addresses. example, you want the wireless client A with the MAC address 00-0A-EB-B0-00-0B and the wireless client B with the MAC address 00-0A-EB-00-07-5F to access the router, but other wireless clients cannot access the router How can I 1.
  • Page 47 Chapter 4 Configure the Router 4. 3. 5. Wireless Advanced 1. Visit http://tplinkwifi.net, and log in with the username and password you set for the router. 2. Go to Advanced > Wireless 2.4GHz > Wireless Advanced. 3. Configure the advanced settings of your wireless network and click Save. Note: If you are not familiar with the setting items on this page, it’s strongly recommended to keep the provided default values;...
  • Page 48 Chapter 4 Configure the Router for listening to broadcast and multicast messages. When the Router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval.

  • Page 49: Dhcp

    Chapter 4 Configure the Router 4. 4. DHCP By default, the DHCP (Dynamic Host Configuration Protocol) Server is enabled and the router acts as a DHCP server; it dynamically assigns TCP/IP parameters to client devices from the IP Address Pool. You can change the settings of DHCP Server if necessary, and you can reserve LAN IP addresses for specified client devices.
  • Page 50 Chapter 4 Configure the Router • Default Gateway (Optional) - It is suggested to input the IP address of the LAN port of the router. The default value is 192.168.0.1. • Default Domain (Optional) - Input the domain name of your network. •...

  • Page 51: Forwarding

    Internet to initiatively communicate with devices on the local network, thus realizing some special functions. The TP-LINK router supports four forwarding rules. If two or more rules are set, the priority of implementation from high to low is Virtual Servers, Port Triggering, UPNP and DMZ.
  • Page 52 Chapter 4 Configure the Router Port 80 is used in HTTP service, port 21 in FTP service, port 25 in SMTP service and port 110 in POP3 service. Please verify the service port number before the configuration. I want to: Share my personal website I’ve built on local network with my friends through the Internet.
  • Page 53 Chapter 4 Configure the Router • If the service you want to use is not in the Common Service Port list, you can enter the corresponding parameters manually. You should verify the port number that the service needs. • You can add multiple virtual server rules if you want to provide several services in a router.
  • Page 54 Chapter 4 Configure the Router 4. Leave the status as Enabled and click Save. Note: • You can add multiple port triggering rules according to your network need. • The triggering ports can not be overlapped. • If the application you need is not listed in the Common Applications list, please enter the parameters manually.
  • Page 55 Chapter 4 Configure the Router 5. Click Save. Done! You’ve set your PC to a DMZ host and now you can make a team to game with other players. 4. 5. 4. UPnP The UPnP (Universal Plug and Play) protocol allows applications or host devices to automatically find the front-end NAT device and send request to it to open the corresponding ports.

  • Page 56: Security

    Chapter 4 Configure the Router 4. 6. Security This function allows you to protect your home network from cyber attacks and unauthorized users by implementing these network security functions. 4. 6. 1. Basic Security 1. Visit http://tplinkwifi.net, and log in with the username and password you set for the router.
  • Page 57 Chapter 4 Configure the Router • Firewall - A firewall protects your network from Internet attacks. • SPI Firewall - SPI (Stateful Packet Inspection, also known as dynamic packet filtering) helps to prevent cyber attacks by tracking more state per session. It validates that the traffic passing through the session conforms to the protocol.
  • Page 58 Chapter 4 Configure the Router • - It is recommended to enable Application Layer Gateway (ALG) because ALG allows customized Network Address Translation (NAT) traversal filters to be plugged into the gateway to support address and port translation for certain application layer “control/data”...
  • Page 59 Chapter 4 Configure the Router • Packets Statistics Interval (5~60) - The default value is 10. Select a value between 5 and 60 seconds from the drop-down list. The Packets Statistics Interval value indicates the time section of the packets statistics. The result of the statistics is used for analysis by SYN Flood, UDP Flood and ICMP-Flood.
  • Page 60 Chapter 4 Configure the Router • UDP-FLOOD Packets Threshold (5~3600) - The default value is 500. Enter a value between 5 ~ 3600. When the number of the current UPD-FLOOD packets is beyond the set value, the router will startup the blocking function immediately. •...
  • Page 61 Chapter 4 Configure the Router example, if you want to allow PCs with specific MAC addresses to access the router’s web management page locally from inside the network, please follow the instructions below: 1 ) Select Only the PCs listed can browse the built-in web pages to perform Administrator tasks.

  • Page 62: Parental Control

    For example, you want the children’s PC with the MAC address 00-11-22-33-44-AA can access www.tp-link.com on Saturday only while the parent PC with the MAC address 00-11-22-33-44-BB is without any restriction.
  • Page 63 Chapter 4 Configure the Router • Enter 00-11-22-33-44-AA in the MAC Address of Children’s PC field. • Enter Allow TP-LINK in the Website Description field. • Enter www.tp-link.com in the Allowed Website Name field. • Select Schedule_1 you created just now from the...

  • Page 64: Access Control

    (e.g. target_1) for the target in the Target Description field and enter the domain name, either the full name or the keywords (for example TP-LINK) in the Domain Name field. Note: Any domain name with keywords in it (e.g. www.tp-link.com) will be blocked or allowed.
  • Page 65 Chapter 4 Configure the Router 3 ) Click Save. 4. Go to Advanced > Access Control > Schedule and configure the schedule settings: 1 ) Click New. 2 ) Create a unique description (e.g. schedule_1) for the schedule in the Schedule Description field and set the day(s) and time period.

  • Page 66: Advanced Routing

    Chapter 4 Configure the Router from the target drop-down list; select schedule_1 from the schedule drop-down list. 3 ) Leave the status as Enabled and click Save. 6. Select Enable Internet Access Control to enable Access Control function. 7. Select Allow the packets specified by any enabled access control policy to pass through the Router as the default filter...
  • Page 67 Chapter 4 Configure the Router • Destination Network - The Destination Network is the address of the network or host that you want to assign to a static route. • Subnet Mask - The Subnet Mask determines which portion of an IP Address is the network portion, and which portion is the host portion.

  • Page 68: Bandwidth Control

    Chapter 4 Configure the Router • Destination Network - The Destination Network is the address of the network or host to which the static route is assigned. • Subnet Mask - The Subnet Mask determines which portion of an IP address is the network portion, and which portion is the host portion.
  • Page 69 Chapter 4 Configure the Router • Enable Bandwidth Control - Check this box so that the Bandwidth Control settings can take effect. • Line Type - Select the right type for you network connection. If you are not sure, please consult your ISP. •...

  • Page 70: Ip & Mac Binding

    Chapter 4 Configure the Router 3. Click Save. 4. 11. IP & MAC Binding IP & MAC Binding, namely, ARP (Address Resolution Protocol) Binding, is used to bind a network device’s IP address to its MAC address. This will prevent ARP spoofing and other ARP attacks by denying network access to a device with a matching IP address in the ARP list, but with an unrecognized MAC address.
  • Page 71 Chapter 4 Configure the Router 3. Click Save. ¾ To modify or delete an existing entry: 1. Find the desired entry in the table. 2. Click Modify Delete in the Modify column. ¾ To find an existing entry: 1. Click Find. 2.

  • Page 72: Dynamic Dns

    Chapter 4 Configure the Router • MAC Address - The MAC address of the listed computer on the LAN. • IP Address - The assigned IP address of the listed computer on the LAN. • Status - Indicates whether or not the MAC and IP addresses are bound. •...
  • Page 73 Chapter 4 Configure the Router ¾ To set up for DDNS, follow these instructions: 1. Enter the Domain Name received from your dynamic DNS service provider. 2. Enter the User Name for your DDNS account. 3. Enter the Password for your DDNS account. 4.
  • Page 74 Chapter 4 Configure the Router ¾ To set up for DDNS, follow these instructions: 1. Enter the User Name for your DDNS account. 2. Enter the Password for your DDNS account. 3. Enter the Domain Name you received from dynamic DNS service provider here. 4.

  • Page 75: Ipv6 Support

    Chapter 4 Configure the Router ¾ To set up for DDNS, follow these instructions: 1. Enter the User Name for your DDNS account. 2. Enter the Password for your DDNS account. 3. Enter the Domain Name you received from dynamic DNS service provider. 4.
  • Page 76 Chapter 4 Configure the Router • • Connection Type - The IPv6 connection way for WAN • IPv6 Address - The WAN IPv6 address • IPv6 Default Gateway - The router’s default gateway • Primary IPv6 DNS - The primary IPv6 DNS address •...
  • Page 77 Chapter 4 Configure the Router 3. Select the WAN Connection Type according to your ISP network topolopy: • SLAAC - Connections which use RADVD IPv6 address assignment. • DHCPv6 - Connections which use dynamic IPv6 address assignment. • Static IPv6 - Connections which use static IPv6 address assignment.
  • Page 78 Chapter 4 Configure the Router SLAAC • IPv6 Address - The IPv6 address assigned by your ISP dynamically. • IPv6 Address Prefix - Display the IPv6 prefix length in dotted-decimal notation provided by your ISP. • Default Gateway - Display the default gateway in colon-hexadecimal notation provided by your ISP.
  • Page 79 Chapter 4 Configure the Router If you get “Address not found error” when you access a web site, it is likely that your DNS servers are set up improperly. You should contact your ISP to get DNS server addresses. DHCPv6 •...
  • Page 80 Chapter 4 Configure the Router If you get “Address not found error” when you access a web site, it is likely that your DNS servers are set up improperly. You should contact your ISP to get DNS server addresses. Static IPv6 •...
  • Page 81 Chapter 4 Configure the Router PPPoEv6 • PPPoE Session - The PPP session type for IPv6 connection. There are two types: • Share with PPPoEv4 - The PPPoEv6 and PPPoEv4 use the same PPP session. • Create a new Session - The PPPoEv6 and PPPoEv4 use different PPP sessions.
  • Page 82 Chapter 4 Configure the Router • IPv6 Address - The IPv6 address assigned by your ISP dynamically. • Default Gateway - Display the default gateway in colon-hexadecimal notation provided by your ISP. • MTU (in bytes) - The normal MTU (Maximum Transmission Unit) value is 1492 Bytes.
  • Page 83 Chapter 4 Configure the Router Tunnel 6to4 • Address/Subnet Mask/Default Gateway - The IPv4 address/ subnet mask/ default gateway assigned, in dotted-decimal notation. • Tunnel Address - The 6to4 tunnel address created by the device to access the IPv6 network. •...

  • Page 84: System Tools

    Chapter 4 Configure the Router • Address Autoconfiguration Type RADVD (Router Advertisement Daemon) and DHCPv6 (Dynamic Host Configuration Protocol for IPv6) Server. • Site Prefix Configuration Type - The type of IPv6 address prefix. • Delegated - Get the IPv6 address prefix from the ISP automatically, and the device will delegate it to the LAN.
  • Page 85 Chapter 4 Configure the Router ¾ To set time manually: 1. Select your local time zone. 2. Enter the Date in Month/Day/Year format. 3. Enter the Time in Hour/Minute/Second format. 4. Click Save. ¾ To set time automatically: 1. Select your local time zone. 2.
  • Page 86 Chapter 4 Configure the Router Note: This setting will be used for some time-based functions such as firewall. You must specify your time zone once you login to the router successfully; otherwise, time-based functions will not take effect. 4. 14. 2. Diagnostic Diagnostic is used to test the connectivity between the router and the host or other network devices.
  • Page 87 Ping function. Option “Tracert Hops” is used for the Tracert function. 4. 14. 3. Firmware Upgrade TP-LINK is dedicated to improving and richening the product features, giving users a better network experience. We will release the latest firmware at the TP-LINK official website www.tp-link.com.
  • Page 88 Chapter 4 Configure the Router 5. Wait a few minutes for the upgrade and reboot to complete. 4. 14. 4. Factory Defaults 1. Visit http://tplinkwifi.net, and log in with the username and password you set for the router. 2. Go to Advanced >...
  • Page 89 Chapter 4 Configure the Router ¾ To backup configuration settings: Click Backup to save a copy of the current settings in your local computer. A “.bin“ file of the current settings will be stored in your computer. ¾ To restore configuration settings: 1.
  • Page 90 Chapter 4 Configure the Router It is strongly recommended that you change the default username and password of the router, for all users that try to access the router’s web-based utility or Quick Setup will be prompted for the router’s username and password. Note: The new username and password must not exceed 15 characters and not include any spacing.
  • Page 91 Chapter 4 Configure the Router • Auto Mail Feature - Indicates whether the auto mail feature is enabled or not. • Mail Settings - Set the receiving and sending mailbox address, server address, validation information as well as the timetable for Auto Mail Feature.
  • Page 92 Chapter 4 Configure the Router • From - Your mail box address. The router will connect it to send logs. • - Recipient’s mail address. The destination mailbox which will receive logs. • SMTP Server - Your smtp server. It corresponds with the mailbox filled in the From field.
  • Page 93 Chapter 4 Configure the Router • Refresh Refresh the page to show the latest log list. • Save Log - Click to save all the logs in a txt file. • Mail Log - Click to send an email of current logs manually according to the address and validation information set in Mail Settings.
  • Page 94 Chapter 4 Configure the Router • Click Delete All to delete all entries in the table. Statistics Table IP/MAC Address The IP and MAC address are displayed with related statistics. The total number of packets received and transmitted by the router. Packets Total The total number of bytes received and transmitted by the router.
  • Page 95 Chapter 4 Configure the Router...

  • Page 96: Faq

    Q1. How do I configure the router to access Internet by ADSL users? 1. Configure the ADSL Modem configured in RFC1483 bridge model. 2. Connect the Ethernet cable from your ADSL Modem to the Internet port on the router. The telephone cord plugs into the Line port of the ADSL Modem. 3.
  • Page 97 and your PC’s MAC address will fill in the “WAN MAC Address” field. Or else, type the MAC Address into the “WAN MAC Address” field. The format for the MAC Address is XX-XX-XX-XX-XX-XX. Then click the “Save” button. It will take effect after rebooting. Q3.
  • Page 98 Note: Your opposite side should call your WAN IP, which is displayed on the Status page. 4. How to enable DMZ Host: Log in to the router, click the Forwarding menu on the left of your browser, and click DMZ0 submenu.
  • Page 99 Q4. I want to build a WEB Server on the LAN, what should I do? 1. Because the WEB Server port 80 will interfere with the WEB management port 80 on the router, you must change the WEB management port number to avoid interference.
  • Page 100 Note: If the above configuration takes effect, you can visit and configure the router by typing http://192.168.0.1:88 (the router’s LAN IP address: Web Management Port) in the address field of the Web browser. If the LAN IP of the modem connected with your router is 192.168.0.x, the default LAN IP of the router will automatically switch from 192.168.0.1 to 192.168.1.1 to avoid IP conflict;...
  • Page 101 3. Make sure the wireless stations have right KEY for encryption when the router is encrypted. 4. If the wireless connection is ready, but you can’t access the router, check the IP Address of your wireless stations.
