TP-Link TL-MR3420 Quick Installation Manual

Quick
Installation Guide

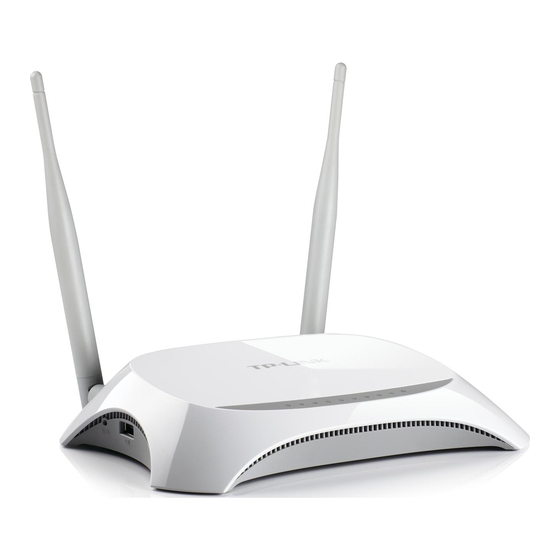

3G/4G Wireless N Router
TL-MR3420
7106506269 REV3.0.0
Plug and Play via 3G/4G USB Modem
Power Adapter
3
Wait for 1-2 minutes and check the status of the following LEDs.
Power Wi-Fi Internet
On On Green
Note:
1. If the Internet LED ( ) is not on or is amber, please refer to
connection.
2. If the Wi-Fi LED ( ) is o , press the Wi-Fi button on the rear panel for 3 seconds and then
check the LED again.
Configuring your 3G/4G connection
1. Connect your device to the router's LAN (1 - 4) port via an Ethernet cable or
use the default SSID and password printed on the bottom of the router to
join the wireless network.
2. Launch a web browser and enter http://tplinkwifi.net in the address bar.
Use admin for both username and password, and then click Login.
Note: If the login window does not appear, please refer to FAQ > Q3.
3. Select your Time zone and click Next.
POWER ON/OFF WAN
1
Press to turn on the router.
USB
On
Configuring your 3G/4G
Get Started
Follow the speci c instructions in this guide to connect to the
Internet and enjoy.
> Refer to Plug and Play via 3G/4G USB Modem to share the Internet
through a 3G/4G USB modem.
> Refer to Connect to DSL/Cable/Satellite Modem to share the
Internet through a DSL/Cable/Satellite modem or an Ethernet cable
connection.
The router can also be configured with a primary WAN and a 3G/4G
USB modem as a backup (secondary) solution to ensure "always-on"
Internet connectivity.
For details, refer to the User Guide at www.tp-link.com.
Router
WIFI
WPS/
1 2 3 4
RESET
Enjoy your Internet!
Wired connection:
via Ethernet cables.
Wireless connection:
bottom of the router to join the wireless network.
Wired
Tips:
1. You can turn on/o the Wi-Fi as needed by pressing the Wi-Fi button
3 seconds.
2. You can log into the web management page http://tplinkwifi.net to change the SSID and
password.
4. Select 3G/4G Only and click Next.
5. Select your Region and Mobile ISP, and then click Next.
Note: If your ISP is not listed, select the Set Dial number, APN, Username and Password
manually option and enter the 3G/4G parameters provided by your Internet Service
Provider (ISP).
6. Continue to follow the Quick Setup to complete the configuration.
Note: If you have changed the default SSID (wireless network name) and password during
the configuration, connect to the router with the new SSID and password.
3G/4G USB Modem
USB
2
Plug in a 3G/4G USB modem with a
SIM/UIM card.
Connect your devices to the router's LAN (1 - 4) ports
Use the default SSID and password printed on the
WIFI
POWER ON/OFF WPS/RESET
Router Wireless
on the rear panel for
