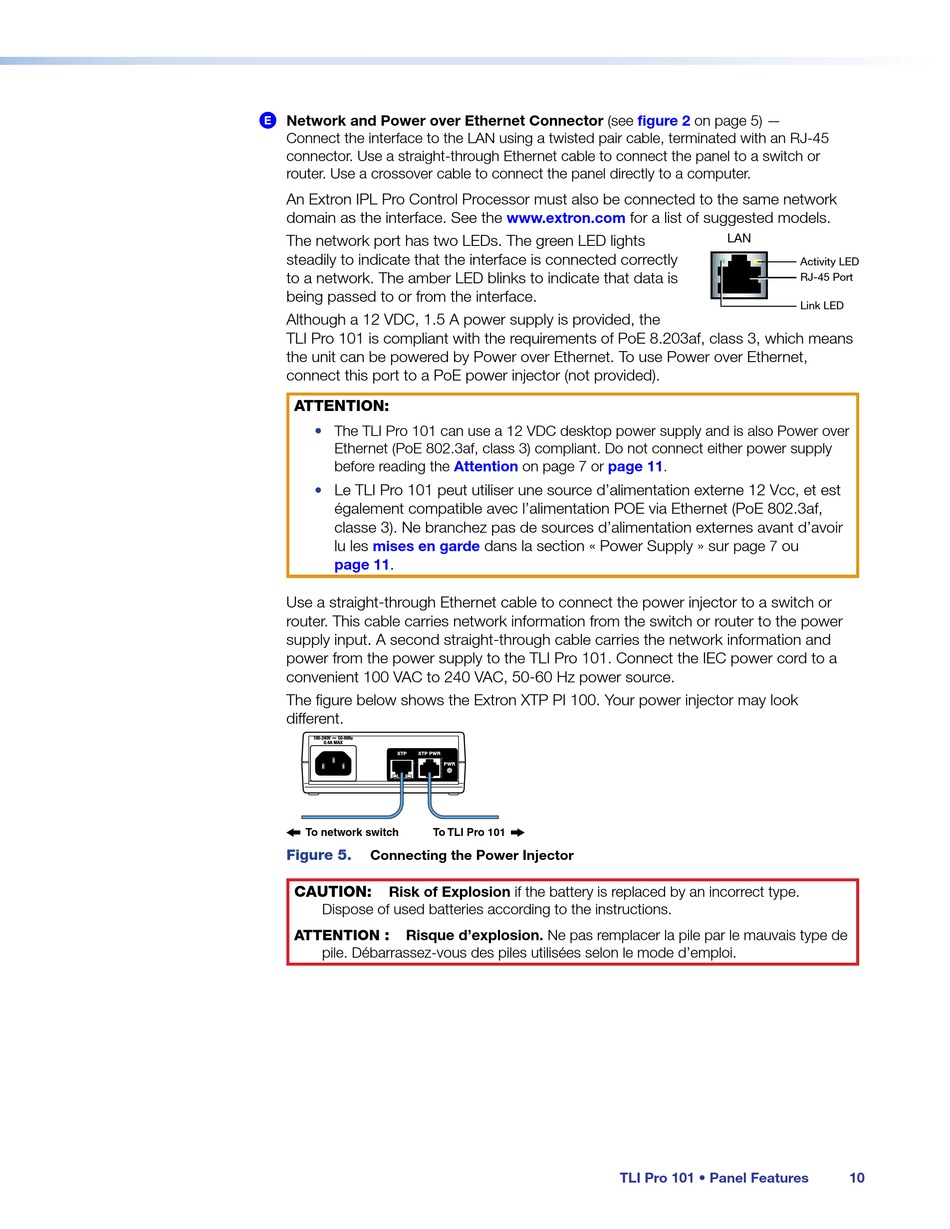

Network and Power over Ethernet Connector (see
E
Connect the interface to the LAN using a twisted pair cable, terminated with an RJ-45
connector. Use a straight-through Ethernet cable to connect the panel to a switch or
router. Use a crossover cable to connect the panel directly to a computer.
An Extron IPL Pro Control Processor must also be connected to the same network
domain as the interface. See the
The network port has two LEDs. The green LED lights
steadily to indicate that the interface is connected correctly
to a network. The amber LED blinks to indicate that data is
being passed to or from the interface.
Although a 12 VDC, 1.5 A power supply is provided, the
TLI Pro 101 is compliant with the requirements of PoE 8.203af, class 3, which means
the unit can be powered by Power over Ethernet. To use Power over Ethernet,
connect this port to a PoE power injector (not provided).
ATTENTION:
• The TLI Pro 101 can use a 12 VDC desktop power supply and is also Power over
Ethernet (PoE 802.3af, class 3) compliant. Do not connect either power supply
before reading the
Le TLI Pro 101 peut utiliser une source d'alimentation externe 12 Vcc, et est
•
également compatible avec l'alimentation POE via Ethernet (PoE 802.3af,
classe 3). Ne branchez pas de sources d'alimentation externes avant d'avoir
lu les
mises en garde
page 11 .
Use a straight-through Ethernet cable to connect the power injector to a switch or
router. This cable carries network information from the switch or router to the power
supply input. A second straight-through cable carries the network information and
power from the power supply to the TLI Pro 101. Connect the IEC power cord to a
convenient 100 VAC to 240 VAC, 50-60 Hz power source.
The figure below shows the Extron XTP PI 100. Your power injector may look
different.
~
100-240V 50-60Hz
0.4A MAX
XTP XTP PWR
To network switch To TLI Pro 101
Figure 5. Connecting the Power Injector
CAUTION: Risk of Explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
:
ATTENTION Risque d'explosion. Ne pas remplacer la pile par le mauvais type de
pile. Débarrassez-vous des piles utilisées selon le mode d'emploi.
www.extron.com
Attention on page 7 or page
dans la section « Power Supply » sur page 7 ou
PWR
TLI Pro 101 • Panel Features
figure 2 on page 5) —
for a list of suggested models.
LAN
Activity LED
RJ-45 Port
Link LED
