Intel® Server System M20MYP1UR System Integration and Service Guide
3.2.4

Riser Card Bracket Assmebly Removal

1. Disconnect all cables that may be attached to any parts of the add-in card.
2. Grasp the riser card bracket assembly with both hands and carefully lift it up to remove it from the
system making sure the three mounting tabs in the back of the riser card bracket disengage from the
chassis.
3.2.5

PCIe* Add-in Card Removal from Riser Card Bracket

1. Remove the fastener screw (see Letter A) and remove the add-in card from the PCIe* slot in the riser card
(see Letter B).
2. Insert the provided filler panel on the add-in card mounting bracket (see Letter C).
3. Using the fastener screw, secure the filler panel to the riser card bracket (see Letter D).
Refer to Section 3.2.3 for instructions on how to install the riser card bracket assembly.
38

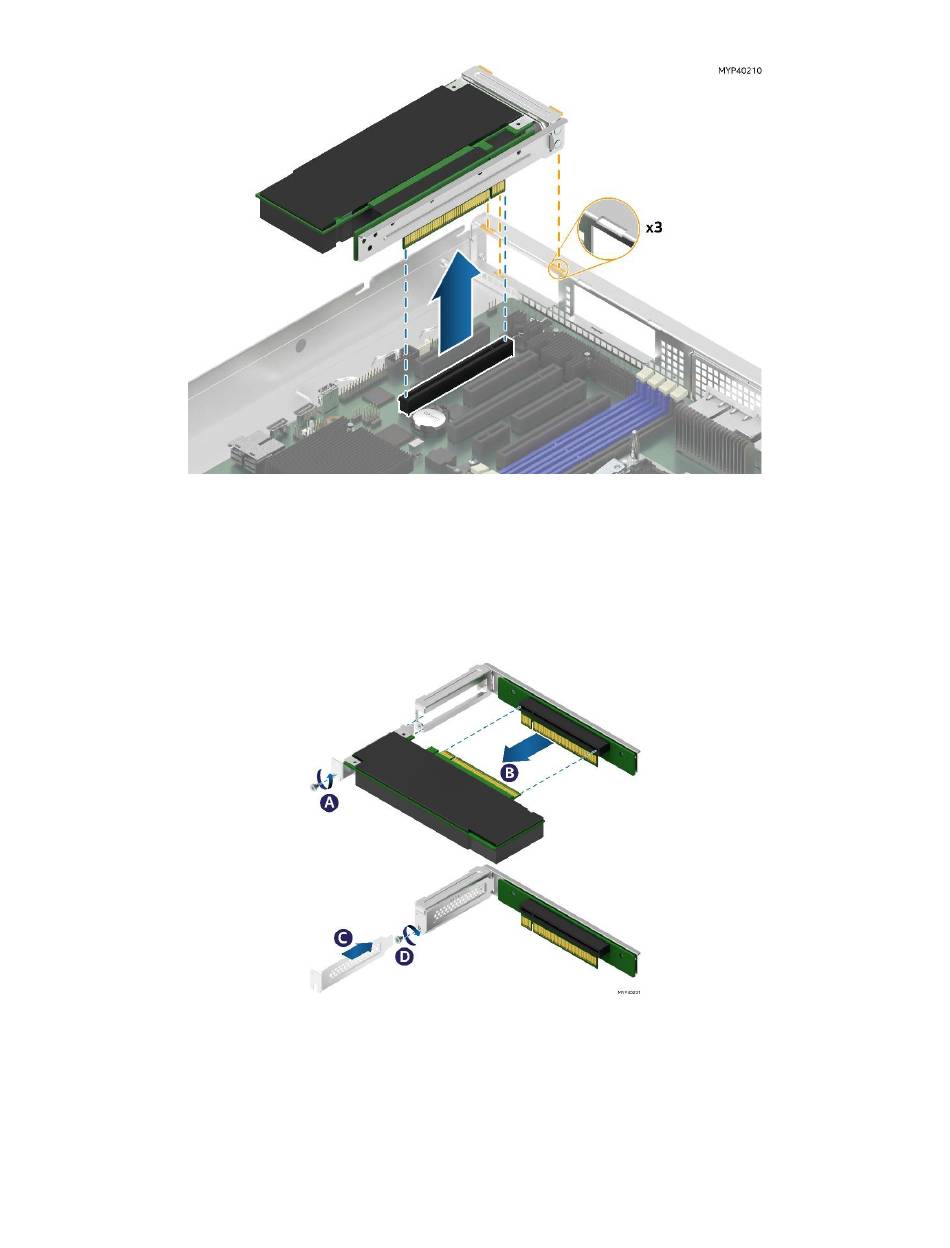

Figure 38. Riser card bracket assembly removal

Figure 39. Removing PCIe* add-In card from riser card bracket
