Invacare® Modulite

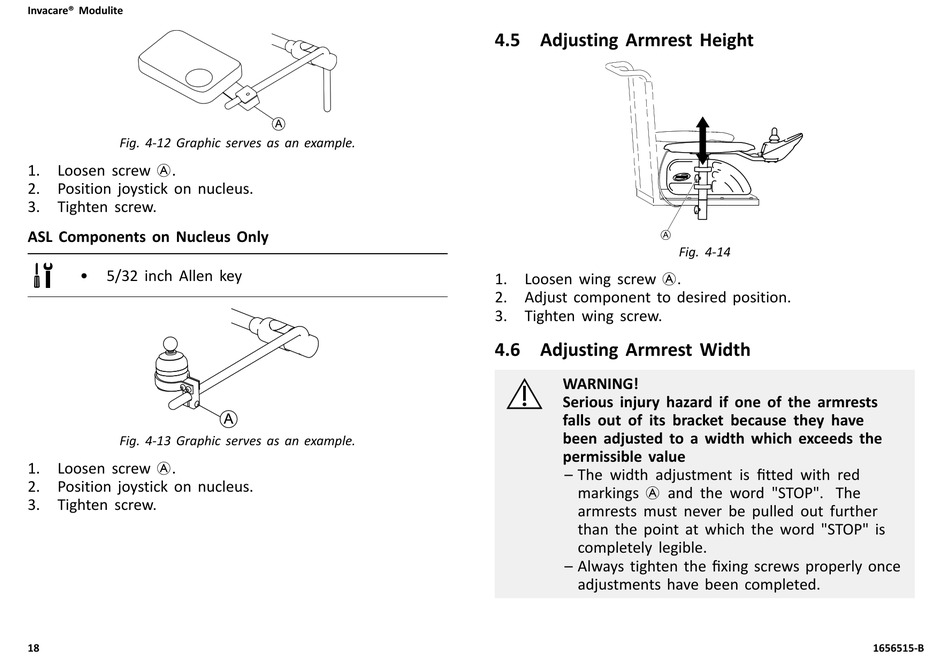

Fig. 4-12 Graphic serves as an example.
1. Loosen screw A.
2. Position joystick on nucleus.
3. Tighten screw.
ASL Components on Nucleus Only
• 5/32 inch Allen key
Fig. 4-13 Graphic serves as an example.
1. Loosen screw A.
2. Position joystick on nucleus.
3. Tighten screw.
18

4.5 Adjusting Armrest Height

1. Loosen wing screw A.
2. Adjust component to desired position.
3. Tighten wing screw.

4.6 Adjusting Armrest Width

WARNING!
Serious injury hazard if one of the armrests
falls out of its bracket because they have
been adjusted to a width which exceeds the
permissible value
– The width adjustment is fitted with red
markings A and the word "STOP". The
armrests must never be pulled out further
than the point at which the word "STOP" is
completely legible.
– Always tighten the fixing screws properly once
adjustments have been completed.
Fig. 4-14
1656515-B
