4.16 Adjusting Seat Width

The telescopic seat support can be adjusted in four stages.
The seat width can thus be adjusted together with the
adjustable seat plate or the adjustable sling seat.
The description of how the width is adjusted is contained
in the service manual for this mobility device. The service
manual can be ordered from Invacare. However, they
contain instructions for specially trained service technicians
and describe operations that are not intended for the end
user.

4.17 Adjusting Seat Depth

The seat depth has a major influence on the selection
of the centre of gravity of the seat. This impacts
its dynamic stability. If you make a major change
to the seat depth the centre of gravity of the seat
must also be adjusted. See "Adjusting the centre of
gravity of the seat" in the service manual for this
mobility device. The service manual can be ordered
from Invacare. However, they contain instructions for
specially trained technicians and describe operations
that are not intended for the end user.
The numbers on the scale on the seat serve as a
guide. They do not stipulate any dimensions such as
seat depth in centimeters.
• 6 mm Allen key
28
1. Loosen bottom backrest screws A on both sides.
Do not remove screws A.
2. Adjust component to desired position.
You can adjust seat depth steplessly. Use scale B on
seat as a guide.
Ensure that same seat depth is set on both sides.
3. Tighten screws.

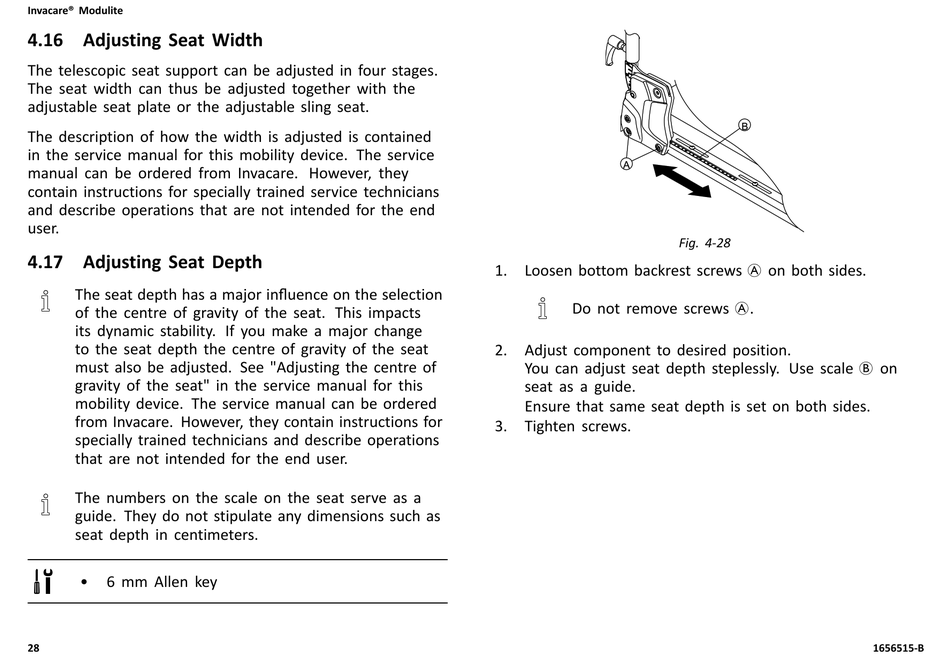

Fig. 4-28
