3.

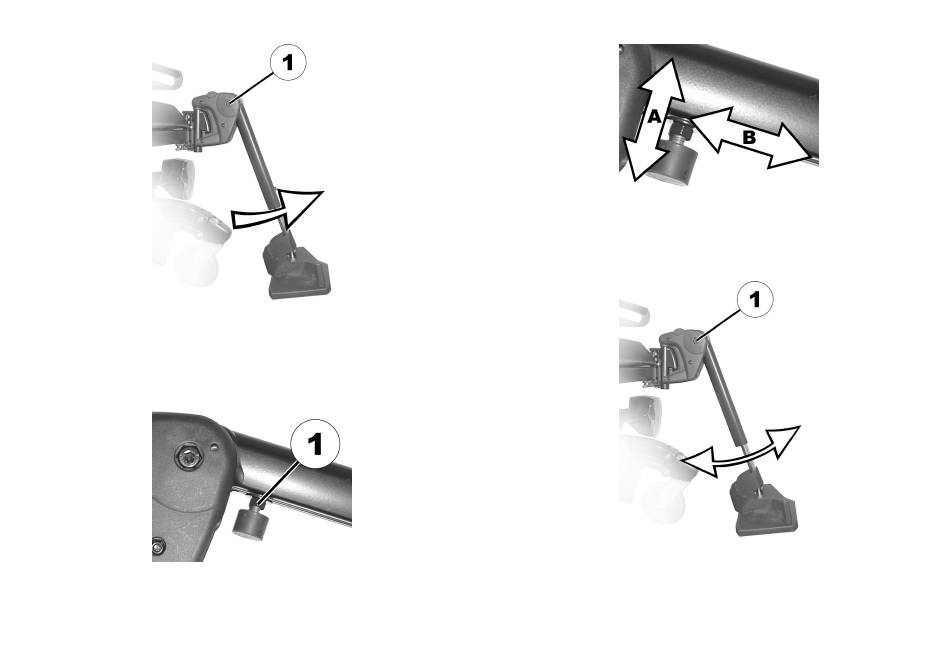

Use the Allen key to loosen the screw (1) and swivel the
footrest upward in order to access the rubber stop.
4.
Use the open-ended spanner to loosen the counternut
(1).
1656515-B
Fig. 4-54
Fig. 4-55
5.
Move the rubber stop to the desired position.
6. Re-tighten the counternut.
7.
Move the footrest to the desired position.
8. Re-tighten the screw.
Fig. 4-56
Fig. 4-57
