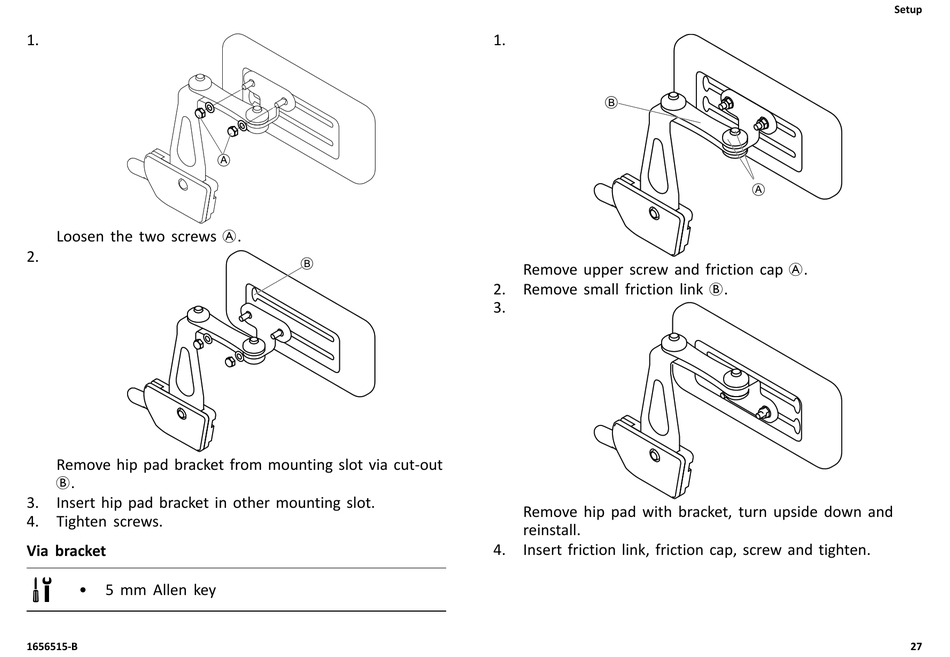

1.
Loosen the two screws A.
2.
Remove hip pad bracket from mounting slot via cut-out
B.
3. Insert hip pad bracket in other mounting slot.
4. Tighten screws.
Via bracket
• 5 mm Allen key
1656515-B
1.
Remove upper screw and friction cap A.
2. Remove small friction link B.
3.
Remove hip pad with bracket, turn upside down and
reinstall.
4. Insert friction link, friction cap, screw and tighten.
