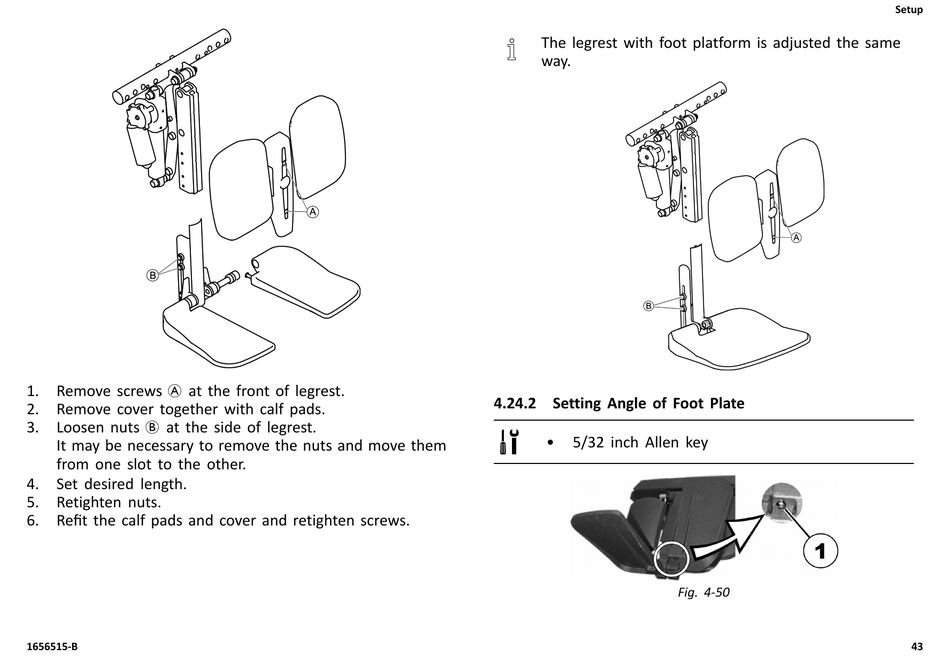

1. Remove screws A at the front of legrest.
2. Remove cover together with calf pads.
3. Loosen nuts B at the side of legrest.
It may be necessary to remove the nuts and move them
from one slot to the other.
4. Set desired length.
5. Retighten nuts.
6. Refit the calf pads and cover and retighten screws.
1656515-B
The legrest with foot platform is adjusted the same
way.

4.24.2 Setting Angle of Foot Plate

• 5/32 inch Allen key
Fig. 4-50
