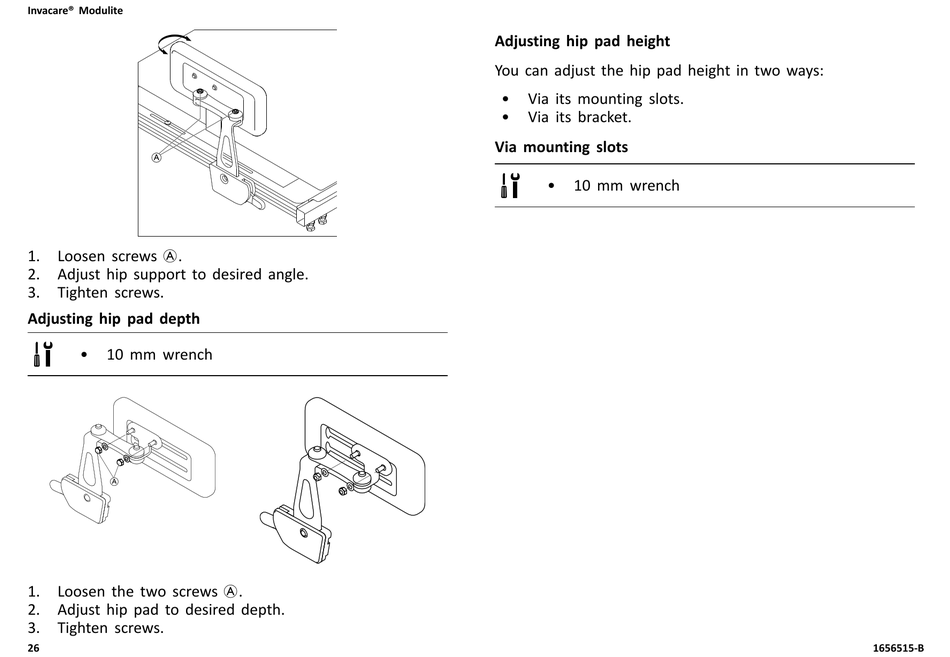

Invacare Modulite User Manual page 26

Invacare® Modulite
1. Loosen screws A.
2. Adjust hip support to desired angle.
3. Tighten screws.
Adjusting hip pad depth
• 10 mm wrench
1. Loosen the two screws A.
2. Adjust hip pad to desired depth.
3. Tighten screws.
26
Adjusting hip pad height
You can adjust the hip pad height in two ways:
• Via its mounting slots.
• Via its bracket.
Via mounting slots
• 10 mm wrench
1656515-B
