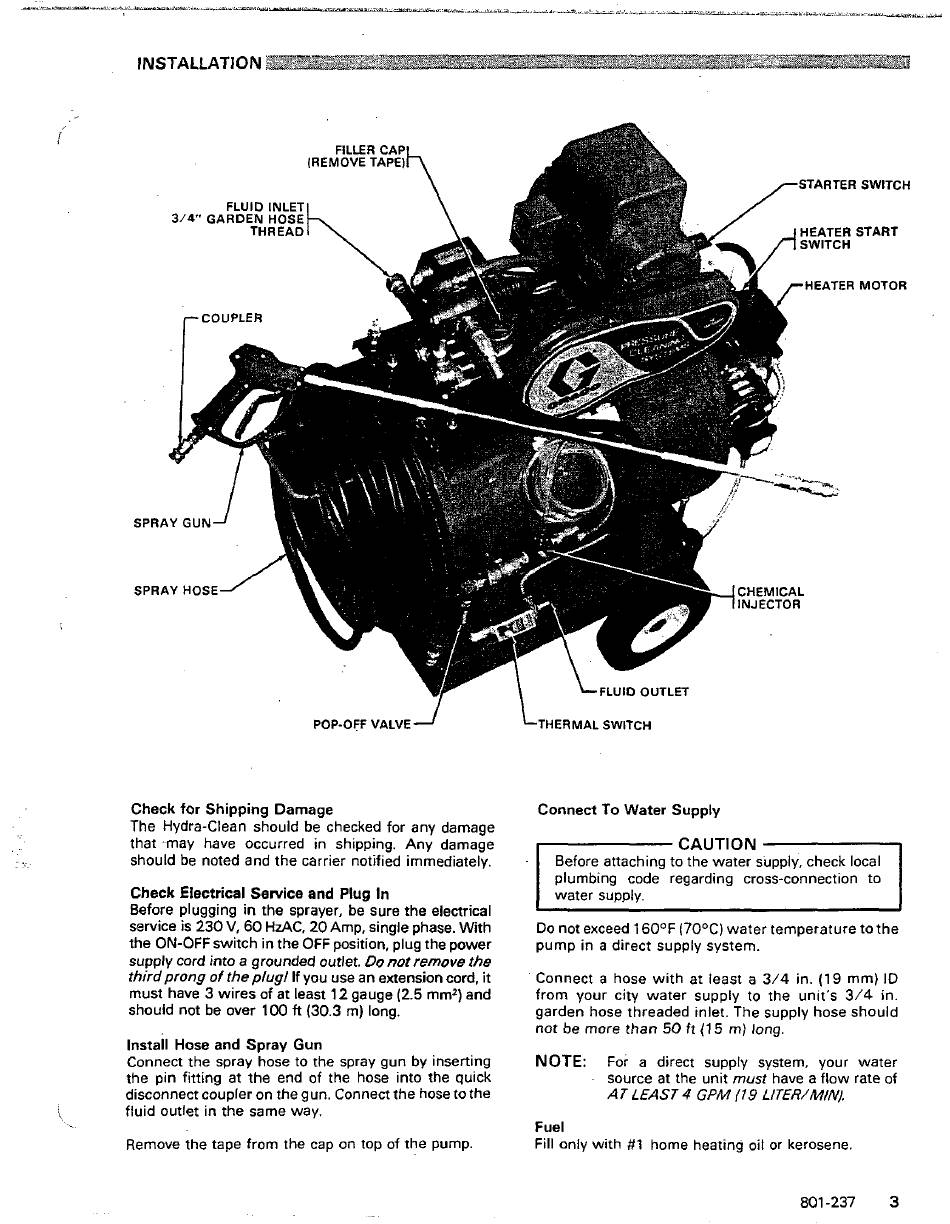

INSTALLATION
i
SPR
SPR
Check for Shipping Damage
The Hydra-Clean should be checked for any damage
that -may have occurred
in
shipping, Any damage
should be noted and the carrier notified immediately.
Before plugging
in
the sprayer, be sure the electrical
Check Electrical Service and Plug
In
the ON-OFF switch
in the OFF position, plug the power
Service is
230
V, 60 HAC,
20
Amp, single phase. With
supply cord into a grounded outlet.
Do
not
remove
the
thirdprong
of
the plugl
If you use an extension cord, it
should not be over 100
ft (30.3 m) long.
must have
3
wires of at least
12
gauge
(2.5 mmz) and
Install Hose and Spray Gun
the pin fitting at the
end of the hose into the quick
Connect the spray hose to the spray gun by inserting
disconnect coupler on the gun. Connect the hose to the
i
fluid outlet in the same way.
Remove the tape from the cap on top of the pump.
I
SWITCH
START
MOTOR
POP-OFF
VALVE
- I
LFLUID OUTLET
THERMAL SWITCH
Connect
To
Water Supply
CAUTION
Before attaching to the water supply, check local
water
supply.
plumbing code regarding cross-connection
to
Do not exceed 160°F
(70°C)
water temperature
to
the
pump
in a direct supply system.
Connect a hose with at least a 3 / 4 in.
(19
mm) ID
from your city water
supply to the unit's
3/4 in.
garden hose threaded inlet. The supply hose should
not
be
more than 50
ft
(15
r n )
long.
NOTE:
For a direct
supply
system, your water
. . .
.
source at the unit
must
have a flow rate of
AT LEAST 4 GPM
119 LITER/MINJ.
Fuel
Fill only with
#l
home heating oil or kerosene
801-237
3
