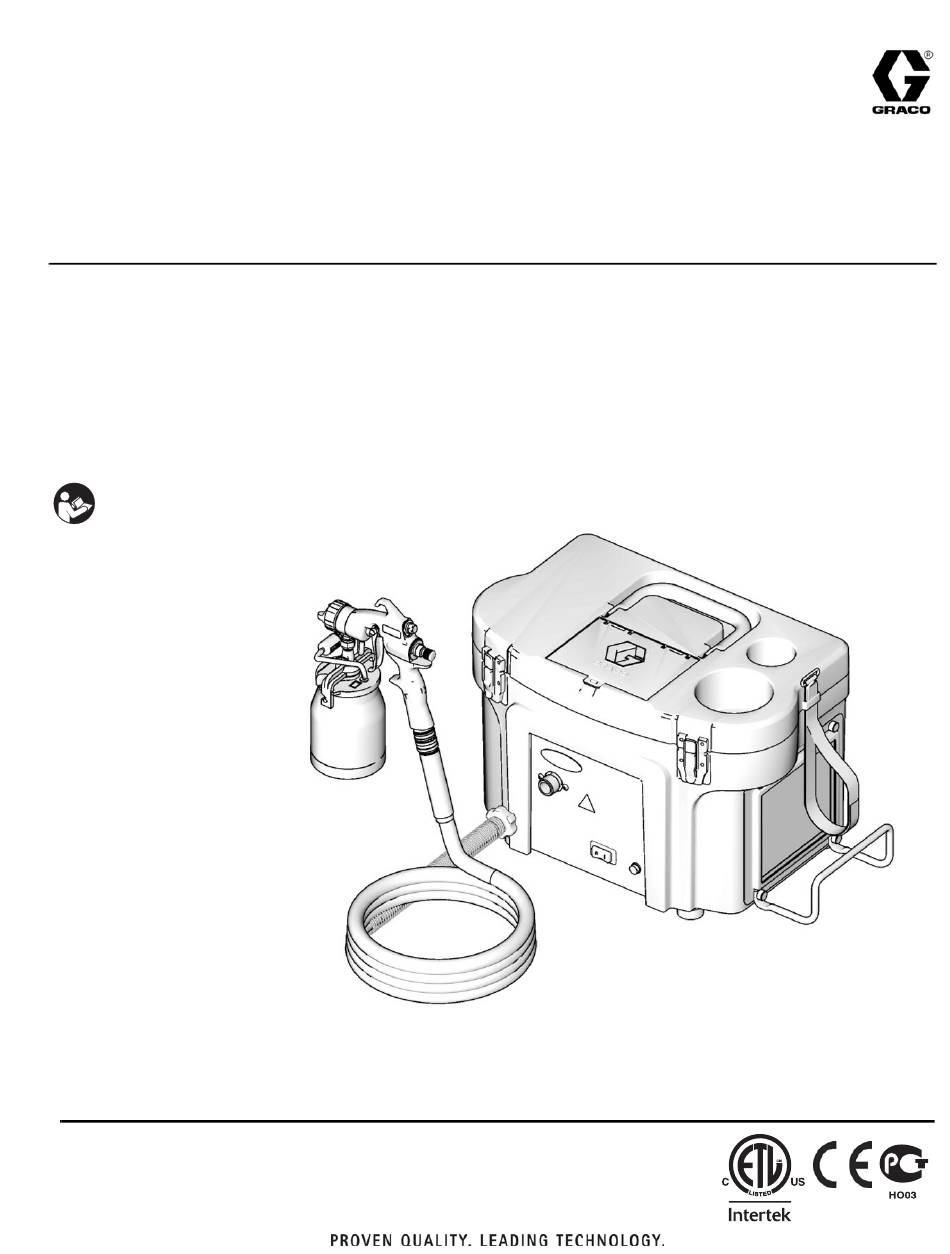

Operation, Repair, Parts
FinishPro ™ HVLP 7.0/9.0/9.5
For portable spray applications of fine finish coatings. For professional use only. Not
approved for use in European explosive atmosphere locations.
120 Vac Models: 256847, 256848, 256849
240 Vac Models: 256851, 256852, 256853
Maximum Working Pressure: 10 psi (0,07 MPa, 0.7 bar)
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
US Patent No.: 7,950,598, 7,971,806
313406J
EN
ti12834a
Advertisement
Table of Contents
Related Manuals for Graco FinishPro HVLP 7.0
Summary of Contents for Graco FinishPro HVLP 7.0
- Page 1 Operation, Repair, Parts FinishPro ™ HVLP 7.0/9.0/9.5 313406J For portable spray applications of fine finish coatings. For professional use only. Not approved for use in European explosive atmosphere locations. 120 Vac Models: 256847, 256848, 256849 240 Vac Models: 256851, 256852, 256853 Maximum Working Pressure: 10 psi (0,07 MPa, 0.7 bar) Important Safety Instructions Read all warnings and instructions in this...
-
Page 2: Table Of Contents
Troubleshooting ......9 Graco Standard Warranty ....18 Repair . -
Page 3: Warnings
Warnings Warnings The following warnings are for the setup, use, grounding, maintenance and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risks. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applica- ble. - Page 4 Do not kink or over-bend the hose. • Do not expose the hose to temperatures or to pressures in excess of those specified by Graco. • Do not use the hose as a strength member to pull or lift the equipment.
-
Page 5: Grounding And Electric Requirements
Warnings Grounding and Electric Requirements This equipment requires a 120 Vac, 60 Hz, 15A circuit, Use 3-wire, 12 awg, 50 ft (15 m) or shorter, extension with a grounding receptacle. cords with ground prong. Do not alter the ground prong or use an adapter. Sprayer Components Table Sprayer Model... -
Page 6: Component Identification
R Storage tray Provides extra storage ter and main) gun and motor Spray gun ™ Cleaning cup Provides storage for cleaning Graco EDGE spray gun holder ™ with EasyGlide trigger EDGE spray gun Provides external storage for Air filter indicator... -
Page 7: Setup
Setup Setup Fluid Preparation Pressure Relief Procedure • Strain fluids before you spray. This includes color, reducers and hardeners. • Use a slower drying reducer or thinner to compen- sate for the faster drying time caused by the warm air of the turbine. -
Page 8: Maintenance
Maintenance Maintenance The sprayer system is lifetime lubricated. The only main- • Tap filter gently on flat surface, dirty side down. tenance required is filter cleaning and replacement. • Direct, compressed air (100 psi(7 bar, 70 MPa) maximum) through filter panel in the opposite direction of arrows on side of filter (from the clean Filter Operation side to the dirty side. -
Page 9: Troubleshooting
Extension cord must be 3-wire, 12 AWG, 50 ft (15 m) or shorter. Hose too long Replace with shorter hose. See Graco Fine Finish Solutions brochure 300564, for hose part numbers. Circuit breaker trips Filter clogged Clean filter and replace as necessary High ambient temperature Move sprayer to cooler area. -
Page 10: Repair
Repair Repair Sprayer Disassembly 3. Place sprayer upside down. Remove four screws (77) from sprayer base plate (2). To avoid injury, including electric shock turn off sprayer and unplug power cord before performing any repair procedures on the turbine. 1. Remove four thumbscrews (18) and remove filter retainer (17), prefilter (20) and main filter (16). -
Page 11: Motor Replacement
Motor Replacement Motor Replacement Refer to Parts Drawing, page 14. 6. Rotate motor (24) from outlet fitting (18) and lift up from spacers (23). 1. Follow Sprayer Disassembly procedure, page 10. 7. Install new gaskets (21, 23, 24, 59 and 60). 2. -
Page 12: Wiring Diagrams
Wiring Diagrams Wiring Diagrams Ref Part Description 244273 Conductor, BK 15W486 Conductor, BK 15W485 Conductor, G/Y GROUND 15W484 Conductor, W 257333 Conductor, W, BK, G 240256 Conductor, W 114064 Plug, inlet 114403 Circuit Breaker, 15A 15V923 Plug, outlet, CompPack 10 114280 Light, indicator, 120V 11 114293 Switch, rocker 12 114279 Sensor, pressure ti12765a... -
Page 13: Technical Data
Technical Data Technical Data 120 Vac, 60 Hz Maximum Hose Length Sprayer Weight Total Weight Sound Sound Ampere Watts ft (m) lb (kg) lb (kg) Power* Pressure* 11.0 40 (12,2) 28 (12,7) 38 (17,2) 94.9 dBa 82 dBa FinishPro 7.0 11.0 60 (18,3) 29 (13,2) -
Page 14: Parts
Parts Parts Models 256847, 256848, 256849, 256851, 256852, 256853 ti12835a 313406J... -
Page 15: Parts List
Parts List Parts List Models 256847, 256848, 256849, 256851, 256852, 256853 Part Description Part Description 15V923 PLUG, inlet 277934 BOX, HVLP 62 ▲ 15W100 LABEL, safety 24B055 COVER, HVLP, includes 6 63 ▲ 15W223 LABEL, safety 15V791 HANDLE 15W359 SCREW, mach, hex, washer hd 15V771 LID, accessory 15W635 LABEL, FinishPro, HVLP 15V926 LATCH... -
Page 16: Parts Drawing
Parts Drawing Parts Drawing Models 256847, 256848, 256849, 256851, 256852, 256853 108, 111 ti12836c 313406J... -
Page 17: Parts List
Parts List Parts List Models 256847, 256848, 256849, 256851, 256852, 256853 Part Description Part Description 15W150 FinishPro 9.5 257066 PLATE, base, turbine, painted 192810 HOSE, air 114279 SENSOR, pressure 192780 SPACER, turbine 156698 O-RING 111593 SCREW, grounding TURBINE* + 102063 WASHER, lock, ext 15Y812 FinishPro 7.0, 3-stage, 120V SCREW, mach, torx pan hd 15Y813 FinishPro 9.0, 4-stage, 120V... -
Page 18: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
