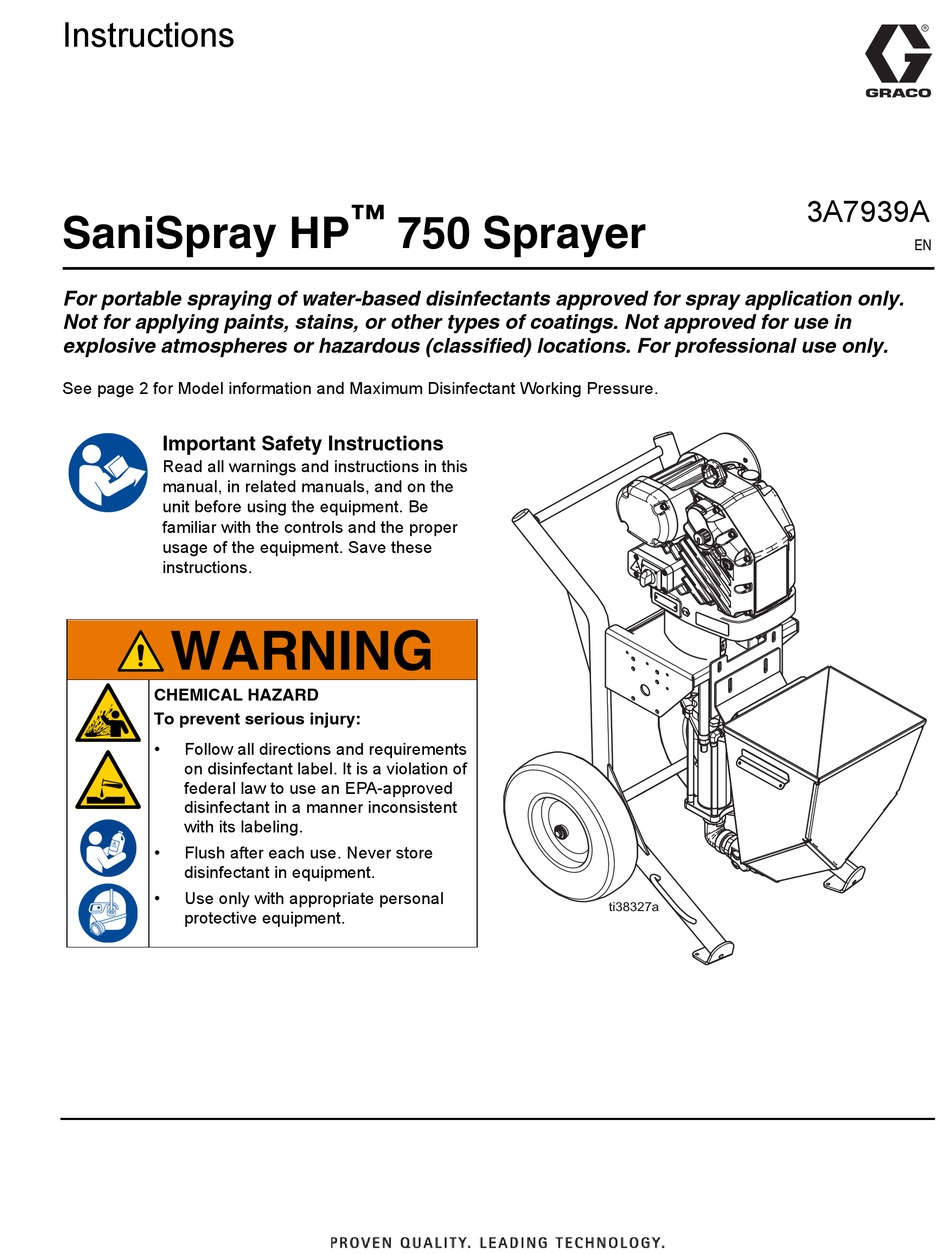

SaniSpray HP
For portable spraying of water-based disinfectants approved for spray application only.
Not for applying paints, stains, or other types of coatings. Not approved for use in
explosive atmospheres or hazardous (classified) locations. For professional use only.
See page 2 for Model information and Maximum Disinfectant Working Pressure.
Important Safety Instructions
Read all warnings and instructions in this
manual, in related manuals, and on the
unit before using the equipment. Be
familiar with the controls and the proper
usage of the equipment. Save these
instructions.
WARNING
CHEMICAL HAZARD
To prevent serious injury:
•
Follow all directions and requirements
on disinfectant label. It is a violation of
federal law to use an EPA-approved
disinfectant in a manner inconsistent
with its labeling.
•
Flush after each use. Never store
disinfectant in equipment.
•
Use only with appropriate personal
protective equipment.
™
750 Sprayer
3A7939A
EN
