10. Plug in the two ribbon cables from the DDS unit into the Main board
before fitting the Main board to the chassis.
11. Replace all screws and tighten.
12. Plug in all the cables, re-fit the CPU/Logic unit etc.
13. Replace the top cover. Don't forget to plug in the speaker.

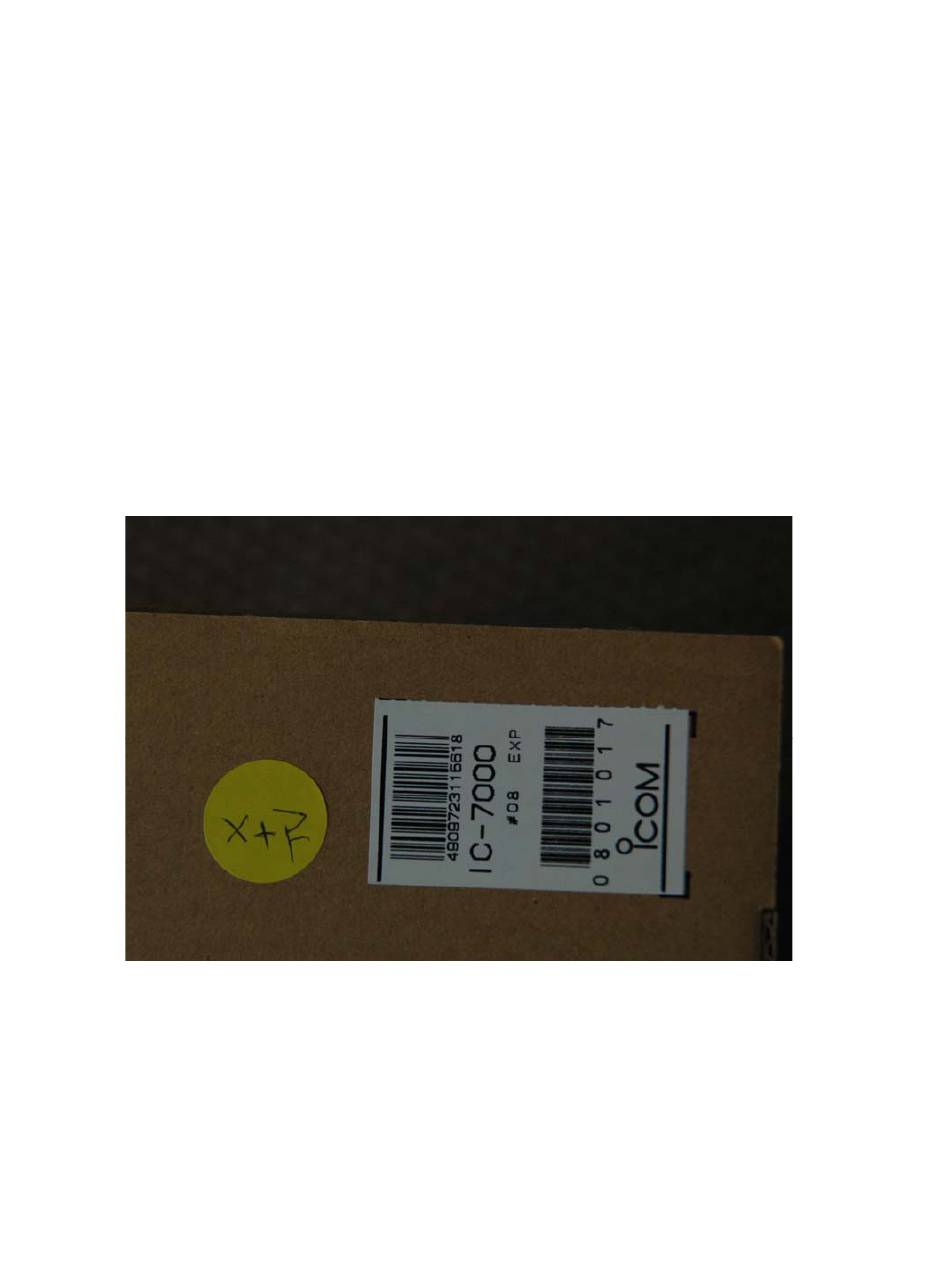

Label on IC 7000 box #8 Export model
