OPERATION
Connect the power supply to the radio and couple a TV antenna terminated in a PL259 plug
to the VHF antenna socket of the radio. (Right hand side of the radio as seen from the front
looking towards the back).
When you switch the power on a warning message will appear on the blue screen. Press Yes
that you acknowledge the warning.
The radio reverts to the original frequency you had the radio on before embarking on the
modification.
To activate the TV receiver push and hold in the set button (Volume control situated at the
top left hand side of the radio). If the TV receiver does not come on, push the set button
(volume control) once again. The TV receiver will now come on.
It is advisable to switch on the preamplifier.
By using the Band up and down buttons you can change TV channels, select a channel.

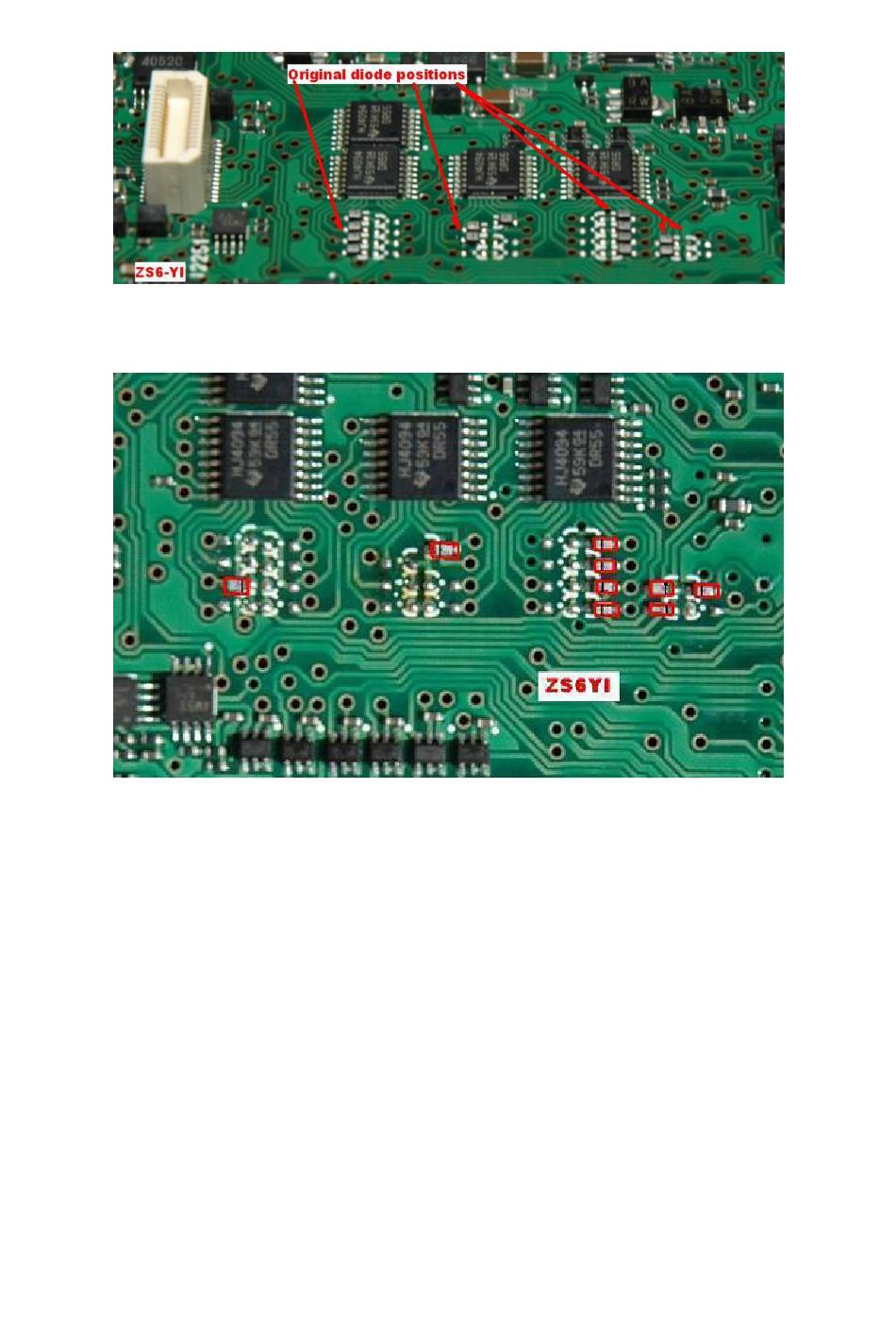

Original Diode Positions
Step 7
New Diode positions
Step 8
