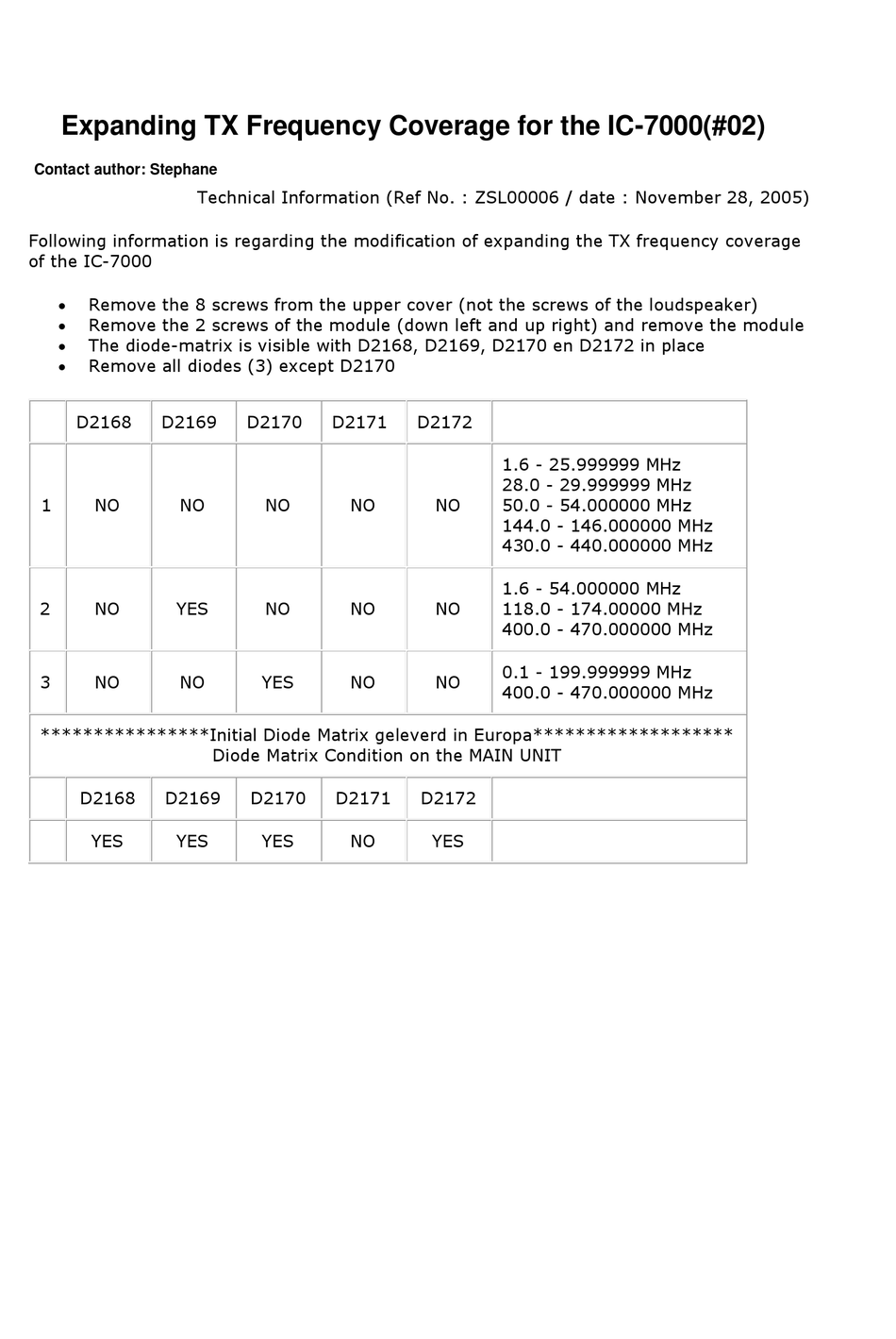

Expanding TX Frequency Coverage for the IC-7000(#02)
Contact author: Stephane
Following information is regarding the modification of expanding the TX frequency coverage
of the IC-7000
 Remove the 8 screws from the upper cover (not the screws of the loudspeaker)
 Remove the 2 screws of the module (down left and up right) and remove the module
 The diode-matrix is visible with D2168, D2169, D2170 en D2172 in place
 Remove all diodes (3) except D2170
D2168 D2169
1 NO NO
2 NO YES
3 NO NO
****************Initial Diode Matrix geleverd in Europa*******************
D2168 D2169
YES YES
Technical Information (Ref No. : ZSL00006 / date : November 28, 2005)
D2170 D2171
NO NO
NO NO
YES NO
Diode Matrix Condition on the MAIN UNIT
D2170 D2171
YES NO
D2172
1.6 - 25.999999 MHz
28.0 - 29.999999 MHz
NO 50.0 - 54.000000 MHz
144.0 - 146.000000 MHz
430.0 - 440.000000 MHz
1.6 - 54.000000 MHz
NO 118.0 - 174.00000 MHz
400.0 - 470.000000 MHz
0.1 - 199.999999 MHz
NO
400.0 - 470.000000 MHz
D2172
YES
