Computer System Requirements
Supported Systems
Operating System: Windows 7/8/10
l
USB:USB 2.0 and 3.0 High Speed
l
Minimum Requirements
Processor: Core i5 at 2.7 GHz
l
RAM: 4 GB
l
Free Hard Disk Space: 20 GB
l
1. Front Panel Controls
Frontline Sodera™ front panel is shown below. The panel provides controls to power up and shut down the Frontline Sodera hardware,
and it provides indicators to show the power, battery, and capture status.
Frontline Technical Support: Phone +1-434-984-4500 or email tech_support@fte.com
TM
Install Software
l

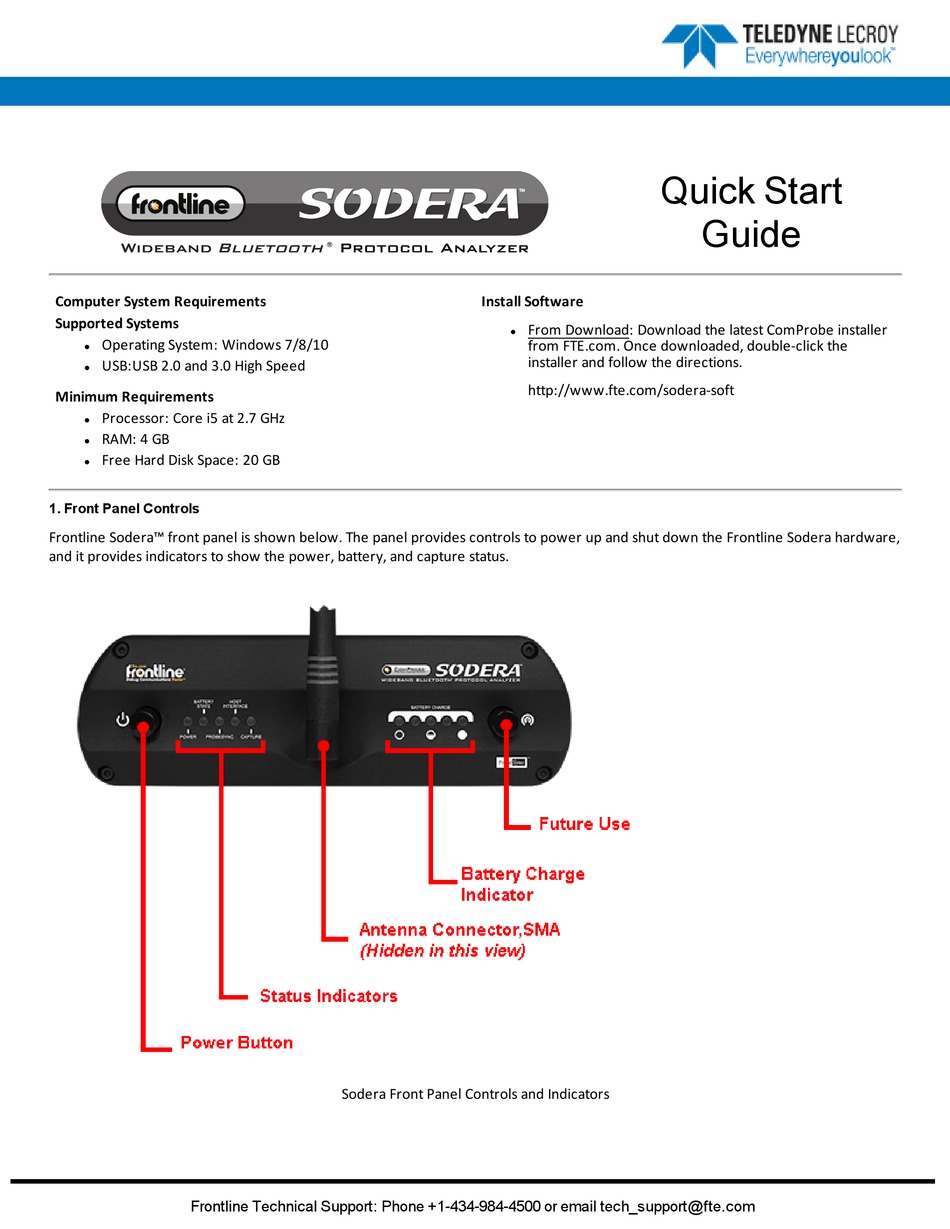

Sodera Front Panel Controls and Indicators
Quick Start
Guide
From Download: Download the latest ComProbe installer
from FTE.com. Once downloaded, double-click the
installer and follow the directions.
http://www.fte.com/sodera-soft
