BA046D/06/en/10.03
50097090
Valid as of software version:
V 1.06.XX (amplifier)
V 1.03.XX (communication)

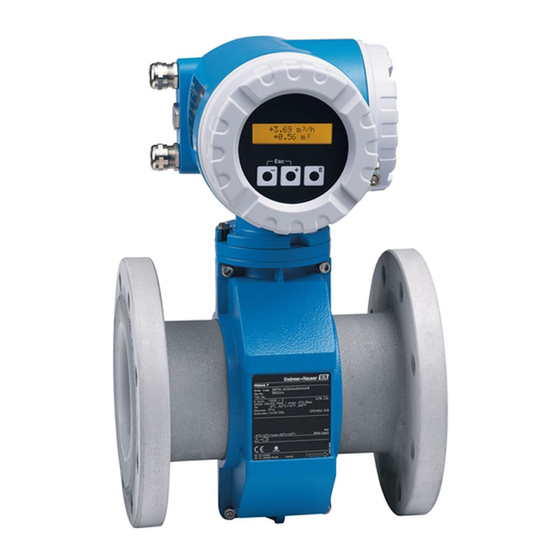

PROline promag 50
Electromagnetic
Flow Measuring System
Operating Instructions
