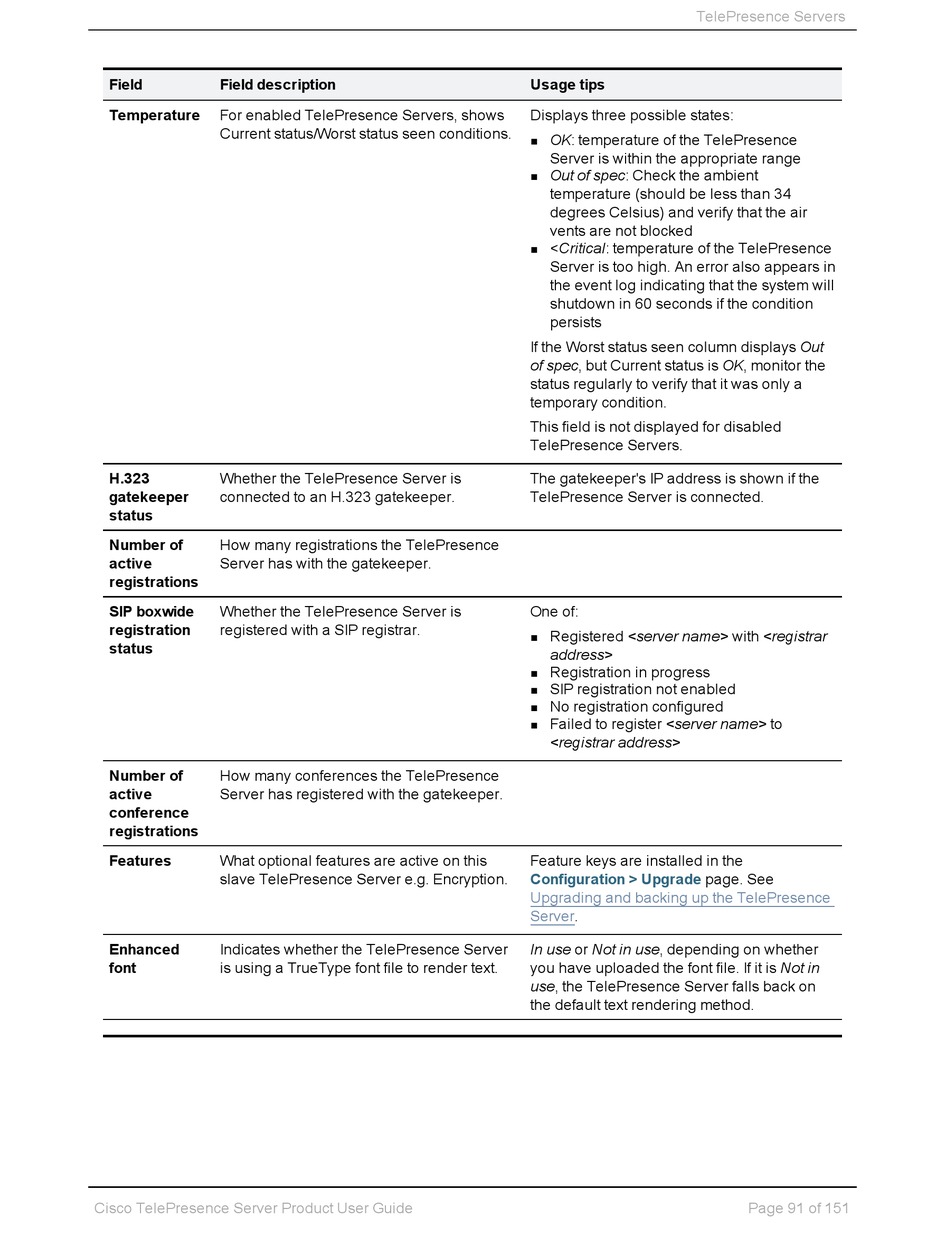

Field Field description
Temperature For enabled TelePresence Servers, shows
Current status/Worst status seen conditions.
H.323 Whether the TelePresence Server is
gatekeeper connected to an H.323 gatekeeper.
status
Number of How many registrations the TelePresence
active Server has with the gatekeeper.
registrations
SIP boxwide Whether the TelePresence Server is
registration registered with a SIP registrar.
status
Number of How many conferences the TelePresence
active Server has registered with the gatekeeper.
conference
registrations
Features What optional features are active on this
slave TelePresence Server e.g. Encryption.
Enhanced Indicates whether the TelePresence Server
font is using a TrueType font file to render text.
Cisco TelePresence Server Product User Guide
TelePresence Servers
Usage tips
Displays three possible states:
OK: temperature of the TelePresence
n
Server is within the appropriate range
Out of spec: Check the ambient
n
temperature (should be less than 34
degrees Celsius) and verify that the air
vents are not blocked
<Critical: temperature of the TelePresence
n
Server is too high. An error also appears in
the event log indicating that the system will
shutdown in 60 seconds if the condition
persists
If the Worst status seen column displays Out
of spec, but Current status is OK, monitor the
status regularly to verify that it was only a
temporary condition.
This field is not displayed for disabled
TelePresence Servers.
The gatekeeper's IP address is shown if the
TelePresence Server is connected.
One of:
Registered <server name> with <registrar
n
address>
Registration in progress
n
SIP registration not enabled
n
No registration configured
n
Failed to register <server name> to
n
<registrar address>
Feature keys are installed in the
Configuration > Upgrade page. See
Upgrading and backing up the TelePresence
Server.
In use or Not in use, depending on whether
you have uploaded the font file. If it is Not in
use, the TelePresence Server falls back on
the default text rendering method.
