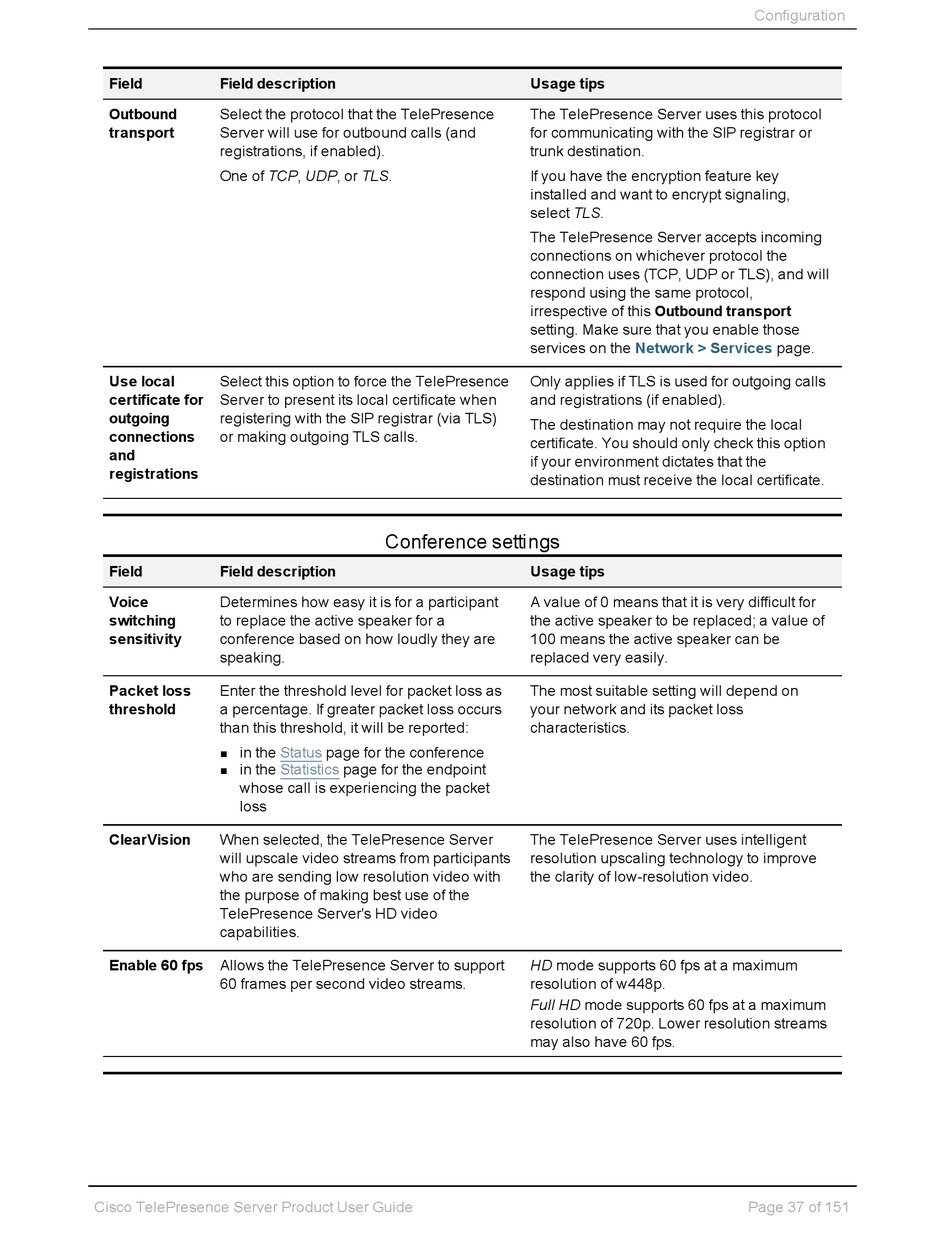

Cisco TelePresence Server 7010 Product User Manual page 37

Field Field description
Outbound Select the protocol that the TelePresence
transport Server will use for outbound calls (and
registrations, if enabled).
One of TCP, UDP, or TLS.
Use local Select this option to force the TelePresence
certificate for Server to present its local certificate when
outgoing registering with the SIP registrar (via TLS)
connections or making outgoing TLS calls.
and
registrations
Field Field description
Voice Determines how easy it is for a participant
switching to replace the active speaker for a
sensitivity conference based on how loudly they are
speaking.
Packet loss Enter the threshold level for packet loss as
threshold a percentage. If greater packet loss occurs
than this threshold, it will be reported:
in the
n
in the
n
whose call is experiencing the packet
loss
ClearVision When selected, the TelePresence Server
will upscale video streams from participants
who are sending low resolution video with
the purpose of making best use of the
TelePresence Server's HD video
capabilities.
Enable 60 fps Allows the TelePresence Server to support
60 frames per second video streams.
Cisco TelePresence Server Product User Guide
Conference settings
Status page for the conference
Statistics page for the endpoint
Usage tips
The TelePresence Server uses this protocol
for communicating with the SIP registrar or
trunk destination.
If you have the encryption feature key
installed and want to encrypt signaling,
select TLS.
The TelePresence Server accepts incoming
connections on whichever protocol the
connection uses (TCP, UDP or TLS), and will
respond using the same protocol,
irrespective of this Outbound transport
setting. Make sure that you enable those
services on the Network > Services
Only applies if TLS is used for outgoing calls
and registrations (if enabled).
The destination may not require the local
certificate. You should only check this option
if your environment dictates that the
destination must receive the local certificate.
Usage tips
A value of 0 means that it is very difficult for
the active speaker to be replaced; a value of
100 means the active speaker can be
replaced very easily.
The most suitable setting will depend on
your network and its packet loss
characteristics.
The TelePresence Server uses intelligent
resolution upscaling technology to improve
the clarity of low-resolution video.
HD mode supports 60 fps at a maximum
resolution of w448p.
Full HD mode supports 60 fps at a maximum
resolution of 720p. Lower resolution streams
may also have 60 fps.
Configuration
page.
