1.4 - Installing the Motors
INSERT THE MOTORS ONTO THE STUDS IN THE CASING. IF THE GATES
ARE HUNG BETWEEN THE POSTS AND THE GATES OPEN INWARDS THE
MOTORS NEED TO BE POINTING INTO THE PROPERTY.

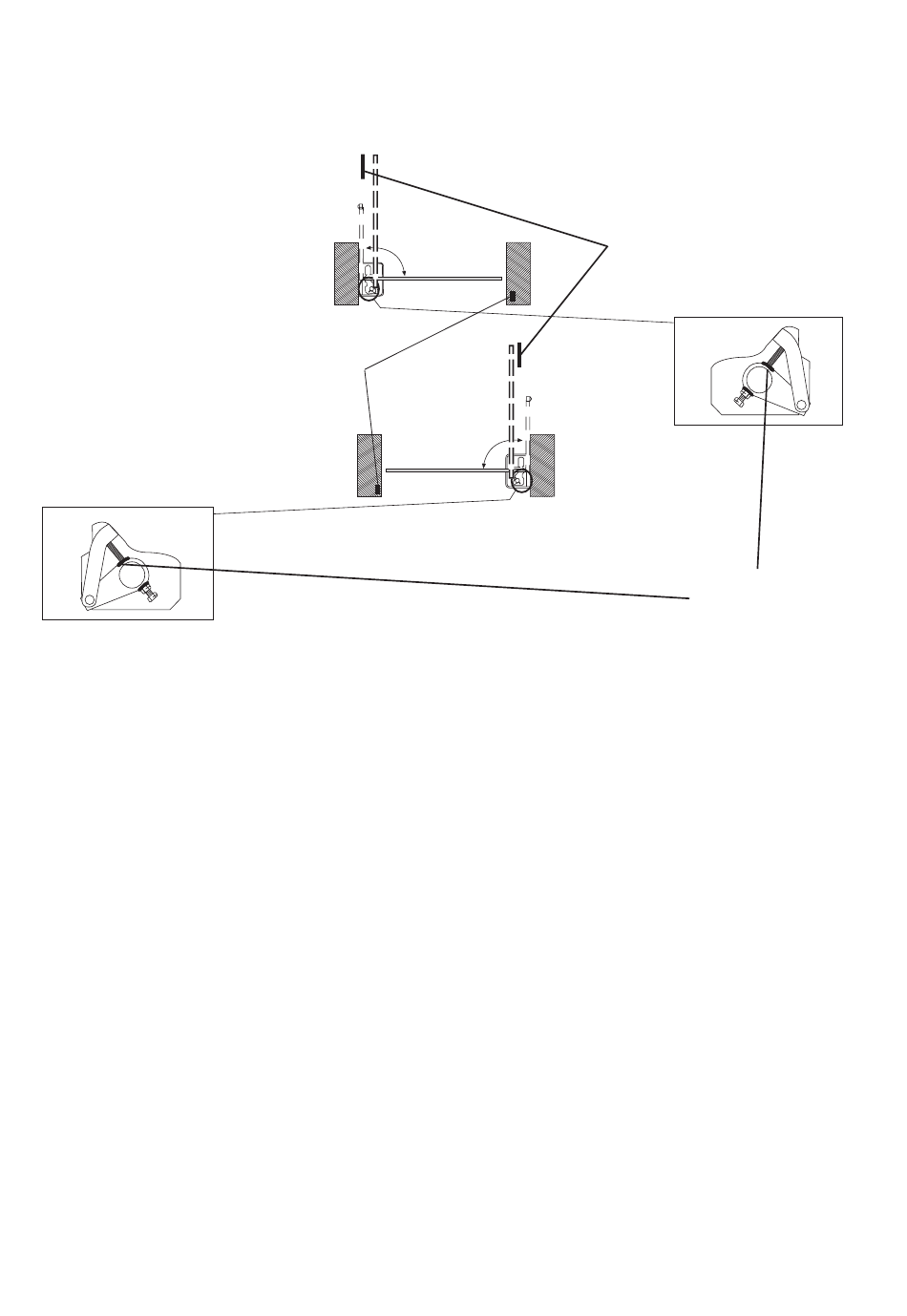

Fig 5
BACKSTOP
90°
A BACKSTOP AND
GATE CLOSING
STOPS ARE ALWAYS
ADVISED
CLOSING
STOP
90°
MOTOR STOP
ADJUSTERS
IF THE GATES ARE HUNG ON THE BACK OF THE POSTS THE MOTORS NEED
TO BE POINTING TOWARDS THE OTHER POST.

1.5 - Hanging the Gate

BEFORE ATTACHING THE GATE ENSURE THAT THE GATE PIVOT POINT IS
ADEQUATELY GREASED.
WHEN HANGING THE GATE ENSURE THAT IT IS SQUARE AND LEVEL
BEFORE WELDING THE GATE TO THE FROG SHOE. WHEN WELDING THE
GATE TO THE FROG SHOE DO NOT WELD OVER THE THREADED HOLES IN
THE SHOE.
WHEN HANGING A WOODEN GATE IT IS NECCESSARY TO CREATE A
U-SHAPED CARRYING SHOE IN MILD STEEL WHICH CAN BE WELDED TO
THE TOP SURFACE OF THE FROG SHOE. THEN THE WOODEN GATE CAN BE
BOLTED INTO POSITION WITH THE U-SHAPED CARRYING SHOE
CLAMPING TO THE BOTTOM OF THE GATE.
