Control Panel Adjustments - CAME FROG series Installation Instructions Manual

1. TO SET THE TOTAL RUNNING TIME OF THE MOTORS, ADJUST
POTENIOMETER TL TO ALLOW THE MOTORS TO RUN FOR A FURTHER
5-7 SECONDS AFTER THE MOVEMENT CYCLE HAS BEEN COMPLETED
(I.E FULLY OPEN OR FULLY CLOSED)

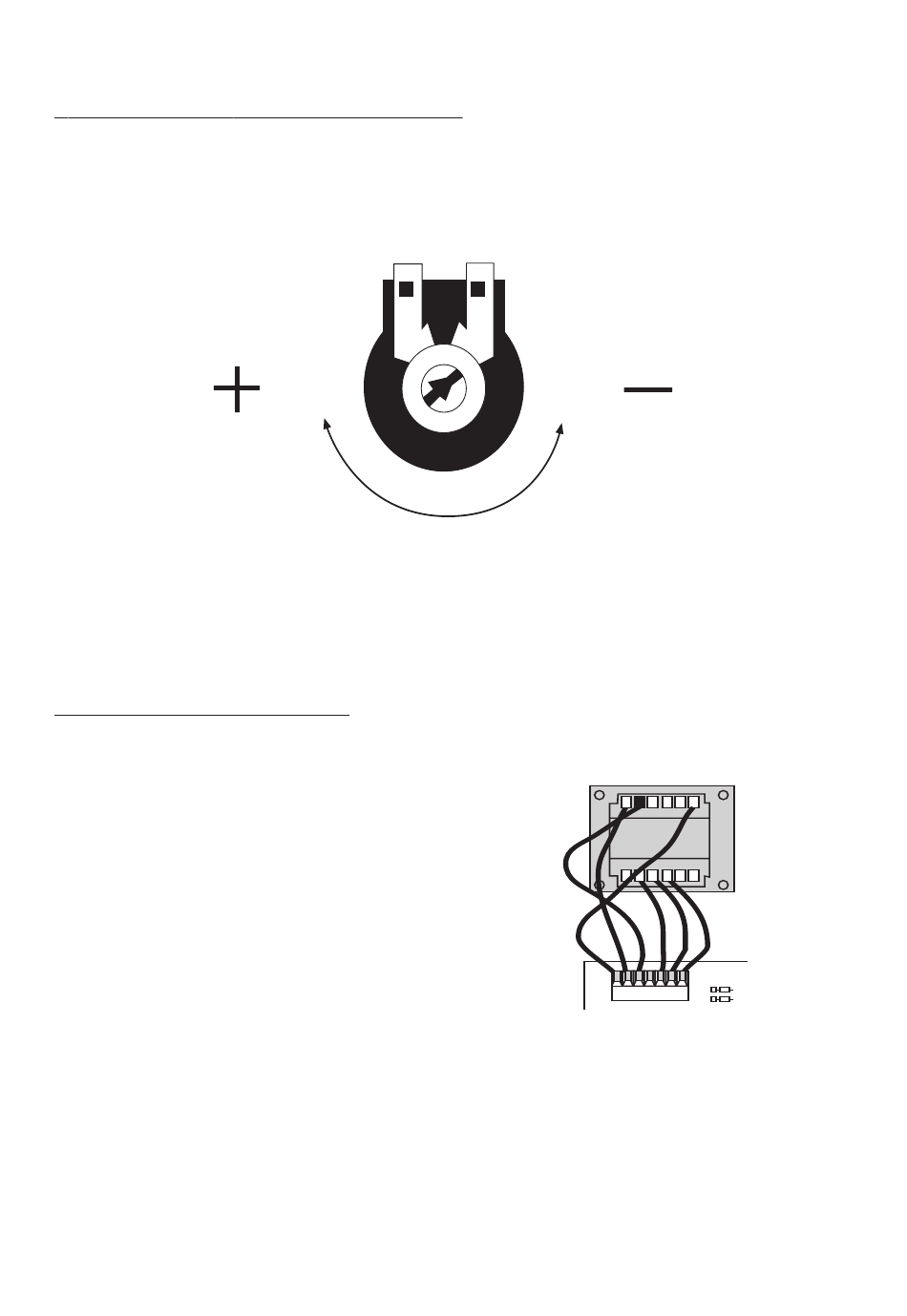

Fig 19
2. CHECK THE SENSITIVITY OF THE GATE
BY TRYING TO PHYSICALLY STOP THE
GATE AND ADJUST THE POWER
SETTINGS ON THE TRANSFORMER
ACCORDINGLY. IF MORE POWER IS
NEEDED FOR A HEAVIER GATE THEN
SWITCH OFF POWER AND MOVE
TRANSFORMER WIRE UP TO SETTING 2.
FOR RECHECKING SENSITIVITY, REPEAT
PROCESS UP TO 3 OR 4 IF EVEN MORE
POWER IS NEEDED.

3.3 - Control Panel Adjustments

TRIMMER TL
15
Fig 20
