Electrical Connections - CAME FROG series Installation Instructions Manual

L1 L2 U V W E1 ES 10 11 1 2
L1
L2
U
W
V
W
E1
11
ES
10
11
10
5
1
2
2
3
2
7
2
C1

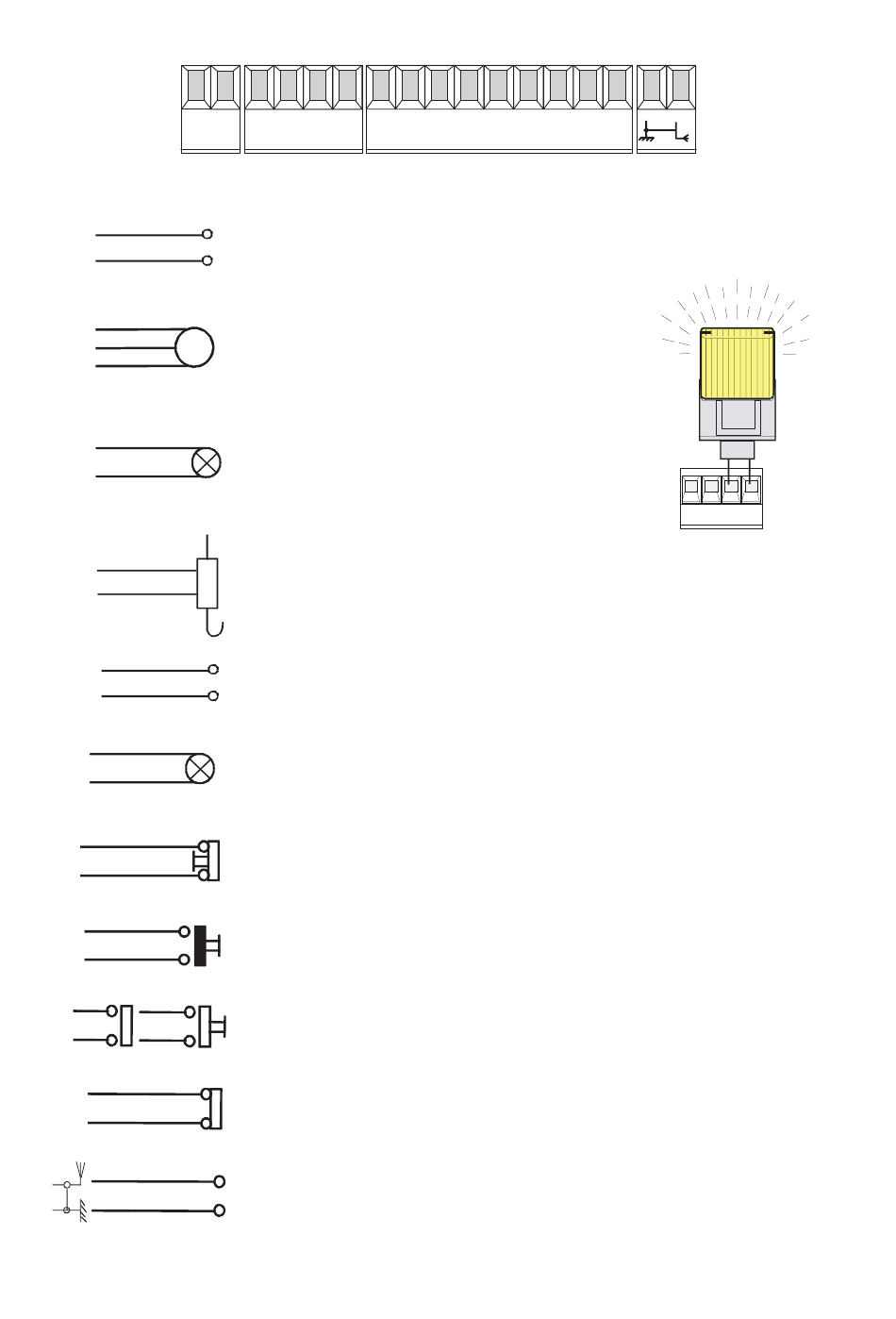

5.8 - Electrical Connections

230V (a.c.) power input
230V (a.c.) single-phase motor max. 600W
230V (a.c.) output in motion
(e.g. flashing light - max. 25W)
(12V - 15W max.) connection for electrically-actuated lock
24V (a.c.)Powering accessories (max 20W)
(24V-3W max.) "gate-opened" signal lamp
Pushbutton stop (N.C.)
Open button (N.O.)
Contact radio and/or button for control
Contact (N.C.) for re-opening during the closing
Antenna connection
3 5 7 C1
27
U V W E1
