Per-Port Static VLAN Configuration Options

The following figure and table show the options you can use to assign
individual ports to a static VLAN. Note that GVRP, if configured, affects these
options and VLAN behavior on the switch. The display below shows the per-
port VLAN configuration options. Table 1-4 briefly describes these options.

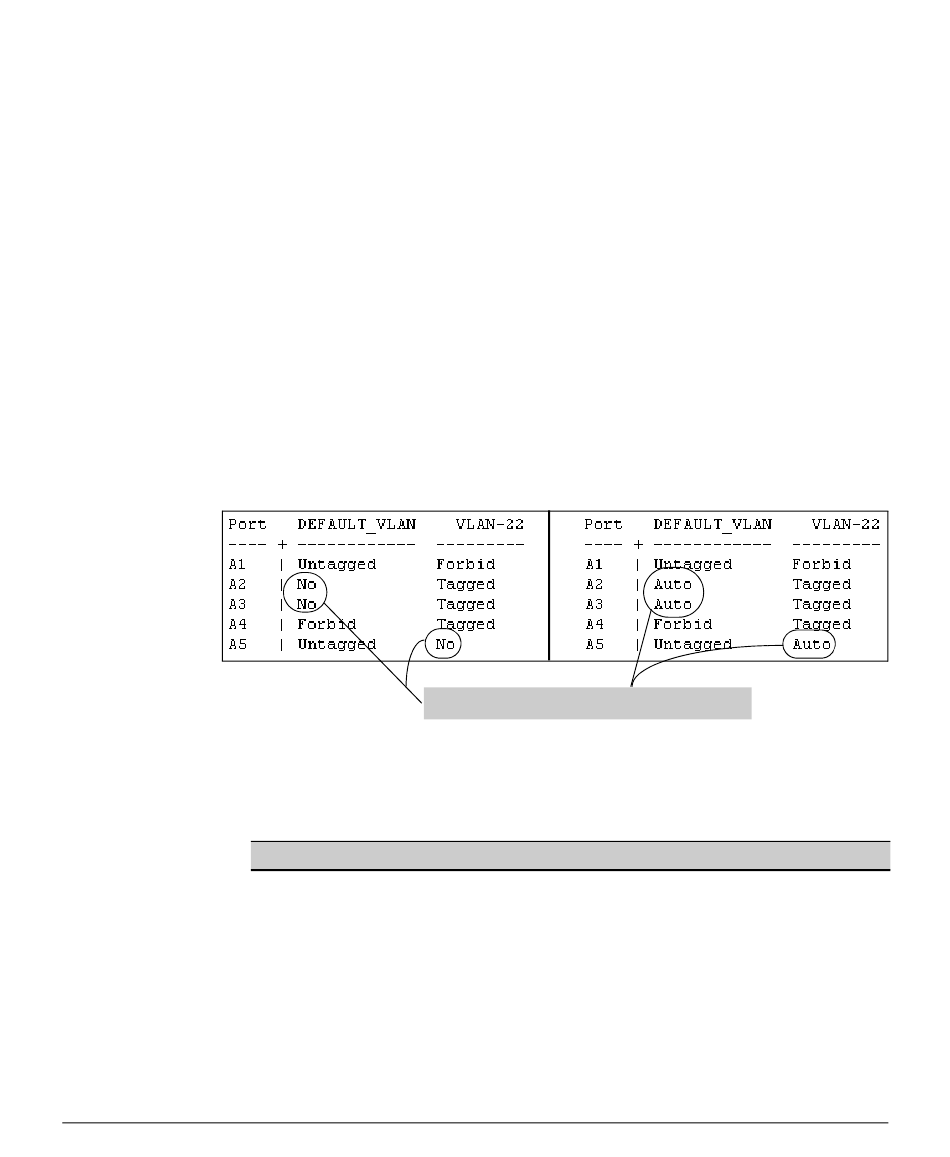

Example of Per-Port
VLAN Configuration
with GVRP Disabled
(the default)
Figure 1-6. Comparing Per-Port VLAN Options With and Without GVRP
Table 1-4. Per-Port VLAN Configuration Options
Parameter Effect on Port Participation in Designated VLAN
Tagged Allows the port to join multiple VLANs.
Untagged Allows VLAN connection to a device that is configured for an untagged
VLAN instead of a tagged VLAN. A port can be an untagged member of
only one port-based VLAN. A port can also be an untagged member of only
one protocol-based VLAN for any given protocol type. For example, if the
switch is configured with the default VLAN plus three protocol-based
VLANs that include IPX, then port 1 can be an untagged member of the
default VLAN and one of the protocol-based VLANS.
Enabling GVRP causes "No" to display as "Auto".
