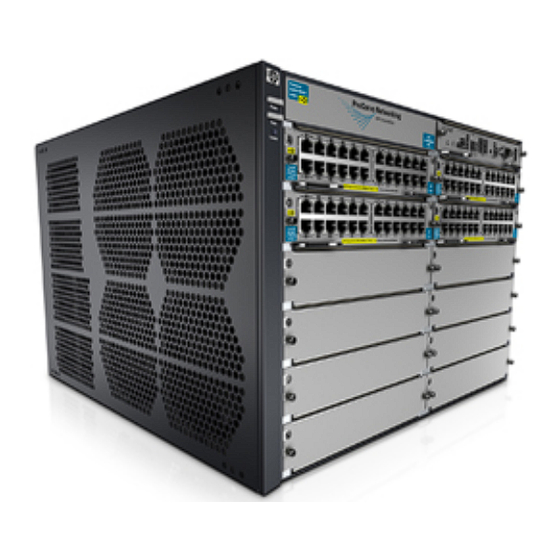

HP ProCurve 5406zl-48G Intelligent Edge Datasheet
Procurve 5406zl series; procurve 3500yl series
Hide thumbs
Also See for ProCurve 5406zl-48G
Intelligent Edge:
- Planning and implementation manual (168 pages) ,
- Installation and getting started manual (132 pages) ,
- Quick reference manual (44 pages)
Advertisement
Datasheet
HP ProCurve Switch 5400zl/3500yl Series
The ProCurve Switch 5400zl/3500yl series consists of the most advanced intelligent edge switches in the
ProCurve Networking product line. The 5400zl series includes 6-slot and 12-slot chassis and associated zl
modules and bundles, and the 3500yl series includes 24-port and 48-port stackables. The foundation for all
these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking
features, such as QoS and security, to be implemented in a scalable yet granular fashion. With a variety of
Gigabit interfaces, integrated PoE on all 10/100/1000Base-T ports, 10-GbE capability, and a choice of form
factors, the 5400zl/3500yl switches offer excellent investment protection, flexibility, and scalability, as well as
ease of deployment, operation, and maintenance.
Advertisement
Table of Contents
Related Manuals for HP ProCurve 5406zl-48G Intelligent Edge
Summary of Contents for HP ProCurve 5406zl-48G Intelligent Edge
- Page 1 Datasheet HP ProCurve Switch 5400zl/3500yl Series The ProCurve Switch 5400zl/3500yl series consists of the most advanced intelligent edge switches in the ProCurve Networking product line. The 5400zl series includes 6-slot and 12-slot chassis and associated zl modules and bundles, and the 3500yl series includes 24-port and 48-port stackables. The foundation for all these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as QoS and security, to be implemented in a scalable yet granular fashion.
-
Page 2: Features And Benefits
IPv6 multicast traffic from flooding the network - IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic - IPv6 ready: the switch hardware can support IPv6 QoS, ACL, routing, tunneling, and security; these features will be available when enabled via software update in follow-on releases •... -
Page 3: Layer 3 Services
• OSPF (requires Premium License): includes host-based ECMP to provide link redundancy/scalable bandwidth and NSSA Security USB Secure Autorun (requires HP ProCurve Manager Plus): deploys, diagnoses, and updates switch using USB flash drive; works with secure credential to prevent tampering •... -
Page 4: Quality Of Service (Qos)
HP ProCurve Switch 5400zl/3500yl Series • Secure management access: all access methods--CLI, GUI, or MIB--are securely encrypted through SSHv2, SSL, and/or SNMPv3 • Switch management logon security: can require either RADIUS or TACACS+ authentication for secure switch CLI logon • Security banner: displays a customized security policy when... -
Page 5: Specifications
HP ProCurve Switch 5400zl/3500yl Series Specifications HP ProCurve Switch 3500yl-24G-PWR Intelligent Edge (J8692A) Ports 1 open module slot 20 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Media Type: Auto-MDIX; Duplex: 10Base-T/100Base-TX: half or full;... - Page 6 HP ProCurve Switch 5400zl/3500yl Series Operating temperature 32ºF to 131ºF (0ºC to 55ºC); 32°F to 104°F (40°C) when used with any X2 10-GbE Operating relative humidity 15% to 95% @ 104ºF (40ºC), non-condensing Non-operating/Storage temperature -40ºF to 158ºF (-40ºC to 70ºC) Non-operating/Storage relative humidity 15% to 90% @ 149ºF (65ºC), non-condensing...
- Page 7 (UE262E) Installation with minimum configuration, system-based pricing (U4826E) Installation with HP-provided configuration, system-based pricing (U4830E) Refer to the HP Web site at www.procurve.com/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
- Page 8 HP ProCurve Switch 5400zl/3500yl Series Standards and protocols Device management RFC 1591 DNS (client) HTML and telnet management General protocols IEEE 802.1ad Q-in-Q (Premium License) IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1v VLAN classification by...
- Page 9 HP ProCurve Switch 5406zl-48G Intelligent Edge (J8699A) Included accessories 2 HP ProCurve Switch zl 24-Port 10/100/1000 PoE Module (J8702A) 1 HP ProCurve Switch zl 875W Power Supply (J8712A) Ports 4 open module slots 48 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type...
- Page 10 HP ProCurve Switch 5400zl/3500yl Series Operating temperature 32ºF to 131ºF (0ºC to 55ºC); 0°C to 40°C with J8705A, J8706A, or J8707A modules installed Operating relative humidity 15% to 95% @ 131ºF (55ºC), non-condensing Non-operating/Storage temperature -40ºF to 158ºF (-40ºC to 70ºC) Non-operating/Storage relative humidity 15% to 95% @ 149ºF (65ºC), non-condensing...
- Page 11 (UF786E) Installation with minimum configuration, system-based pricing (U4828E) Installation with HP-provided configuration, system-based pricing (U4832E) Refer to the HP Web site at www.procurve.com/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
- Page 12 HP ProCurve Switch 5400zl/3500yl Series Standards and protocols Device management RFC 1591 DNS (client) HTML and telnet management General protocols IEEE 802.1ad Q-in-Q (Premium License) IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1v VLAN classification by...
- Page 13 HP ProCurve Wireless Edge Services zl Module (J9051A) HP ProCurve Redundant Wireless Services zl Module (J9052A) yl Modules HP ProCurve Switch yl 10-GbE 2-Port CX4 + 2-Port X2 Module (J8694A) zl Modules HP ProCurve Switch zl 4-Port 10-GbE X2 Module (J8707A)
-
Page 14: For More Information
To learn more about HP ProCurve Networking, please visit © 2008 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
