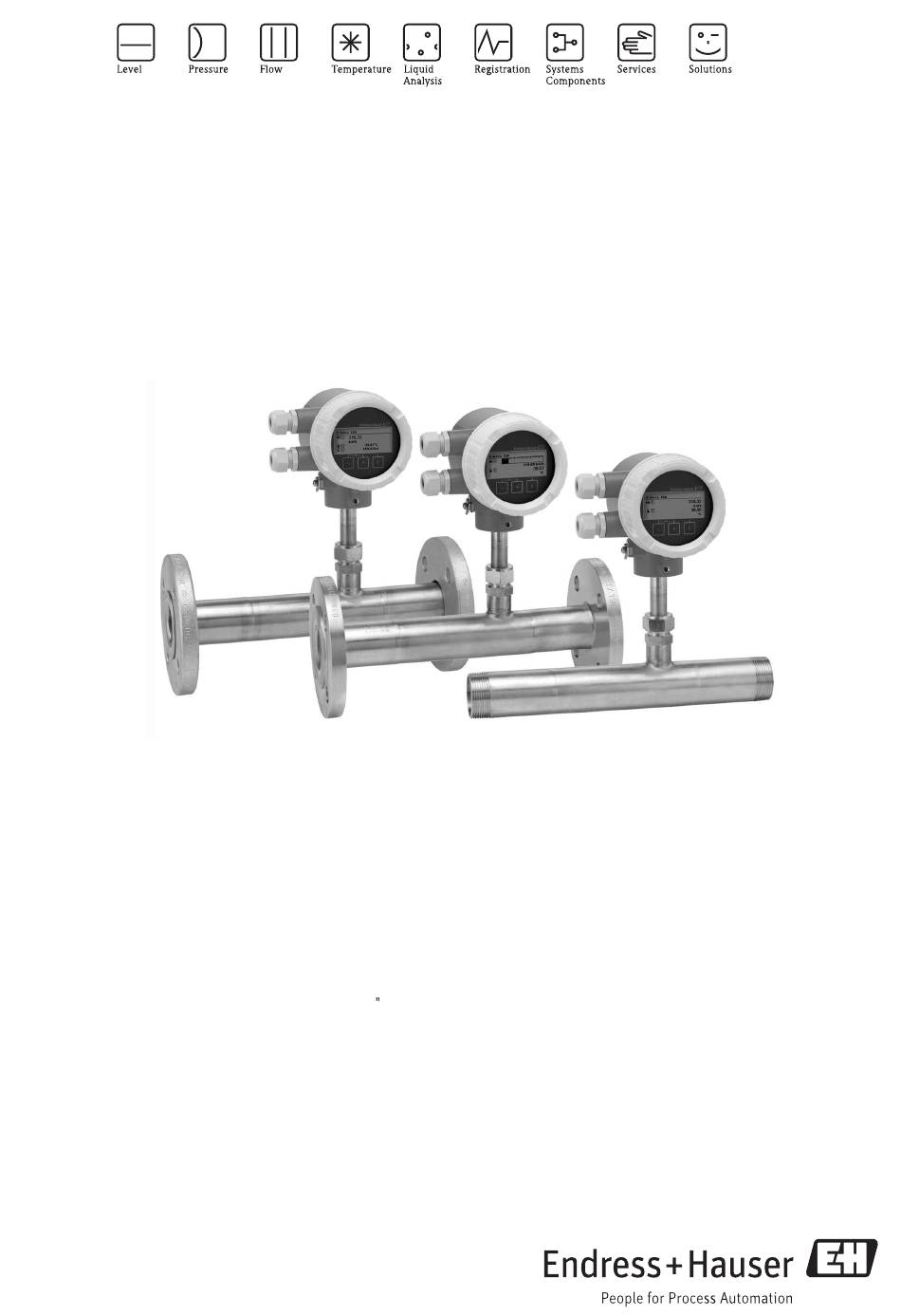

Technical Information
Proline t-mass A 150
Thermal Mass Flow Measuring System
For easy and cost-effective measurement of utility gases
Area of application
• Cost-effective measuring device for different utility gas
applications
• System optimization due to targeted monitoring of
utility gases
• Leakage detection in gas networks
• Suitable for in-house consumption accountancy
Device properties
• Direct mass flow measurement (kg/h, lbs/h, Scf/min,
3
Nm
, etc.)
• Selection of gases: air, carbon dioxide, nitrogen and
argon
• Nominal diameters: DN 15 to 50 (½ to 2 )
• Flange and threaded connections
• Process temperature up to +100 °C (+212 °F)
• Process pressure: 500 mbar a to 40 bar g (7.25 psi a to
580 psi g)
• Calibration accuracy up to 3% o.r. and operable flow
range up to 150:1
• 4-20 mA HART, pulse/frequency/status
• cCSAus Cl. 1 Div. 2, PED, CRN
• IP 66/67
TI01019D/06/EN/02.12
71187192
Your benefits
The device enables direct measurement of the mass flow
of utility gases. Minimum maintenance and negligible
pressure loss drive down operating costs.
Sizing - correct product selection
Applicator - the reliable, easy-to-use tool for selecting
measuring devices for every application
Commissioning - reliable and intuitive
• Intuitive configuration and simple operation
• Preconfigured in accordance with individual
requirements
Operation
Multivariable output values measured: mass flow,
corrected volume flow, FAD volume flow and
temperature
Life Cycle Management (W@M) for your plant

Advertisement

Table of Contents
loading

Summary of Contents for Endress+Hauser Proline t-mass A 150

  • Page 1 Technical Information Proline t-mass A 150 Thermal Mass Flow Measuring System For easy and cost-effective measurement of utility gases Area of application Your benefits • Cost-effective measuring device for different utility gas The device enables direct measurement of the mass flow applications of utility gases.
  • Page 2: Table Of Contents

    Table of contents Proline t-mass A 150 Table of contents Document information ......3 Pressure loss ....... . 19 System pressure .
  • Page 3: Document Information

    Proline t-mass A 150 Document information Document conventions Electrical symbols Symbol Meaning Direct current A terminal to which DC voltage is applied or through which direct current flows. A0011197 Alternating current A terminal to which alternating voltage (sine-wave) is applied or through which alternating current flows.
  • Page 4: Function And System Design

    Proline t-mass A 150 Symbols in graphics Symbol Meaning 1, 2, 3,... Item numbers Series of steps … A, B, C, ... Views A-A, B-B, C-C, ... Sections Flow direction A0013441 Hazardous area Indicates a hazardous area. A0011187 Safe area (non-hazardous area) Indicates a non-hazardous location.
  • Page 5: Characteristic Values

    The measuring device is calibrated with air (under ambient conditions) and the value is converted in order to adapt it to the customer's gas if necessary. To obtain information on other gases and process conditions, please contact your Endress+Hauser sales office.
  • Page 6: Operable Flow Range

    Proline t-mass A 150 Measuring range "Calibration flow" option K (® ä 12) SI units for EN (DIN) flange versions [kg/h] /h] at 0 °C (1.013 bar a) /h at 15 °C (1.013 bar a) [mm] min. Max. min. Max.
  • Page 7: Signal On Alarm

    Proline t-mass A 150 Adjustable: 0.5 to 2 000 ms ® pulse rate: 0 to 1 000 Pulse/s Pulse width Pulse value Adjustable Assignable measured • Mass flow variables • Corrected volume flow • FAD volume flow Frequency output Maximum frequency...
  • Page 8: Low Flow Cut Off

    Proline t-mass A 150 Status signal as per NAMUR recommendation NE 107 Operating tool • Via digital communication: HART protocol • Via service interface Plain text display With information on cause and corrective action Additional information on remote operation(® ä 28) Low flow cut off The switch point for low flow cut off is programmable.
  • Page 9: Power Supply

    Proline t-mass A 150 Power supply Terminal assignment Transmitter Connection version 4-20 mA HART, pulse/frequency/switching output A0017178 Supply voltage Signal transmission: Pulse/frequency/switching output Signal transmission: 4-20 mA HART Ground terminal for cable shield Supply voltage Order characteristic for Terminal numbers "Power supply"...
  • Page 10: Current Consumption

    Proline t-mass A 150 Current consumption Order characteristic for Maximum current Maximum switch-on "Output" consumption current < 2.5 A • Option A: 4-20mA HART 185 mA • Option B: 4-20mA HART, pulse/frequency/switching output • Option K: Pulse/frequency/switching output Power supply failure •...
  • Page 11: Potential Equalization

    Proline t-mass A 150 4...20 mA – A0016800 å 2 Connection example for current output, 4-20 mA HART active Control system (e.g. PLC) Observe cable specification (® ä 12) Connection for Field Communicator 375/475 or Commubox FXA191/195 Resistor for HART communication (³ 250 W): observe maximum load (® ä 6) Analog display unit: observe maximum load (®...
  • Page 12: Cable Specification

    Proline t-mass A 150 Cable specification Wire cross-sectional area 0.5 to 1.5 mm (21 to 16 AWG) Permitted temperature range • –40 °C (–40 °F)...³ 80 °C (176 °F) • Minimum requirement: cable temperature range ³ ambient temperature + 20 K...
  • Page 13: Repeatability

    Proline t-mass A 150 ±20 ±15 K, L ±10 ±5 [% kg/h] 20 30 40 60 70 90 100 110 120 130 140 150 [% lb/h] A0016921 å 5 Maximum measured error (% mass flow) as % of measured value/full scale value. G, H, K, L: Order code options for "Calibration flow", see the following table...
  • Page 14: Installation

    Proline t-mass A 150 Installation Mounting location Thermal measuring devices require a fully developed flow profile as a prerequisite for correct flow measurement. For this reason, please pay attention to the following points and document sections when installing the device: •...
  • Page 15: Inlet And Outlet Runs

    Proline t-mass A 150 A0005105 A0005104 A0005106 Incorrectly sized seal Incorrectly aligned flanges and seals Internal diameter of pipe does not correspond to internal diameter of process connection ordered Inlet and outlet runs The thermal measuring principle is sensitive to disturbed flow conditions.
  • Page 16 Recommended inlet and outlet runs when using a flow conditioner This is a special Endress+Hauser design which was developed for the sensor t-mass A 150 (DN 40 to 50 / 1 ½ to 2 ). The arrangement of the individual screw holes and their diameter means that the flow conditioner can be used for different flange pressure ratings.
  • Page 17: Environment

    Proline t-mass A 150 Pressure loss The pressure loss for flow conditioners is calculated as follows: Dp = K A0005243 Dp = Pressure loss [mbar] g = Mass flow [kg/h] r = Density [kg/m D = Diameter [mm] K = Constant 1876 (SI units) or 8.4 · 10...
  • Page 18 Proline t-mass A 150 Flange connection (fixed flange) as per EN 1092-1 (DIN 2501) [psi] [bar] PN 40 [°C] [°F] 160 180 A0016015 å 7 Flange material 1.4404 Flange connection (fixed flange) as per ASME B16.5 [psi] [bar] Cl. 300 [°C]...
  • Page 19: Flow Limit

    Proline t-mass A 150 Flange connection (lap joint flange) as per EN 1092-1 (DIN 2501) [psi] [bar] PN16 [°C] -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 -20 0 20 40 60 80 100 120 140 160 180 200 [°F]...
  • Page 20: System Pressure

    Proline t-mass A 150 System pressure Sensor Depending on the version, please note the details on the name plate . Max. 40 bar g (580 psi g) Thermal insulation If the gas is very humid or saturated with water, the pipe and the sensor housing should be insulated to prevent water droplets condensing on the transducer.
  • Page 21 Proline t-mass A 150 Dimensions in US units [in] [in] [in] [in] [in] [in] [in] [in] ½ 5.75 5.24 5.08 4.29 6.02 3.62 9.65 5.75 5.24 5.08 4.53 6.02 3.62 9.65 1½ 5.75 5.24 5.08 4.33 7.87 4.72 12.6 5.75 5.24...
  • Page 22 Proline t-mass A 150 Lap joint flanges as per EN (DIN), ASME A0017272 Lap joint flange, stamping plate as per EN 1092-1/ PN 10 [mm] [mm] [mm] [mm] [mm] [mm] [mm] 4 × Ø13.5 11.5 34.9 15.8 4 × Ø13.5 50.8...
  • Page 23 Proline t-mass A 150 External thread as per EN (DIN), ASME 1:16 A0017273 R external thread as per EN 10226-1, ISO 7-1 [mm] [in] [mm] [mm] R ½ 15.8 10.4 26.7 R 1½ 12.7 40.9 15.9 52.5 NPT external thread as per ASME B1.20.1...
  • Page 24 Proline t-mass A 150 Fixed flanges as per ASME B16.5 / Cl 300 [in] [in] [in] [in] [in] [in] 1½ 4 × Ø7/8 1.22 1.69 4 × Ø9/4 1.34 2.16 Lap joint flanges as per ASME A0017272 Lap joint flanges as per ASME B16.5 / Cl 150...
  • Page 25: Weight

    Proline t-mass A 150 Flow conditioner as per EN(DIN)/ASME A0015542 Dimensions in SI units As per EN(DIN) / PN 40 Type Weight [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] As per ASME / Cl 300 Sched 40 Type Weight...
  • Page 26: Materials

    Proline t-mass A 150 Weight [kg] [mm] Fixed flange Lap joint flange Threaded version CL300 PN40 PN16 PN10 CL150 Weight in US units Compact version Weight [lbs] [mm] Fixed flange Lap joint flange Threaded version CL300 PN40 PN16 PN10 CL150 12.1...
  • Page 27: Process Connections

    Proline t-mass A 150 Cable entries Order characteristic for "Housing", option A: compact, aluminum coating Electrical connection Type of protection Material Cable gland M20 × 1.5 For non-hazardous areas Plastic Thread G ½ For non-Ex and Ex Nickel-plated brass via adapter Thread NPT ½...
  • Page 28: Local Operation

    Proline t-mass A 150 Local operation "Display; Operation" Order code option C E sc A0017279 1 Display module (pushbutton operation) Display elements • 4-line display • Format for displaying measured variables and status variables can be individually configured • Permitted ambient temperature for the display: –20 to +60 °C (–4 to +140 °F) The readability of the display may be impaired at temperatures outside the temperature range.
  • Page 29: Languages

    The devices can be ordered with or without a PED approval. If a device with a PED approval is required, this must be explicitly stated in the order. • With the PED/G1/x (x = category) marking on the sensor nameplate, Endress+Hauser confirms compliance with the Essential Safety Requirements specified in Annex I of the Pressure Equipment Directive 97/23/ •...
  • Page 30: Other Standards And Guidelines

    Specifications for integrating fieldbus devices in engineering tools for field devices • NAMUR NE 107 Status classification as per NE107 Ordering information Your Endress+Hauser sales center can provide detailed ordering information and information on the extended order code. Application packages Package...
  • Page 31: Service-Specific Accessories

    HART current output (4-20 mA). For details, see Operating Instructions BA00060S Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop. For details, see Technical Information TI00405C...
  • Page 32: System Components

    For details, see Technical Information TI00133R and Operating Instructions BA00247R Documentation The following document types are available: • On the CD-ROM supplied with the device • In the Download Area of the Endress+Hauser Internet site: www.endress.com ® Download Standard documentation Device type Communication Document type...
