Wiring - Omron SYSMAC C Series Operation Manual

Installation, Settings, and Wiring

5-3-4 Wiring

1, 2, 3...
72
Wiring is accomplished at the terminal connectors or also referred to as terminal
blocks. To access the terminal connectors proceed as follows.
1. Insert each wire in the appropriate connector.
2. Secure each wire with the terminal screw.
Indicator
cover
Set
screw
I/O
terminal
block
Input signals
on protective
plastic cover

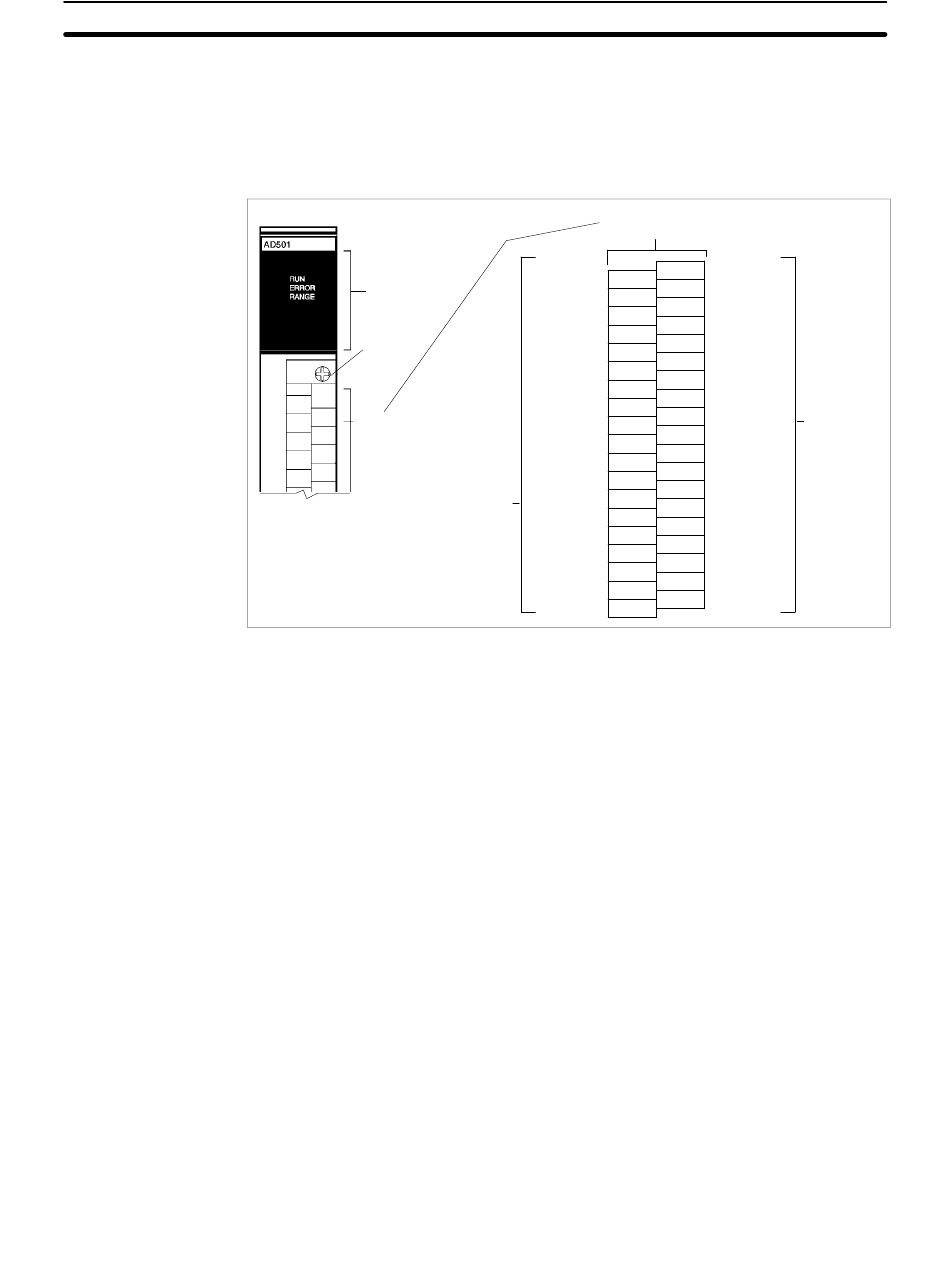

C500-AD501 Analog
Input Unit
I/O terminal block
designations
B0
A0
Shield
B1
Input 1 + A1
B2
Input 2 + A2
B3
Input 3 + A3
B4
Input 4 + A4
B5
A5
Input 5 +
B6
A6
Input 6 +
B7
Input 7 + A7
B8
A8
Input 8 +
B9
A9
Shield
B10
A10
Input 9 +
B11
A11
Input 10 +
B12
A12
Input 11 +
B13
A13
Input 12 +
B14
Input 13 + A14
B15
Input 14 + A15
B16
Input 15 +
A16
B17
Input 16 +
A17
B18
Shield A18
Section 5-3
Shield
Input 1 –
Input 2 –
Input 3 –
Input 4 –
Input 5 –
Input 6 –
Input 7 –
Input signals
Input 8 –
on protective
Shield
plastic cover
Input 9 –
Input 10 –
Input 11 –
Input 12 –
Input 13 –
Input 14 –
Input 15 –
Input 16 –
Shield
