Summary of Contents for Samsung SHR-6040
-
Page 1: User Manual

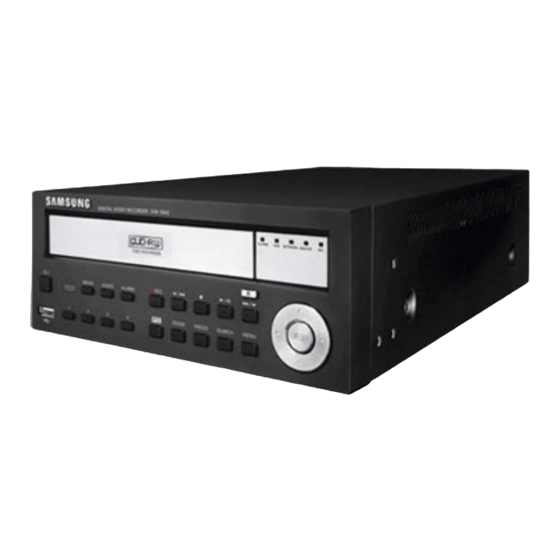

SHR-6040 SHR-6042 English Real Time DVR user manual imagine the possibilities AB82-01484A Rev-02 TK... - Page 2 Your purchased digital video recorder (DVR) compresses a 4-channel camera input into an MPEG4 video; also, it provides the functions that record to the HDD in real-time and play the content by compressing the 4-channel audio input with G.723. Also through the network, it transmits video and audio to an external device in real-time and allows monitoring the video and audio through a PC from a remote location.
- Page 3 Please be sure to keep the following in mind for the right use of the product to prevent proprietary risk or damage. Do not use multiple plugs at once. This may cause abnormal heat generation or fire Do not put a vase, flowerpot, cup, cosmetics, medicine, or vessel with water around you. This may cause fire.
-
Page 4: Before Start
You may download open source codes from the following website: http://www.samsung.com. Before installing any external device such as external memory or HDD, please check the compatibility of the device with Samsung DVR. The list of the compatible devices with Samsung DVR can be obtained from your vendor. -
Page 5: Table Of Contents
INTRODUCING YOUR REAL TIME DVR INSTALLATION CONNECTING WITH OTHER DEVICES MENU SETUP PTZ CAMERA CONTROL RECORDING Controls on the DVR Real panel jacks Remote control Checking installation environment Connecting video, audio, and monitor Connecting the network Connecting the alarm input... - Page 6 SEARCH AND PLAY APPENDIx 02_ contents User login Search screen Search date & time selection Search channel selection & recording graph Playback Net I System Camera Monitoring Mode Recording Mode Event Recording Mode Network SDB Viewer SFx player WEB Viewer Pop-up menu Specifications Outline drawings...
-
Page 7: Introducing Your Real Time Dvr
DVR CONTROLS ON THE DVR SHR-6040 SHR-6042 introducing your real time DVR_03... - Page 8 User authentication will be requested if the power button is pressed when you try to terminate the system operation. It is used when you turn on/off the DVR system power. This is the port used for connecting a USB type of device.
- Page 9 Name ALARM LED HDD LED NETWORK BACKUP LED REC LED EJECT Button Search Button REC Button ALARM Button AUDIO Setup Button Function If an event (like a motion or alarm) occurs, the ALARM LED is lighted on. This LED indicates whether the HDD is normally accessed. When accessing the HDD, this LED repeatedly blinks.
- Page 10 Button Search Mode/ Selection Button Remote Control Signals Receiver 06_ introducing your real time DVR Function Display the 4-split screens. Display the Picture in Picture (PIP) screen. Live Mode Screen Switchover: It will be switched over to the single channel screen according to the time set from the system setup.
-
Page 11: Real Panel Jacks
REAL PANEL jACKS DC-IN This is the connector for a 12V power socket. ALARM IN 1~4: This is the port for an alarm input. ALARm/RS485 ALARM OUT 1~2: This is the port for an alarm output. RS485: This is the port for connecting PTZ. This is the port for connecting a USB type of device. -
Page 12: Remote Control
REmOTE CONTROL 08_ introducing your real time DVR... - Page 13 introducing your real time DVR_09...
-
Page 14: Installation
Figure 1 10_ installation Please keep the following instructions for rack-mounting the Samsung DVRs to proceed with the installation. 1. The rack on which the DVR is mounted should not be sealed off. 2. And it also can allow air circulation through the vent. -
Page 15: Connecting With Other Devices
connecting with other devices CONNECTING VIDEO, AUDIO, AND mONITOR Video in Depending on whether or not the power cable is grounded, there could be high voltage electricity flowing through the video cables connected to the camera. Therefore, it’s important that you connect the video cables Caution to the VIDEO IN terminal with the system’s power turned off. -
Page 16: Connecting The Network
CONNECTING THE NETWORK Connecting to Internet through Ethernet (10/100BaseT) Connecting to Internet through ADSL 12_ connecting with other devices INTeRNeT Back Bone Hub/Switcher Windows NET-i INTeRNeT Phone(ADSL) Line Hub/Switcher Windows NET-i RJ45 Ethernet Cable (Direct Cable) Hub/Switcher RJ45 Ethernet Cable (Direct Cable) ADSL MODEM... -
Page 17: Connecting The Alarm Input
CONNECTING THE ALARm INPUT Connect one wire of the signal cable (2 wires) of various sensors (such as IR sensor, hot-wire detector and magnetic sensor) to the GROUND port and connect the remaining signal wire to the desired ALARM input port number. Please use the power ADAPTER suitable to the power specifications of various sensors. -
Page 18: Connecting The Alarm Output
CONNECTING THE ALARm OUTPUT Such as siren-lamp, amplified siren and external relay External Power Connect one wire of the signal cable (2 wires) of an external device (such as siren-lamp, amplified siren and external relay) to the GROUND port and connect the remaining signal wire to the desired ALARM output port number. 14_ connecting with other devices... -
Page 19: Connecting The Rs-485 Device
CONNECTING THE RS-485 DEVICE Please check that the RS-485 device is supported by the SHR-6040/6042 product. And, a caution shall be made when connecting to the RS-485 jack since it has the polarity (+ and –). Caution CONNECTING THE USB 1. -
Page 20: Live
OPERATING THE SYSTEm Turn on the power and the following Samsung logo appears. Perform the initialization job to operate the system after the logo screen has appeared. The live video appears if the initialization process is normally completed. - Page 21 : Record Lock Icon It indicates that the record lock is activated. This icon appears when you are recording video images while the record lock is set. To cancel the recording, enter the preset password. : PTZ Icon The channel that the PTZ function has been set shows the PTZ icon.
-
Page 22: Setting The Audio On/Off
Selecting live screen mode Each mode can be selected by using the mODe button and CH1 to CH4 buttons. The following figure shows the diagram of changing modes. 4 Split mODe button Auto Sequence The starting mode is the 4 split screen mode. Modes except for the full screen can be sequentially selected by using the mODe button. -
Page 23: Event Monitoring
Zoom function The Zoom function doubles the size of the selected area but it is active only in the full screen mode. The zoom setup area appears when the ZOOm button is pressed in the full screen mode. You can adjust the location of the zoom setup area by using the Direction () buttons. -
Page 24: Menu Setup
Press the meNU button in order to enter the menu screen. In order to use various DVR functions such as the system environment setup and search, you need to log on to the system with the proper user privilege. You can log on to the system by entering the user ID and password. - Page 25 Time/Date/Language Setup Date/Time/Language Setup Time Setup 2007-04-03 05:12:46 Date Type YYYY - mm - dd Time Type Language English move/Control Select Time Setup The following screen appears if the enter( is pressed. (GmT) Greenwich mean Time : D Year month Hour 2007...
-
Page 26: Group Authority
User Add/Del User manager - User Add/Del Group Group1 User ID user1 Group1 Password **** Group1 Group Group 1 Group2 Clear User Add You may enter “User ID” and “Password”. As for the group that the user can belong to, select one from “group1”, “group2”... -
Page 27: System Log
You can select “Yes”. The recorded data will not be deleted. Profile export Allows you to configure multiple DVR units with ease. This function is used when you export the profile currently set to the system to the storage device connected to a USB port. - Page 28 ReC Displays the recording information according to the recording event and schedule. System Displays the system start/stop, system access user and setup change information. Failure Displays the error information that occurs due to the hardware failure. System Log List Log Type C(Channel) C REC START/STOP C(Channel) A REC START/STOP...
- Page 29 Log Type Log Details Search SEARCH IN/OUT NETWORK CONNECTED Network NETWORK DISCONNECTED BACKUP AVI-OK/FAILED BACKUP SDB-OK/FAILED BACKUP SFx-OK/FAILED BACKUP USB PROBLEM DETECTED CD-ROM WRITE FAIL CD MEDIA SIZE FULL CD MEDIA NOT ExIST Description Login/Logout with the Search Mode Remote Software Connection Disconnecting the Remote Software Connection AVI Backup Success/Failure SDB Backup Success/Failure...
-
Page 30: Hdd Setup
After connecting the USB device (holding the DVR software) to a USB port, press the ( DVR software will be automatically searched. If the DVR software does not exist in the USB device, the upgrade version will not be displayed. Upgrade Version The software version to be upgraded will be shown. -
Page 31: Camera
DVR. Power cut or incorrect shutdown whilst the DVR is operating. (Refer to page 27: how to turn off DVR) Moving or causing any impact on the DVR during operation. -
Page 32: Camera Configuration
Then, select PTZ by using the or button. Escape from the change mode by pressing the enter ) button again. This product supports the protocols of Samsung, Vic., Pan., AD, Phi., Pel-D, Pel-P, Ern, Vcl., Dia., Kal., and Tech. Baudrate Select the PTZ Speed. -
Page 33: Monitoring
Remote Control Device Remote Control Device Baudrate 9600 move/Control Select This window allows you to control the functions of DVR by using the system controller keyboard (SSC-2000, SSC-5000). ID Selects the ID of the system controller keyboard. Baudrate Selects the transmission speed of the system controller (1200/2400/4800/9600/19200/38400). - Page 34 Spot Mode Spot Out monitoring Type Event Normal Duration 3 SEC Camera move/Control Select When you have two monitors, the Spot Out channel can be used for monitoring a specific channel on a dedicated monitor. event Duration Sets whether or not to run the Event Monitoring function for the Spot-out channel.
-
Page 35: Record Mode
RECORD mODE The details of the record menu are as follows: Record mode Video Size Quality Standard Standard Standard Standard Auto Detection Default Set the recording mode values to be applied when pressing the ReC button on the front panel. Video Size Set the screen size for recording. - Page 36 After event occurring, sets recording time in 5 seconds ~5 minutes, and 1 hours. If the 1-channel DVR support is set to On in the monitoring menu, the resolution is changed to Full D1. Alarm Detection Setup...
-
Page 37: Motion Detection Setup
Motion Detection Setup Motion Detection Setup Alarm-Out None Duration Sensitivity High Area Set Default Set the motion detection area, sensitivity and alarm for each camera video. Press the enter( ) button after moving the cursor on the camera to be set. Alarm Out It sets the alarm output when a motion is detected. -
Page 38: Record Schedule
Samsung Database (SDB): This is a proprietary data type of Samsung. Once data is backed up in SDB, the backup data are automatically copied into the SDB Viewer as well as the SDB. Typically, the SDB is used to back up mass storage data. -
Page 39: Network
SIZe SONY 512MB, 1GB, 2GB TRANSCEND 128MB, 2GB, 4GB SAMSUNG 1GB, 2GB AxxEN SANDISK 256MB Dadam 640MB LG xTICK AxIAN 256MB Camera Sets the camera channel for backup. Format It Supports USB-format functions. The backup file can be played on PC, but can not be played from a DVR. - Page 40 Keyboard Dialog User ID USER Password **** Shift Cancel Site IP Sets the IP address for the main system to be connected to the network. If the connection mode is set to STATIC-IP, the user needs to enter the IP address directly.
-
Page 41: Network Status
The DDNS site is selectable among SAMSUNG, DYNAMIC DDNS, NO IP and CHANGE IP. When SAMSUNG is selected, The IP will be registered to the DDNS being operated by Samsung Electronics. DYNAMIC DDNS, NO IP and CHANGE IP are the public DDNS websites that allow registering a dynamic IP and assigning a URL free of charge. -
Page 42: Ntp Setup
NTP enable When using the NTP function, please check the “NTP enable” box. When the DVR system time prior to operating the NTP setup function is set faster than the NTP standard time (in other words, the DVR... - Page 43 Alarm 1 Alarm 2 Alarm 3 Alarm 4 Transmission Setup from abcdef@samsung.com hijklmn@samsung.com SmTP Server mail.samsung.com When each event (Alarm In, Motion, Video Loss, and Record) is perceived, each callback messages as well as the camera images that inter-work with alarm input will be delivered to the e-mail address.
- Page 44 Usable Addreess Book Selected List abcdef01@samsung.com abcdef@samsung.com abcdef02@samsung.com hijklmn@samsung.com abcdef03@samsung.com mail.samsung.com abcdef04@samsung.com abcdef05@samsung.com Delete Delete SmTP Server: Enter the information on STMP Server. Press the enter ) button. Then, the window below will appear: STmP Server Information SmTP Server mail.samsung.com...
-
Page 45: Ptz Camera Control
If it is cancelled, the PTZ icon ( yellow color to the white color. If no PTZ control is used by the DVR for as long Cancel as 5 minutes, the PTZ mode is automatically cancelled. -
Page 46: Ptz Device Menu Setup
If you enter the single screen PTZ device control mode, the PTZ icon of the screen is changed from the white color to the yellow color. At this time, the PTZ menu setup window appears if the Search( )button is pressed. Samsung PTz mODEL Scan Autopan Setup... -
Page 47: Preset Name Settings
You can move to the built-in PTZ menu or set the value by using the direction () buttons on the front panel. Press the meNU button on the front panel to exit from the built-in camera menu. Back Samsung Scan Autopan Setup Pattern Delete... -
Page 48: Recording
recording REC(NORmAL RECORDING) All video image from the channels never recorded will be recorded by pressing the REC button. At this time, the REC LED lights and the record icon appears on the screen. The HDD LED on the front panel blinks while data are saved on the HDD. -
Page 49: Search And Play
search and play USER LOGIN Press the SeARCH button in order to enter the search screen. User Login Search Login User ID ADmIN Password move/Control Select In order to perform a search, the user with a relevant search right has to be logged on. You may log on as a relevant user by entering the user ID and password. -
Page 50: Search Channel Selection & Recording Graph
Live During Live mode instant playback can be started by pressing the Play/Pause ( the DVR will instantly playback recorded data 2 minutes prior to the button activation. In order to stop playing and change to LIVE mode, press the Stop button( And if the data position reaches to the end, the play stops and it becomes the pause state. - Page 51 Viewing One Scene at a Time If you press the left or right button( while the screen is paused, you can see still images forwardly or reversely. During reverse search, the interval between cuts may vary depending on the recording specification.
-
Page 52: Appendix
3. According to the model name or address type value, the displayed items are different. 48_ appendix When the address type is Static IP When the address type is URL When the address type is Samsung DDNS... - Page 53 When the address type is S1 DDNS 4. Input the values for each address type. 5. Enter the user ID and password and click Register. If Cancel is selected, the values return to the original settings. When the MAC address needs to be input depending on the firmware version, the MAC address is required to be input.
- Page 54 It is set on the phygical view tree. You can see and modify the registered device. To modify the registered device 1. Select View > Physical, or click the second icon tab on the VIEW TREE area. 2. Select the device you want to modify and click modify.
- Page 55 2. TOOLBAR area: You can directly execute several functions or applications. When listed from left to right, the tools are Connect/ Disconnect, Search Viewer, Setup Tool, Save Snapshot, Print Snapshot, Add a Bookmark, Remove the Selected Tile, Start Recording on All Tiles, Stop Recording on All Tiles, and Alarm Indicator.
- Page 56 Net I Search Viewer The Search Viewer screen consists of five separate areas: 1. me NU area: You can see and perform the functions in various menus. 2. TOOLBAR area: You can directly execute several functions or tools. When listed from left to right, the tools are Connect, Live Viewer, Setup Tool, Pattern, Digital Zoom, and Remove Selected.
-
Page 57: System
Click OK. SYSTEm System Setup Displays the current Date/Time, Language, and HDD condition of DVR system. Select Date/time and Language set up and save. 1. Data/Time Setup: You can set up Date/Time, Standard Time line, and DST. When you change Date/Time, Standard Time line, and DST, disconnect with Server. - Page 58 User Administration 1. edit Password: This option is used to edit password and Recording Lock settings for the ADMIN account. Enter the current password and a new password. Confirm the new password and then click OK to apply. 2. Add/Remove User: This option is used to create and delete user accounts.
-
Page 59: Camera
PTZ Device Settings Your DVR system supports remote control of external devices such as a PTZ or a Speed Dome. Before using this feature, however, you will first need to connect the external device to the system via the RS485 port and configure the connected external device. -
Page 60: Monitoring Mode
mONITORING mODE Live mode This tab is used to configure the necessary information for Live Mode. 1. event monitoring Duration: Completely disable event monitoring or configure the event monitoring duration. 2. Text Display: Enable/disable various text display options, including date, time, camera name, and sensor mode. Spot mode This tab is used to configure the necessary information for Spot Mode. -
Page 61: Event Recording Mode
3. Recording Schedule Display: Allows the user to schedule various recording modes for individual cameras. Select a desired recording mode and drag using the mouse to designate the timeframe. 4. Recording mode: Displays various recording modes that are available. Select a desired recording mode and drag over to the schedule line using the mouse to assign. - Page 62 motion Detection Settings Motion detection is a feature capable of starting recording, sounding an alarm, and transmitting an emergency message upon detection of motion by an activated camera. 1. Camera: Select the camera channel you wish to configure. 2. motion Detection Zone: Used to define a camera’s motion detection zone.
-
Page 63: Network
This tab contains DDNS server settings. 1. DDNS Configuration: Select from Samsung, Dynamic DDNS, No IP, and Change IP. - Selecting Samsung will make host name, user ID, and password non-configurable. For these settings, default values will be used. 2. Host Name: Enter the DDNS server name. -
Page 64: Sdb Viewer
Image Transmission Settings This tab contains video transmission settings (frame rate, resolution, picture quality). 1. Reset: Resets all settings to their default values. 2. Frame Rate: Used to adjust the frame rate of individual cameras. 3. Picture Quality: Used to configure the picture quality of individual cameras. - Page 65 Main Window of SDB Viewer Scrolling Camera Buttons: This function allows you to scroll up or down the button for the camera to be searched. Camera: Select the number of the camera to be searched. Once you click the number, the colors of the button and camera number will change.
- Page 66 Zoom ( ): This function enables saved images to be zoomed out or in. It supports zooming out images in five steps. Digital Zoom: Click the Digital Zoom button sequentially to switch to [Zoom out/Zoom in/Transfer]. Zoom Out( ): Right-click a part of the image to zoom out the image step by step centering on the part.
-
Page 67: Sfx Player
SfX PLAYER SFX Player Execution This feature moves SFx backup files to the designated SFx storage folder after the system is connected to your PC. The SFx format files are named with the ‘.exe’ extension as shown below. Double-click an execution file (.exe file) and the video player plays back the backup data. -
Page 68: System Requirements
1. Open your web browser and type the IP address or URL of DVR into the URL address box. The basic URL of the DVR is as following in case of MAC address : If the MAC address is 00-0c-8c-ab-cd- ef, domain will be shown as “habcdef. - Page 69 3. Click “Install ActiveX Control…” 4. Click “Install”. 5. Click “Install”. 6. You may have “Windows Security Alert” that attempts to block this with the Windows Firewall. In that case, click “Unblock” to start Web Viewer. 7. Installation is complete. Now you can see the main screen of Live Viewer.
-
Page 70: Using Live Viewer
2 If the video data of the current channel is being recorded on your PC, “REC” appears on the screen. 3 The current date and time of the DVR are displayed. 4 Alarm icon appears when alarm is issued. It disappears when pressed the ALRAm button of the DVR. -
Page 71: Full Screen Mode
6 It displays whether the PTZ controls are active. If you have set PTZ cameras for the DVR, “PTZ” is displayed on the screen. Select a PTZ camera channel and use the PTz button for camera control. SPLIT-SCREEN You can change the split mode by clicking each number icon. - Page 72 CAPTURE: Captures the current picture on the screen • and saves it as a jpg or bmp image file. • The default saving path is “C:\Program Files\ Samsung\Dvr Web Viewer\SnapShot\Live”. To change the saving path, click “SAVE PATH” button( ) and then select the path you want.
-
Page 73: Using Ptz Camera
• To record it, it is required at least 1GB of avail- able space. • The default saving path is “C:\Program Files\ Samsung\Dvr Web Viewer\VideoClip\Live”. To change the saving path, click “SAVE PATH” button( ) and then select the path you want. - Page 74 • The PTZ camera controls can be used by the admin user. • The Camera Menu Setup function is available only supported cameras. • All function of PTZ is same as one of DVR. • Power pan/tilt function operates only with supported cameras. (Example: Samsung SCC-2315) •...
-
Page 75: Using Search Viewer
USING Search Viewer The Search Viewer screen consists of following: 1 This displays the IP address and the model name of the connected DVR. 2 These menus consist of LIVE, SEARCH, SETUP, ABOUT. 3 These buttons are used for the screen split and full screen mode. - Page 76 DVR in “QUAD mODE”. • Only SINGLE and QUAD mODE are available in SEARCH menu. • When 16-channel DVR is connected, you can select the channels ranging from 1 to 16. CONNECTED DVR This displays the IP address and the status of the connecting DVR.
- Page 77 • during playback (only play), the video data is saved in a DVR file. (It is saved in the designated folder on your PC.) To stop recording, click this button again. • To record it, it is required at least 1GB of avail- able space.
-
Page 78: Controlling Playback
SEARCHING THE RECORDED VIDEO IN THE TIMELINE It displays the recorded video data status on the DVR after a date is selected. The normal mode displays the time ranging from 0 to 24 Hours while the extension mode displays the time every 2 hours. -
Page 79: Pop-Up Menu
You can use this menu by pressing mouse-right button. Items shown on the pop-up menu are identical with buttons at system’s front panel. The benefit of this menu is that user can operate DVR system by simply using mouse. Names... - Page 80 Names Direction button FREEZE button It executes Freeze feature at Live screen. Fast/Step Reverse Fast/Step Forward Play/Pause Stop 76_ appendix Features This button controls PTZ directions at PTZ mode. If user press Enter button, the pop-up menu will disappear. Fast Reverse: It performs a search in reverse direction quickly while playing the video.
-
Page 81: Specifications
Backup Type Dimension Weight Power OPERATING TEMP/HUDI STROAGE TEMP / HUDI SHR-6040 Embedded Linux (Version : 2.6.0) MPEG-4 ASP G.723 Composite 4 channel(1Vp-p, 750hm) CVBS 1 Port, VGA(1280x1024) 1 Port, SPOT 1 Port, Loop Through Out 4 channel 4 Channel Recording/1channel Output... -
Page 82: Outline Drawings
OUTLINE DRAWINGS 78_ appendix... -
Page 83: Troubleshootings(Faq)
Check if the monitor’s power cables are all connected properly. Check if the monitor’s power button is pressed ON. Check if the output data cable of SHR-6040/6042 system is properly connected to the monitor. Disconnect the power cable and connect it. - Page 84 Check if these cables are shorted, mixed or disconnected. Check the surroundings of cable connections between camera and SHR-6040/6042. Check if there is any high-voltage power line around the cable connections. If there is any high-voltage power line nearby the cable connections, it might degrade video image quality or causes noises.
-
Page 85: Open Source License Report On The Product
OPEN SOURCE LICENSE REPORT ON THE PRODUCT This product uses software provided under the name of GPL and LGPL. You can receive the following GPL and LGPL source codes by email request to www.sec.co.kr. GPL Software Kernel, Busybox, Sysvinit, dvd+rw-tools, cdrtools, dosfstools LGPL Software gLibc, Inetutils GNU GENERAL PUBLIC LICENSE... - Page 86 constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does. 1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of...
- Page 87 otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
- Page 88 REPAIR OR CORRECTION. 12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY...
- Page 89 and change free software to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it.
- Page 90 a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”. A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to...
- Page 91 of the code of the Library into a program that is not a library. 4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must...
- Page 92 executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute. 7.
- Page 93 Foundation. 14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation;...
-
Page 94: Openssl License
OpenSSL LICENSE * Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved. * Redistribution and use in source and binary forms, with or without * modification, are permitted provided that the following conditions * are met: * 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Page 95 “This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)” The word ‘cryptographic’ can be left out if the rouines from the library being used are not cryptographic related :-). * 4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement:...
- Page 96 Correct Disposal of This Product (Electrical Waste & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
