Connect Cables - Humminbird AS RC Operation Manual

C C
ABLES (R
ONNECT
Refer to the section for your control head to perform the following procedures:
• Connect the dongle to the control head
• Connect a GPS Receiver to the dongle (optional, depending on your network configuration)
WARNING! Turn off power for all related equipment before you start the installation.
NOTE: Refer to your control head installation guide for additional information about
connecting cables.
NOTE: Extension cables may affect performance.
ONIX
To connect the dongle to the ONIX control head, you will
need the AS GPS NMEA accessory cable.
1. Connect the Dongle to the Control Head
1. Connect the AS GPS NMEA cable connector to the
dongle cable connector.
2. Route the AS GPS NMEA cable to the control head.
3. Connect the cable connector to the NMEA 0183
(1-2) port on the back of the control head.
4. Hand-tighten the screw nut to secure the
connection.
2. Connect the GPS Receiver to the Dongle
(optional)
If you have an external GPS Receiver connected to your
network, use the following instructions to connect the GPS
to the dongle.
1. Route the GPS cable to the dongle.
2. Connect the GPS cable connector to the dongle
cable connector.

Connect Cables

D
EMOTE WITH ONGLE
13
)

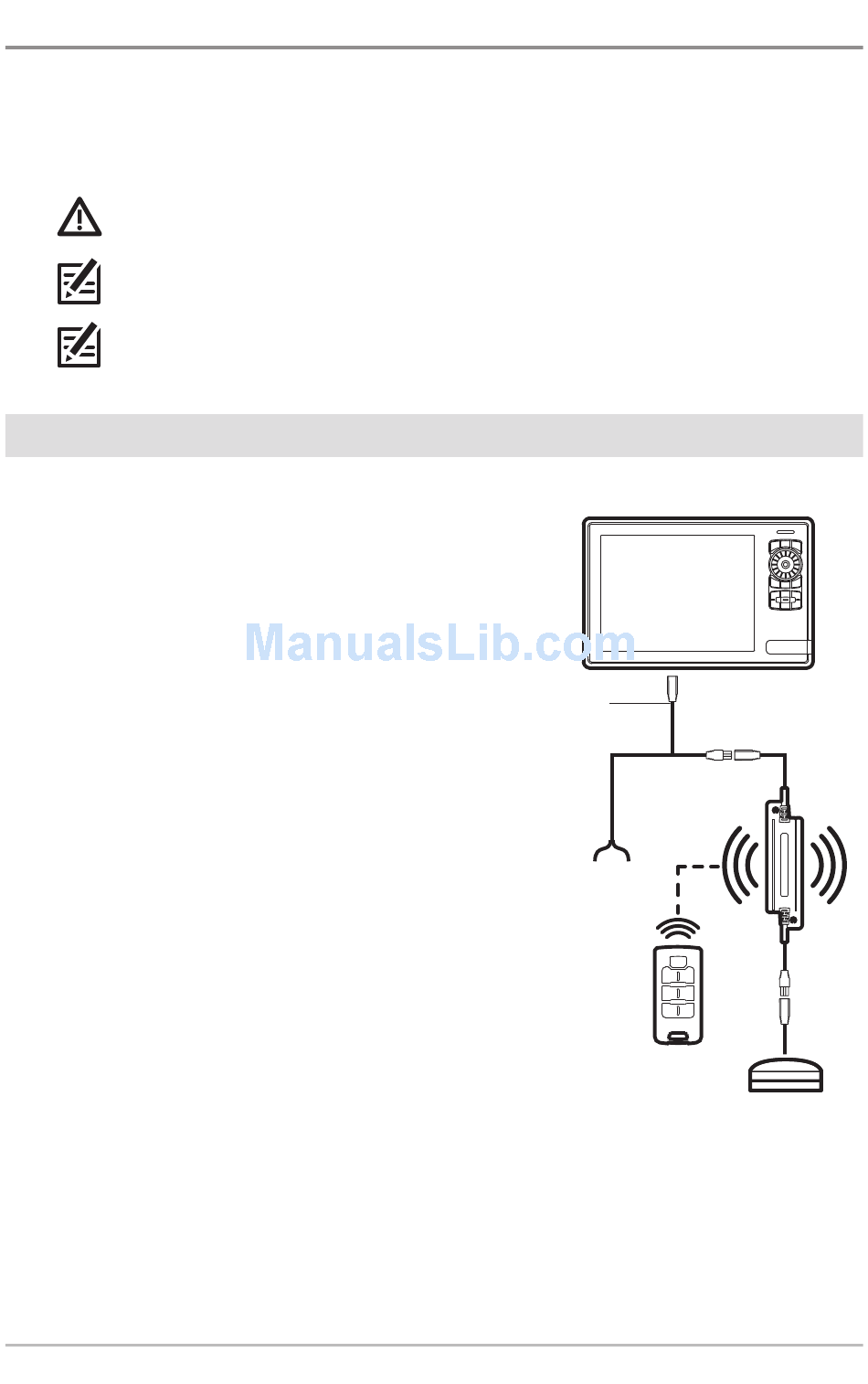

ONIX Configuration
AS GPS
NMEA cable
remote
dongle
GPS (optional)
