2 | Install the Dongle

Once you have determined the mounting location, perform the following procedures to install the
dongle on your boat.
1. Set the dongle in place on the mounting surface. Mark the two mounting screw locations
with a pencil, and set the dongle aside.
2. Drill the two mounting holes using a 7/64" drill bit.
NOTE: On fiberglass hulls, it is best to use progressively larger drill bits to reduce
the chance of chipping or flaking the outer coating.
NOTE: If the mounting surface is thin or made of lightweight material, you may
need to add reinforcing material below the mounting surface in order to support
the dongle.

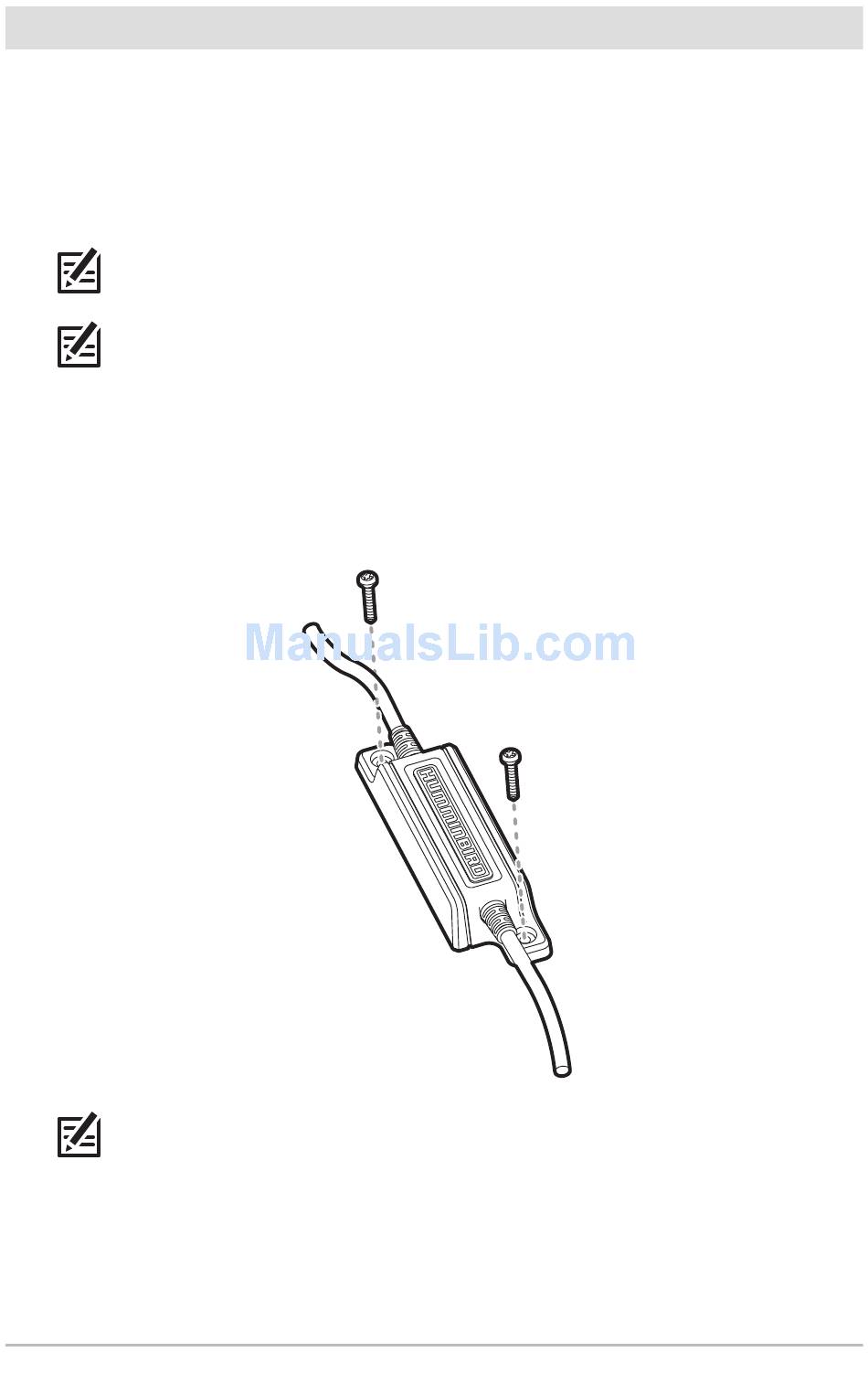

3. Place the dongle on the mounting surface and align the screw holes with the drilled
mounting holes. Insert the two #6-20 screws (included) through the screw holes and into
the drilled mounting holes. Hand-tighten using a Phillips screwdriver. Hand-tighten only!
NOTE: Apply marine-grade silicone caulk or sealant (separate purchase required)
to both screws and drilled holes as needed to protect your boat from water damage.
Installing the Dongle on the Boat
