TI00443C/07/EN/17.14
71267559
Application

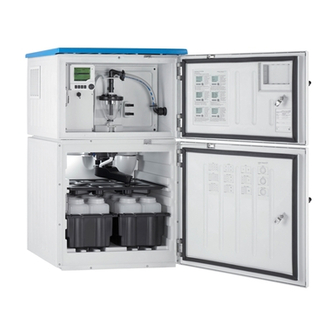

Liquistation CSF48 is a stationary sampler designed for the fully
automated removal, defined distribution, and temperature-
controlled storage of liquid media. The standard product version
has two 0/4 to 20 mA analog inputs, two binary inputs and two
binary outputs. Thanks to the modular platform concept, the
CSF48 can be quickly and easily modified to create a measuring
station.
• Municipal and industrial sewage treatment plants
• Laboratories and Water Conservancy Boards
• Monitoring of liquid media in industrial processes
Products
Technical Information
Liquistation CSF48
Automatic stationary sampler for liquid media
Integrated controller with up to four measuring channels
and optional digital Memosens technology
Solutions
Your benefits
• Four different kinds of housing material
• Two-door housing for reliable sample temperature regulation
• Air circulation in both the upper and lower enclosure
• Swift menu guidance, navigator and large display
• Dual bottle trays for easy sample transportation
• Practice-oriented programs ranging from simple time
programs to event programs
• Functionality can be extended by installing modular
electronic components
• Integrated data logger for recording measured values
• Service interface for data transmission
• Optional battery backup system ensures uninterrupted
operation in the event of power failure
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Liquistation CSF48

Summary of Contents for Endress+Hauser Liquistation CSF48

  • Page 1 Integrated controller with up to four measuring channels and optional digital Memosens technology Application Your benefits Liquistation CSF48 is a stationary sampler designed for the fully • Four different kinds of housing material automated removal, defined distribution, and temperature- • Two-door housing for reliable sample temperature regulation controlled storage of liquid media.

  • Page 2: Table Of Contents

    Protocol-specific data ......24 Liquistation CSF48 sampler ......4 HART .
  • Page 3 Accessories ........39 Accessories for Liquistation CSF48 ..... . 39 Sensors .

  • Page 4: Function And System Design

    Function and system design Liquistation CSF48 sampler A complete sampling unit comprises: Liquistation CSF48 for open channels include the following, depending on version: • Controller with display, soft keys and navigator • Vacuum or peristaltic pump for sampling • PE or glass sample bottles for sample preservation •...

  • Page 5: Liquistation Csf48 Sampler With Samplefit Csa420 Sampling Assembly

    Distribution arm a0015868 Gland for suction line Example of a Liquistation CSF48 with CSA420 sampling assembly Example of Samplefit CSA420 sampling assembly with flange connection a0015913 Samplefit CSA420 sampling assembly with flange connection DN50, PP Example of Samplefit CSA420 sampling assembly with triclamp connection...

  • Page 6: Sampler With Online Measurement

    A complete measuring system with online measurement • Viomax CAS51D sensor consists of: with fixed cable • Liquistation CSF48 sampler • Flexdip CYA112 assembly • Sensors with Memosens technology • Flexdip CYH112 holder • Immersion or flow assemblies to suit the sensors used...

  • Page 7: Mode Of Operation With A Vacuum Pump

    Liquistation CSF48 Mode of operation with a vacuum pump a0011582 Sampling with a vacuum pump Sampling takes place in four steps: Blow clear The hose valve is closed. The vacuum pump blows the suction line clear via the dosing system.
  • Page 8 Liquistation CSF48 Dosing system with capacitance sample sensor a0011597 Capacitance dosing system Hose connection for the vacuum pump Graduated dosing beaker Graduated dosing tube, white and blue scale Capacitance level sensor Level detection principle When the level of medium in the dosing beaker changes, the capacitance of a capacitor partly formed by the liquid also changes.

  • Page 9: Mode Of Operation With A Peristaltic Pump

    Liquistation CSF48 Mode of operation with a peristaltic pump a0011584 Sampling steps with a peristaltic pump Sampling takes place in three steps: Rinse The peristaltic pump runs in reverse and forces medium back to the sampling point. Intake The peristaltic pump runs forward and draws in medium. If the medium detection system detects the sample, the pump is controlled by the flow and the specified sample volume is calculated automatically.

  • Page 10: Mode Of Operation With A Sampling Assembly

    Liquistation CSF48 Mode of operation with a sampling assembly a0015917 Sampling steps with a sampling assembly Sampling takes place in three steps: Standby position The plunger is in standby position in the assembly. The sample chamber is ventilated from the outside.

  • Page 11: Sampling With A Flow Assembly

    Liquistation CSF48 Sampling with a flow A flow assembly is integrated in the stand for sampling purposes. assembly The flow assembly is used when sampling in pressurized systems, e.g.: • Containers located at a higher level • Pressurized pipes • Pumping with external pumps The flow rate should be 1000 to 1500 l/h.

  • Page 12: Sample Distribution

    Liquistation CSF48 Sample distribution CSF48 offers a wide range of bottle combinations and distribution versions. The versions can be changed or replaced easily without the need for special tools. In addition, the software program makes it possible to configure individual bottles and bottle groups and assign them to switchover or event programs.
  • Page 13 Liquistation CSF48 Bottle groups and distribution version depending on the order version: CSF48-****** 30 liter, PE, direct distribution 60 liter, PE, direct distribution 25 liter, PE, direct distribution 17 liter, PE, direct distribution 13 liter, PE, direct distribution 5 liter, glass, preparation 3.8 liter, glass,...
  • Page 14 Liquistation CSF48 CSF48-****** 1 liter, PE, 12 12 plate distribution 1 liter, glass, plate distribution 13 liter, PE, plate distribution 2 liter, PE, direct distribution 1 liter, PE, 24 12 direct distribution 1.8 liter, glass, plate distribution Endress+Hauser...

  • Page 15: Sampling Control

    Liquistation CSF48 Sampling control a. Flow curve b. Time-proportional sampling A constant sample volume (e.g. 50 ml) is taken at regular intervals (e.g. every 5 min). c. Volume-proportional sampling A constant sample volume is taken at variable intervals (depending on the inflow volume).

  • Page 16: Sample Temperature Regulation (Optional)

    Liquistation CSF48 Sample temperature The temperature of the sample compartment can be adjusted using the controller. The factory setting regulation (optional) is 4 ˚C (39 ˚F). The current temperature is shown on the display and recorded in the internal data logger.

  • Page 17: Equipment Architecture

    Liquistation CSF48 Equipment architecture Slot and port assignment a0016633-en Slot and port assignment of hardware and how this information appears on the display The electronic components are modular in design: • There are several points available to connect electronic modules. These are known as "slots".

  • Page 18: Communication And Data Processing

    Liquistation CSF48 Communication and data processing Communication types: • Fieldbuses – HART – PROFIBUS DP (Profile 3.02) – Modbus TCP or RS485 • Configuration via Ethernet • EtherNet/IP Only one type of fieldbus communication can ever be active. The last activation code entered determines which bus is used.

  • Page 19: Maintainability

    Liquistation CSF48 Sensor Condition Check (SCC) This function monitors the electrode status or the degree of wear and tear on the electrode. The status is conveyed via the messages "SCC electrode status bad" or "SCC electrode status satisfactory". The electrode status is updated following each calibration.
  • Page 20 Liquistation CSF48 a0015032 Data logbook: Graphic display Mathematical functions (virtual process values) In addition to "true" process values provided by connected physical sensors or analog inputs, you can have maximum 6 "virtual" process values calculated using mathematical functions. The "virtual" process values can be: •...

  • Page 21: Safety

    Endress+Hauser offers industry-approved SD cards as accessories. These memory cards provide maximum data security and integrity. Other SD cards can also be used. However, Endress+Hauser does not accept any responsibility for the data security of such cards. Safety Real-time clock The device contains a real-time clock.

  • Page 22: Temperature Inputs

    Liquistation CSF48 Temperature inputs Measuring range -30 to 70 ˚C (-20 to 160 ˚F) Input type Pt1000 Accuracy ±0.5 K Binary input, passive Span 12 to 30 V, galvanically isolated Signal characteristics Minimum pulse width: 100 ms Analog input, passive/active...

  • Page 23: Signal On Alarm

    Liquistation CSF48 PROFIBUS DP Signal coding EIA/TIA-485, PROFIBUS-DP-compliant acc. to IEC 61158 Data transmission rate 9.6 kBd, 19.2 kBd, 93.75 kBd, 187.5 kBd, 500 kBd, 1.5 MBd, 6 MBd, 12 MBd Galvanic isolation Connectors Spring-cage terminal (max. 1.5 mm), bridged internally in the...

  • Page 24: Relay Outputs (Optional)

    Liquistation CSF48 2.4 to 23 mA for HART communication Signal characteristic Linear Electrical specification Output voltage: Max. 24 V Cable specification Recommended: shielded cable Max. 2.5 mm (14 AWG) Relay outputs (optional) Electrical specification of Relay types relay types • 2 x changeover contact, coupled with binary output (optional) •...

  • Page 25: Protocol-Specific Data

    Liquistation CSF48 • Min. 1 mA with 24 V DC • Min. 5 mA with 24 V AC • Min. 1 mA with 230 V AC Protocol-specific data HART Manufacturer ID Device type 119C (CM44x), 119D (CSFxx) Device revision HART version Device description files (DD/DTM) www.endress.com...

  • Page 26: Web Server

    • Access to web server via DTM or Internet Explorer Power supply Electrical connection --> For a detailed wiring diagram, see the Operating Instructions for Liquistation CSF48 Supply voltage Depending on version: • 100 to 120/200 to 240 V AC ±10 %, 50/60 Hz •...

  • Page 27: Cable Entry

    Liquistation CSF48 NOTICE The device does not have a power switch ‣ A fuse with a maximum rating of 10 A must be provided by the customer. Observe the local regulations for installation. ‣ For samplers with CSA approval, use a 10 A 250 V AC HBC fuse.

  • Page 28: Repeatability

    Liquistation CSF48 Repeatability • Vacuum pump: 5 % • Peristaltic pump: 5 % • Sampling assembly: 5 % Intake speed (vacuum pump / > 0.5 m/s (> 1.6 ft/s) for ≤ 13 mm (1/2") ID, in accordance with EN 25667, ISO 5667 peristaltic pump) >...

  • Page 29: Installation

    Liquistation CSF48 Installation Installation instructions Foundation plan 730 (28.7) 311 (12.2) 305 (12.0) 255 (10.0) 302 (11.9) 214 (8.43) 786 (30.9) a0012761 Foundation plan Fasteners (4 x M10) Cable inlet Outlet for condensate and overflow > DN 50 Sample supply from below > DN 80...

  • Page 30: Mounting Conditions For Liquistation Csf48

    Liquistation CSF48 Mounting conditions for Liquistation CSF48 a0011693 Mounting conditions for Liquistation CSF48 for open channels Correct The suction line must be routed with a downward gradient to the sampling point. Incorrect The sampler should never be mounted in a place where it is exposed to aggressive gases.

  • Page 31: Installation Conditions For Samplefit Csa420 Sampling Assembly

    Installation conditions for Liquistation CSF48 with Samplefit CSA420 sampling assembly Note the following when installing the sampling assembly in a pipe: • The best installation location is in the ascending pipe (pos. 2). Installation is also possible in the horizontal pipe (pos.

  • Page 32: Environment

    Liquistation CSF48 Environment Ambient temperature range • With temperature regulator -20 to 40 ˚C (0 to 100 ˚F) • Without temperature regulator 0 to 40 ˚C (32 to 100 ˚F) • For ASA+PC or stainless steel housing: -20 to 40 ˚C (0 to 100 ˚F) •...

  • Page 33: Process Connection Samplefit Csa420 Sampling Assembly

    Liquistation CSF48 Process connection Samplefit CSA420 sampling assembly a0016245 Process connections, Samplefit CSA420 sampling assembly Triclamp DN50, 50ml version Triclamp DN50, 30ml version Triclamp DN50, 10ml version Flange DN50, 50ml version Flange DN50, 30ml version Flange DN50, 10ml version Endress+Hauser...

  • Page 34: Mechanical Construction

    Mechanical construction Dimensions 625 (24.6) 471 (18.5) 753 (29.7) 355 (14.0) 125 (4.9) 816 (32.1) 625 (24.6) 471 (18.5) 753 (29.7) 355 (14.0) 125 (4.9) 816 (32.1) a0013080 Dimensions of plastic version of Liquistation CSF48 without/with stand Suction line connection Endress+Hauser...

  • Page 35: Weight

    624 (24.6) 467 (18.4) 743 (29.3) 355 (14.0) 125 (4.9) 816 (32.1) a0013082 Dimensions of stainless steel version of Liquistation CSF48 without/with stand Suction line connection Weight CSF48 sampler version Weight Plastic version without cooling module 91 kg (201 lbs)

  • Page 36: Material

    Liquistation CSF48 Material Plastic polystyrene VO can change color when exposed to direct sunlight. For outdoor use without a weather protection cover, the use of Plastic ASA+PC V0 is recommended. The functionality is not affected by the discoloration. Non-wetted parts...

  • Page 37: Operability

    Liquistation CSF48 Operability Operating concept The simple and structured operating concept sets new standards: • Intuitive operation with the navigator and soft keys • Fast configuration of application-specific measurement options • Easy configuration and diagnosis thanks to plain-text display • All languages that can be ordered are available in every device...

  • Page 38: Remote Operation

    Liquistation CSF48 Remote operation Via HART (e.g. via HART modem and FieldCare) a0015608 HART via modem Base L or E device module: Current output 1 with HART HART modem for connection to PC, e.g. Commubox FXA191 (RS232) or FXA195 (USB)

  • Page 39: Communication

    Liquistation CSF48 Via Modbus RS485 a0015875 Modbus RS485 Terminating resistor Via Ethernet/web server/Modbus TCP/EtherNet/IP a0015876 Modbus TCP and / or Ethernet Communication • 1 service interface • Optionally on front panel • Commubox FXA291 (accessory) required for communication with the PC...

  • Page 40: Ordering Information

    Now export the order code as a PDF file or Excel file. To do so, click the appropriate button at the top of the page. Scope of delivery The scope of delivery comprises: • 1 Liquistation CSF48 with: – The ordered bottle configuration – Optional hardware • Accessories kit For peristaltic or vacuum pump: –...

  • Page 41: Accessories

    Liquistation CSF48 Accessories The most important accessories that could be delivered at the time this document went to print are listed below. For accessories not listed here, please contact your service department or sales center. Accessories for Liquistation Order no.

  • Page 42: Sensors

    Liquistation CSF48 Terminated hose; vacuum pump 71111188 Dosing hose to distributor, 2 pcs, material: silicon 71111189 Dosing hose to distributor, 25 pcs, material: silicon Terminated hose; peristaltic pump 71111191 Pump tubing, 2 pcs; material: silicon 71111192 Pump tubing, 25 pcs; material: silicon Communication;...
  • Page 43 Liquistation CSF48 Ceragel CPS71D • pH sensor with Memosens technology • Double-chamber reference system and integrated bridge electrolyte • Order as per product structure (--> Online Configurator, www.products.endress.com/cps71d) • Technical Information TI245C/07/EN Orbipore CPS91D • pH sensor with Memosens technology •...
  • Page 44 Liquistation CSF48 Orbipore CPS92D • ORP sensor with Memosens technology • Open aperture diaphragm for media with high dirt load • Order as per product structure (--> Online Configurator, www.products.endress.com/cps92d) • Technical Information TI435C/07/EN pH ISFET sensors Tophit CPS471D • Sterilizable and autoclavable ISFET sensor with Memosens technology •...

  • Page 45: Measuring Cable

    Liquistation CSF48 Oxymax COS22D • Sterilizable sensor for dissolved oxygen • Order as per product structure (--> Online Configurator, www.products.endress.com/cos22d) • Technical Information TI446C/07/EN Chlorine sensors CCS142D • Membrane-covered amperometric sensor for free chlorine • Memosens technology • Measuring range 0.01 to 20 mg/l •...
