Endress+Hauser Liquistation CSF48 Technical Information

Technical Information

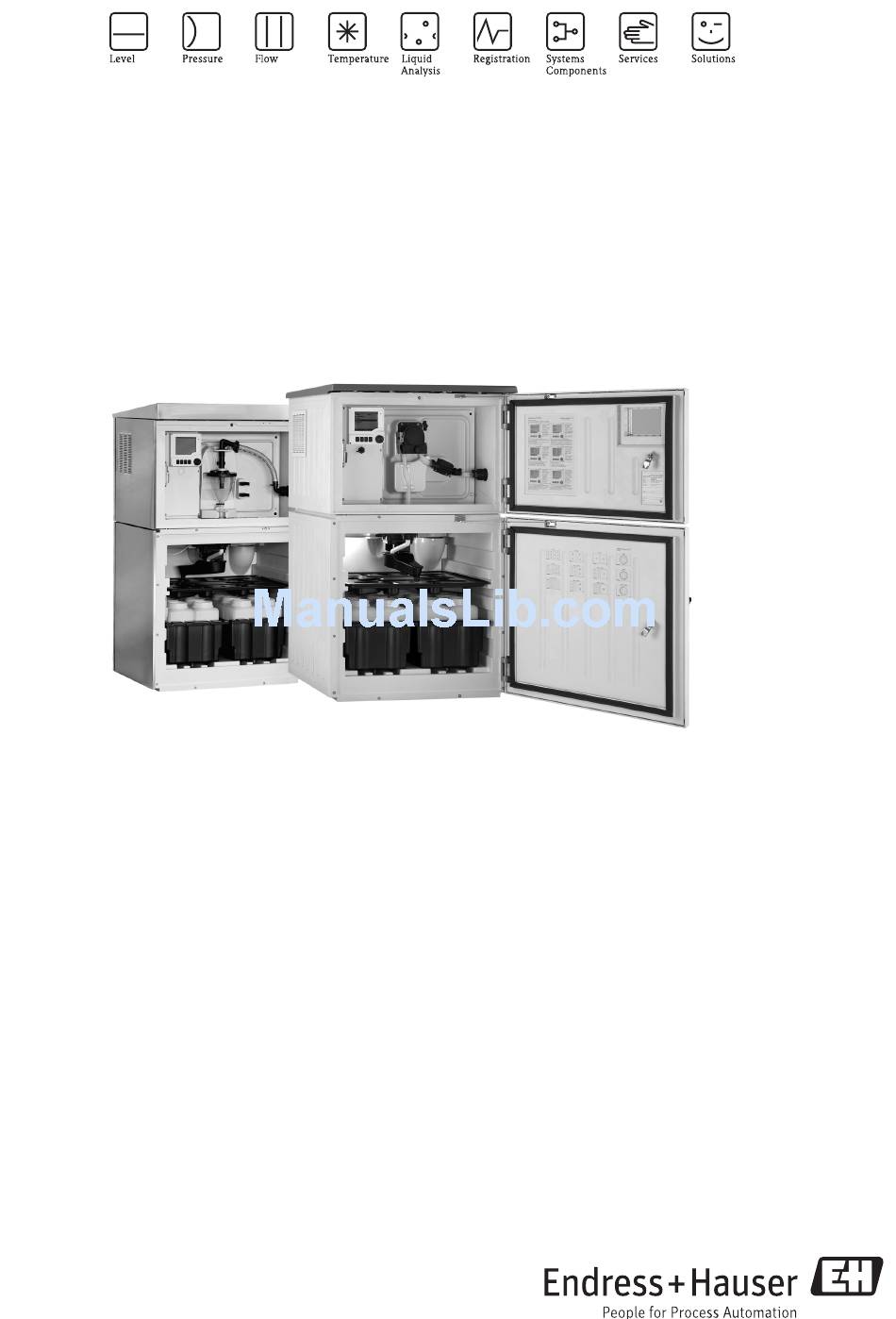

Liquistation CSF48
Automatic stationary sampler for liquid media
Integrated controller with up to four measuring channels and optional
digital Memosens technology
Application
Liquistation CSF48 is a stationary sampler designed for the fully
automated sampling, defined distribution, and
temperature-controlled storage of liquid media.
The standard product version has two 0/4 to 20 mA analog
inputs, two binary inputs and two binary outputs.
Thanks to the modular platform concept, the sampler can be
quickly and easily modified to create a measuring station.
The sampler is designed for use in the following applications:
• Municipal and industrial sewage treatment plants
• Laboratories and Water Conservancy Boards
• Monitoring of liquid media in industrial processes
Depending on the version ordered, one to four digital sensors
with Memosens technology can be connected to the CSF48.
Furthermore, two to six 0/4 to 20 mA analog outputs are
available, as well as a switching and cleaning function with up
to four relays and an alarm relay.
TI00443C/07/EN/14.11
71143261
Your benefits
• Rugged and reliable:
– Four different kinds of housing material
– Two-door housing for reliable sample temperature
regulation
– Optimal air circulation in both the upper and lower
enclosure
• Simple and easy to use:
– Swift menu guidance, navigator and large display
– Two bottle trays for easy sample transportation
– Parts carrying medium are easy to disassemble, making
cleaning and maintenance simple
• Flexible:
– User friendly programs ranging from simple time programs
to event programs
– Functionality can be extended by installing modular
electronic components
– Sample can be supplied from righthand side or from below
• Communicative:
– Integrated data logger for recording measured values
– Service interface for data transmission
• Safe:
– Optional battery backup system ensures uninterrupted
operation in the event of power failure
– Touch-safe low-voltage supply for electronic components
