Commissioning
5.5 Using QuickConnect
QuickConnect sequence
Using a robot system as an example:
1. The controller inhibits current connections to QuickConnect modules, and the robot arm
physically disengages the current tool.
2. The robot arm physically attaches a new QuickConnect module.
3. The new QuickConnect module powers up.
4. The controller acknowledges a successful attachment to a new tool via an electrical lock
signal.
5. Upon receiving the electrical lock signal, the controller waits for the devices to start up
before uninhibiting a new set of I/O connections and then connects to the new
QuickConnect module.
6. When all connections are established, the robot is ready for operation.
Procedures for using QuickConnect
Port parameter
Negotiation
Rate
Duplex
Auto-MDIX
To enable the use of QuickConnect, perform the following steps:
1. Connect the ET 200pro EtherNet/IP module to a managed switch with the switch port set
to autonegotiation off and auto crossover (auto-MDIX) off, with the same fixed baud rate
and duplex as the device. You can use an EtherNet straight-through cable (1:1) by
connecting to Port 2 on the ET 200pro EtherNet/IP module because Port 2 is crossed
over internally. (A connection to Port 1 on the ET 200pro EtherNet/IP module would

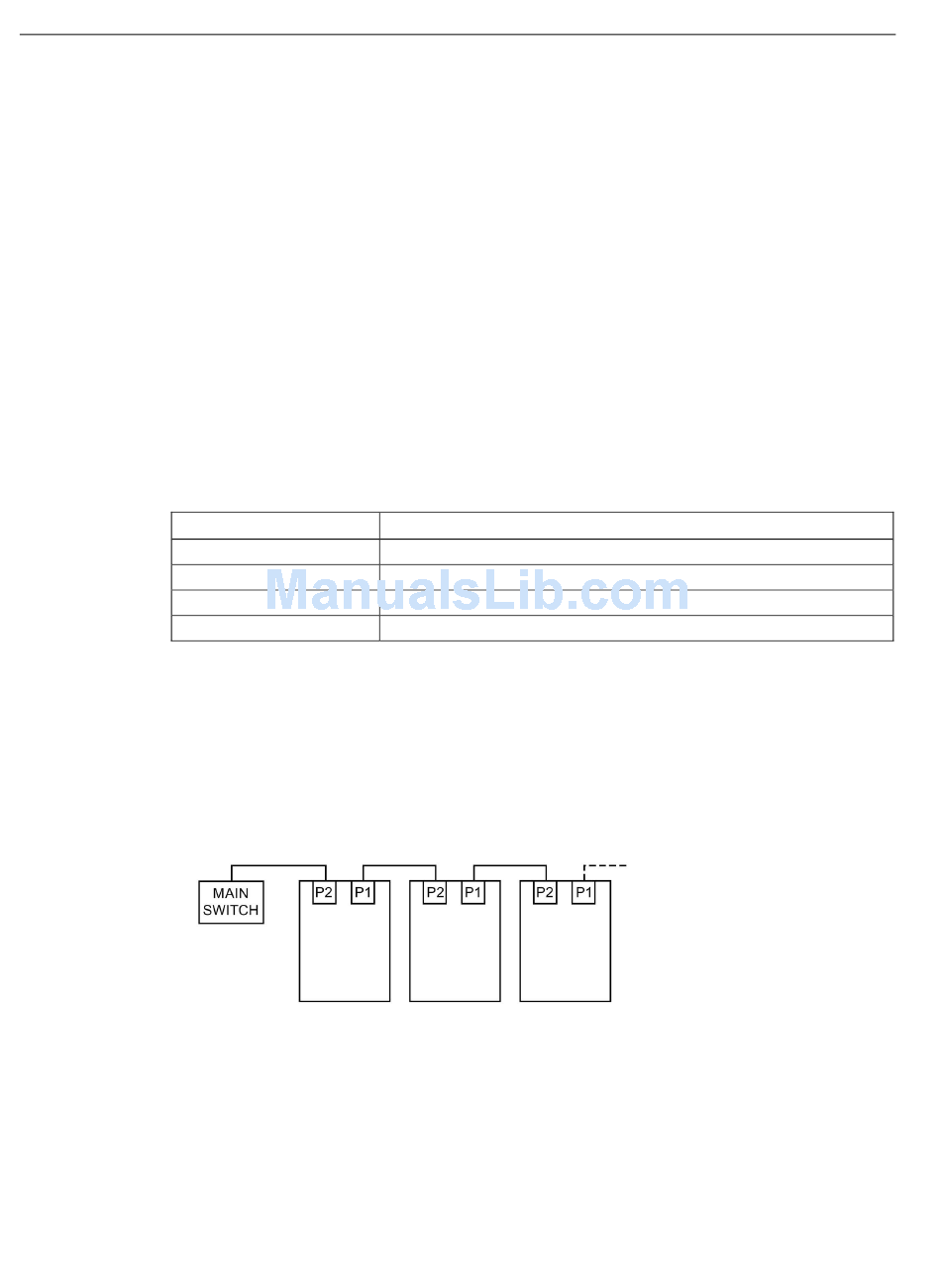

require a crossover cable). Another option is to have more than one ET 200pro module
set up this way and connect them in a daisy chain with Port 2 of one device connected to
Port 1 of the other. This can be done with straight-through cables.
2. Use the EIP ET200 Configuration Tool, turn autonegotiation off and set a fixed baud rate
and duplex.
3. Turn on QuickConnect with the Configuration Tool.
62
Setting
Off
100 Mbps
Full
Off
ET 200pro distributed I/O EtherNet/IP interface module
Manual, 03/2016, A5E32861915-AB
