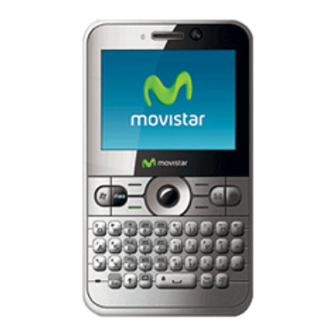

R1010 WCDMA/GSM/GPRS
Mobile Phone
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Zte R1010

Summary of Contents for Zte R1010

  • Page 1 R1010 WCDMA/GSM/GPRS Mobile Phone User Manual...

  • Page 2: All Rights Reserved

    ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.

  • Page 3: Limited Warranty

    LIMITED WARRANTY ZTE warrants to the original purchaser that the cellular product and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: 1. WHAT THIS WARRANTY COVERS: (1) The limited warranty for the handset remains in effect for a period of 24 months based on the date of purchase (except for the battery, where the warranty period shall be 6 months).

  • Page 4: Product Safety Information

    (7) Damage resulting from the use of non-ZTE approved accessories. (8) Scratches and damage caused by normal use. (9) Products used outside published maximum rations. (10) Consumables such as fuses. (11) Products that have been subject to an unauthorized removal or deactivation of the network operator-lock function.
  • Page 5 FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: Q78-R1010. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and the positions the handset a minimum of 1.5 cm from the body.
  • Page 6 holding the phone at the ear, position the handset a minimum of 1.5 cm from your body when the phone is switched on. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 7: Operating Machinery

    Distraction Driving Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving (even with a hands free kit) can cause distraction and lead to an accident. You must comply with local laws and regulations restricting the use of wireless devices while driving.

  • Page 8: Small Children

    Do not attempt to disassemble your phone or its accessories, only authorized personnel • must do so. Do not expose your phone or its accessories to extreme temperatures, minimum - [5] • and maximum + [50] degrees Celsius. Please check local regulations for disposal of electronic products. •...

  • Page 9: Normal Use Position

    Antenna Do not touch the antenna unnecessarily. Normal Use Position When placing or receiving a phone call, hold your phone to your ear, with the bottom towards your mouth.

  • Page 10: Air Bags

    Air Bags Do not place a phone in the area over an air bag or in the air bag deployment area. Store the phone safely before driving your vehicle. Seizures/ Blackouts The phone can produce a bright or flashing light. Repetitive Motion Injuries To minimize the risk of RSI when texting or playing games with your phone: Do not grip the phone too tightly.

  • Page 11: Phone Heating

    Phone Heating Your phone may become warm during charging and during normal use. Electrical Safety Accessories Use only approved accessories. Do not connect with incompatible products or accessories. Take care not to touch or allow metal objects, such as coins or key rings, to contact or short-circuit in the battery terminals.

  • Page 12: General Statement On Interface

    Interference General Statement on Interface Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids. Pacemakers Pacemaker manufacturers recommend that a minimum separation of 15 cm be maintained between a mobile phone and a pacemaker to avoid potential interference with the pacemaker.

  • Page 13: Interference In Cars

    Aircraft Switch off your wireless device whenever you are instructed to do so by airport or airline staff. Consult the airline staff about the use of wireless devices on board the aircraft, if your device offers a ‘flight mode’ this must be enabled prior to boarding an aircraft. Interference in Cars Please note that because of possible interference to electronic equipment, some vehicle manufacturers forbid the use of mobile phones in their vehicles unless a hands-free kit...

  • Page 14: Network Services

    The mobile device R1010 described in this manual is approved for use on the GSM850/900/1800/1900 and UMTS900/1900/2100 networks. If you need more information about GSM and UMTS networks, please get in touch with ZTE customer care or visit www. zte.com.cn Your ZTE service number is +86-755-26779999.

  • Page 15: Table Of Contents

    Contents Getting Started ....................18 Your Phone ......................18 Starting Up ......................29 Entering and Searching Information ..............34 Functions and Features Preview ................. 39 Device Settings Preview ..................42 Using the Phone ................... 46 Overview of Phone ....................46 Starting the Phone Function ................
  • Page 16 Getting Connected ..................86 Connecting to the Internet .................. 86 Internet Explorer Mobile ..................92 Internet Sharing ....................96 Bluetooth ......................97 Windows Live ™ ....................99 Windows Live Messenger ................. 101 GPS ........................102 Office Mobile ....................105 ® Microsoft Office Mobile ..................
  • Page 17 10.4 Using ActiveSync tools ..................136 11 Specifications ..................... 138 12 Index ......................139 13 Troubleshooting ..................141 14 Declaration of RoHS Compliance .............. 142 15 Disposal of your old appliance ..............143...

  • Page 18: Getting Started

    1 Getting Started 1.1 Your Phone Front Panel Left Panel Front Headset Indicator Camera Port Light Charger/USB Connection Touch Jack Screen Volume Up Volume Down QWERTY Keyboard Microphone...
  • Page 19 Back Panel Right Panel Stylus Back Camera Camera Key Speaker Battery Cover Top Panel Power...

  • Page 20: Key Definition

    Key Definition Name Function Press to open the Start Menu (Equal to tapping Start Key on the touch screen). Web Key Press to go to the default home page. Press to go to the Messaging function (Equal to • tapping >Programs>Messaging on the Messaging Key screen).
  • Page 21 Name Function → Use to enter numbers, characters or symbols. See Alphanumeric Getting Started-Entering and Searching Keys Information-Key Functions. Press to switch between the key functions (See Getting Started-Entering and Searching Information-Key Functions.): Press Fn Key once and sequentially press the •...
  • Page 22 Name Function Use to enter a comma or semicolon. See Getting Comma/ Started-Entering and Searching Information-Key semicolon Key Functions. Use to enter a period or colon. See Getting Period/ colon Key Started-Entering and Searching Information-Key Functions. Shift Key Hold to switch between uppercase and lowercase. Press to open the symbols panel/enter a tab Sym /Tab Key symbol.

  • Page 23: Today Screen

    e) Press Action Key to open the Today menu. Today Screen Today Screen Displays The Today screen appears when you turn on the phone. Use Navigation Keys or tap on the scroll bar to scroll down the Today screen to see more information.
  • Page 24 Common Status Indicators on the Title Bar of the Today Screen Title Bar Indicator What it means Missed call New message New mail Receiving MMS message New MMS message received Sending MMS message MMS message sent...
  • Page 25 Indicator What it means Cannot send MMS message Bluetooth connection is active Bluetooth partnership is created New Windows Live message Calls are forwarded Roaming Vibrate mode Sound off Sound on Speakerphone on Bluetooth headset detected Bluetooth headset playing music Battery charging Battery full Battery low Maximum signal strength...
  • Page 26 Indicator What it means Phone is turned off EDGE available GPRS available HSDPA available UMTS available GPRS connecting GPRS in use EDGE connecting EDGE in use HSDPA connecting HSDPA in use UMTS connecting UMTS in use Call on hold Voice call in progress No SIM card inserted Wi-Fi is on...

  • Page 27: Start Menu

    Indicator What it means Wi-Fi is connected Wi-Fi is connecting Synchronization in progress Connection is active Connection is not active Alarm Start Menu On the Today screen, tap Start to go to the Start menu. It shows the shortcuts for the software bundled with the phone and the application programs installed by the user.

  • Page 28: Indicator Light

    Open a recently-used program Switch to the Today screen Open a program (The items displayed here can be customized in Start > Settings > Personal tab >Menus) Access more programs View and change settings View the help information Figure 1 To return to the Today screen At any screen, press Start Key or tap to open the Start Menu and then select...

  • Page 29: Starting Up

    1.2 Starting Up Install the SIM/Micro SD Card and Battery 1. Hold your SIM card with the cut corner oriented as shown below and then insert it into the card holder properly. See Figure3. 2. Hold your Micro SD card with the cut corner oriented as shown below and then insert it into the card holder properly.
  • Page 30 Figure 3 Figure 4...
  • Page 31 Figure 5 Remove the Battery and SIM/Micro SD Card 1. Make sure that your mobile phone is powered off. 2. Remove the battery cover. See Figure 2. 3. Pull the battery up and remove it from the mobile phone. See Figure 6. 4.

  • Page 32: Charge The Battery

    Figure 6 Cautions for using SIM/Micro SD card Do not touch the metal contacts on the card with hands or metal objects. • Use a soft cloth to clean the card. • Keep the card out of the reach of the children. •...
  • Page 33 Hold the Power Key to power on/off the phone. The phone will automatically search for the network after it is powered on. When you first power on your R1010 after you purchase it or reset it to factory (see Setting Up Your Device- Basic Settings-Reset to Factory Settings), you need to...

  • Page 34: Entering And Searching Information

    1.3 Entering and Searching Information When you enter a field that needs text or numbers, you can use the QWERTY hardware keypad or one of the onscreen input methods to enter information. Key functions The Alphanumeric Keys, Comma/ semicolon Key, Period/ colon Key, Sym/ Tab Key and Space/ Lock Key have two functions.

  • Page 35: Onscreen Input Methods

    Space/ Lock Key The first function: Press to enter a space. • The second function: Press to lock the keyboard. • Using the QWERTY Hardware Keyboard You can enter text, numbers, and symbols by using the QWERTY keyboard. When you enter a field that needs text or numbers, the phone automatically selects the alphabetic input mode.
  • Page 36 Input Panel (Keyboard) Input Panel icon Input Selector arrow Figure 8 Select customize the input methods Input Selector Figure 9 Entering Text or Numbers through Touch Keyboard With the enlarged keys and input enhancement, you can type faster and more accurately using the touch Keyboard.
  • Page 37 Tap a~z to enter lowercase letters. • Tap Sym Key to open symbols panel. From this panel, you can press Key, • Key, Key, Key, Key or Key to search for special characters. Note: When composing sentences, the first letter of the new sentence will be capitalized automatically.
  • Page 38 Tap the corresponding letters or symbols to enter them or tap CAP/Shift Keys to • get the screen shown in Picture ⑤ of Figure 10 to enter the uppercase letters. Tap CAP/Shift Key to switch between uppercase and lowercase. • Tap Tab Key to enter the tab symbol.

  • Page 39: Functions And Features Preview

    1.4 Functions and Features Preview Your R1010 has lots of functions. The following are programs that are preinstalled on your device. Programs in the Start Menu Icons Description Office Mobile ® ® Excel Mobile Microsoft Office Excel Mobile enables you to edit and view your Excel worksheets.
  • Page 40 Programs Screen Icons Description Games Play the two preinstalled games: Bubble Breaker and Solitaire. Calculator Perform the basic calculating functions, such as addition, subtraction, multiplication, division, extraction and so on. Camera Enables you to capture photos or shoot video clips. Contacts Enables you to manage your friends and colleagues.
  • Page 41 Icons Description Messenger Send and receive instant messages through the Windows Live Messenger. Notes Create handwriting or typed notes and voice recordings to send or beam to other devices. Internet Sharing Connect your PC to the internet through the data connection of your device.

  • Page 42: Device Settings Preview

    1.5 Device Settings Preview You can adjust the device settings to suit the way you like. Tap > Settings>Personal/ System/Connections tab to view all the settings on your device. Personal tab Icons Description 2G/3G Select a network type according to your device service. Lock Set a password of your device.
  • Page 43 System tab Icons Description About View the basic information of your device. Certificates Set the information of certificates that are installed on your device. Customer Feedback Send customer feedback to make Windows Mobile software better. Regional Settings Set the regional configuration to use, including the format for displaying numbers, currency, date, and time on your device.
  • Page 44 Icons Description Memory View the storage and program memory information of your device and storage card. Managed Programs View the installation history of managed programs. Error Reporting Enable and disable the device’s error reporting function. Clock & Alarms Set the time and date of your device. You can also set the alarms at specified days and times of a week.
  • Page 45 Icons Description Phone services. You can also get quick access to the wireless service settings. Domain Enroll Connect your device with company resources. You will need to enrollment password provided by your system administrator. Connections Set up one or more types of modem connections for your device, such as phone dial-up, GPRS, and more, so that your device can connect to the Internet or a private local network.

  • Page 46: Using The Phone

    2 Using the Phone 2.1 Overview of Phone You can use Phone to make phone calls, set up speed dials, keep track of calls, and send messages. Your wireless service provider may also provide other useful services such as voice mail, call barring, call forwarding, call waiting, fixed dialing and caller ID. The integrated phone on your device can also be used to connect your device to an ISP or work network so you can browse the web and read E-mail.

  • Page 47: Locking/Unlocking Your Device

    access the Phone screen: Press Dial Key. • Enter the phone number on Today screen. • Press Start Key, select Phone and press Action Key. • >Phone. • Enter SIM PIN Each time you power on the phone or activate the phone function, you will need to enter the SIM card PIN provided by your network service provider if you have enabled the PIN code (See Setting Up Your Device-Setting Up Security- Secure the (U)SIM Function-Enable the (U)SIM PIN).

  • Page 48: Making A Call

    Unlock your device 1. At the bottom of the Today screen, tap Unlock. 2. Tap Unlock again. You can also use the keyboard to unlock your device: 1. Press Left Soft Key. 2. Press Key. 2.4 Making a Call Make a Call by entering a phone number 1.

  • Page 49: Make A Call From The Contact List

    2. Scroll to the message that contains the phone number you want to call. 3. Tap the message to open it. 4. Tap the hyperlink phone number in the message. 5. Verify that the phone number is correct. If necessary, add the country code or area code.

  • Page 50: Make Emergency Calls

    Note: If you want to talk to one of the parties privately during the conference call, tap Menu>Private. To include everyone in the call again, tap Menu>Conference. Make Emergency Calls On the Today screen or Phone screen, enter the emergency number for your location, and then tap Keypad>Talk or press Dial Key.

  • Page 51: Receiving A Call

    Call a voice mailbox On the Today screen or Phone screen, Hold Key. • Tap and hold 1 on the phone keypad. • Notes: If you are out of range of a phone line when voice mail arrives, you will be notified •...

  • Page 52: Forward Calls

    Put a call on hold During a call, you can put a call on hold so that you can call another number or answer an incoming call. If you have more than one call on the line, you can move from one call to the other.

  • Page 53: Block Calls

    You can also use Call forward to forward incoming calls to a different number based on your situation: Select No answer to forward calls only when you cannot answer your call. • Select Unavailable to forward calls only when your phone is turned off or you are •...
  • Page 54 4. Select the type of incoming and/or outgoing calls you want to block. Mute a call During a call, you can mute your microphone so that the person with whom you are speaking cannot hear you, but you can still hear him or her.

  • Page 55: Making A Video Call

    Tap Mute to mute your call. • When the microphone is turned off, the mute icon appears on the screen. Tap • Unmute to turn on the microphone again. 2.6 Making a Video Call Your device allows you to make video calls when you are within a 3G network coverage area.
  • Page 56 Note: The other party’s image will appear on the screen after a connection is established. Change video call settings While on a video call, you can change certain settings such as the size of the image, brightness of the image, the camera to use, and more. to adjust the brightness.
  • Page 57 Set up Video call options When you are on the video call, you can tap Menu to do the following operations: Mute: Mute the call. • Open/Close camera: Open or close the camera. • Switch the camera: Switch between the front and back camera. •...

  • Page 58: Using Sim Card Services (Stk)

    (U)SIM card services, insert your (U)SIM card into the phone at first. >Programs >STK. The displayed name on the STK Service is provided by your network service. For example, if you insert a (U)SIM card provided by ZTE, the displayed name on the STK service will be Menu ZTE.

  • Page 59: Setting Up Your Device

    3 Setting Up Your Device 3.1 Basic Settings Enter owner information When you store your owner information on your device and display it on your screen, you make it easier for someone to return your device to you if it is lost. 1.

  • Page 60: Power Management

    3. Tap the day of the week for the alarm, you can select multiple days by tapping each desired day. 4. Tap the time to open a clock and set the time for the alarm: To enter the time from the clock: use your stylus to drag the minute or hour hand. •...
  • Page 61 Adjust the backlight settings (See Setting Up Your Device- Customizing the • Display - Set the backlight to dim after a time delay). Searching for networks consumes a lot of power. When you know you are out of • range of your Wi-Fi networks, turn Wi-Fi off (See Getting Connected – Connecting to the Internet -Turn on/off the Wi-Fi connection).

  • Page 62: Set The Ring Tone

    3. On the Notifications tab, in Event, tap an event name and choose how you want to be notified by selecting the appropriate check boxes. You can choose from several options, such as a special sound, a message, or a flashing light. If you clear all of the options, you will still see an icon notifying you of the event.

  • Page 63: Reset To Factory Settings

    Reset to Factory Settings 1. Tap >Settings>System tab>Reset Factory. 2. Enter 1234. 3. Tap OK. The phone will restart after reset. Caution: After you reset your phone to factory settings, all the information and settings you have saved on your phone will be lost. Set up Windows Update The first time you use this function, you need to set up how you want Windows Update to check for and download important updates.

  • Page 64: Customizing The Display

    Set up Customer Feedback >Settings>System tab>Customer Feedback, and then tap to choose Send Feedback or Don’t Send Feedback. If you select Send Feedback, the phone will remind you to send a feedback to Microsoft Corporation. For more information, read the description on the Customer Feedback screen. 3.2 Customizing the Display Customize the Today screen 1.

  • Page 65: Customizing The Start Menu

    Increase or decrease the size of text on the screen 1. Tap >Settings>System tab>Screen>Text Size tab. 2. Move the slider to increase or decrease the text size. Set the backlight Adjust brightness of backlight 1. Tap >Settings>System tab>Backlight. 2. Tap Adjust brightness tab. 3.

  • Page 66: Setting Up Security

    Note: You cannot remove the link to the Today screen that appears at the top of the Start menu. This link is not counted as one of the seven programs that will always appear on the Start menu. 3.4 Setting Up Security Secure your device You can protect your device from unauthorized use and protect your data in the following ways:...
  • Page 67 To ensure you can make emergency calls, do not begin your password with • digits of your local emergency number. Each time a wrong password is entered, the time your device takes to respond • will get longer and longer, until the device appears not to be responding. 2.

  • Page 68: Change The Sim Pin

    Enable the (U)SIM PIN After the PIN code is activated, each time you turn on the phone, you have to enter the PIN code. Otherwise you can not use the functions of (U)SIM card. The PIN code is required before it is modified or cancelled. If you forget the PIN code, contact your service provider.

  • Page 69: Setting Up E-Mail

    3. Tap Change PIN. 4. Enter old PIN, and tap Enter. 5. Enter new PIN. Make sure that the new PIN is between 4 and 8 digits in length. 6. Reenter the new PIN to confirm it and tap Enter. Change PIN 2 1.
  • Page 70 Tip: For more information, see the help document on your device. Set up E-mail to synchronize with a PC Do all of the following steps on your PC: 1. Install Microsoft ActiveSync. 2. Connect your device to your PC by using a USB cable. 3.

  • Page 71: Messaging

    4 Messaging Messaging is where all of your E-mail, SMS, and MMS accounts are located. When you receive a new message, you can open it from the Today screen. Simply tap the row where the new message is located to read it. To access your message accounts, >Programs >...
  • Page 72 1. Enter the mobile phone number of one or more recipients, separating them with a semicolon (;). To access phone numbers from Contacts: a) Tap Menu > Add Recipient. b) Select From Contacts… or From Call History. c) Select a contact from the list. Tip: You can also press Action Key to access phone numbers from Contacts.
  • Page 73 Cancel SMS message editing While editing SMS messages, tap Menu > Cancel Message. On the dialogue box, choose Yes to save the message as a draft. Choose No to discard the message. Request message delivery notification In SMS, before sending the message, tap Menu > Message Options, select Request message delivery notification check box and tap OK.
  • Page 74 4. Enter your message and tap Send. To switch messages folders 1. Tap >Programs >Messaging>Messages. 2. Tap Menu>Go to>Folders. There are five folders in Messages: Deleted Items: Store deleted messages. • Drafts: Store message drafts. • Inbox: Store all received and sent messages. •...

  • Page 75: E-Mail

    Message When replying to e-mail, include body. • Keep copies of sent items in Sent folder. • Warn when deleting messages in the message list. • You can also choose the screen after you delete or move a message. Address You can choose a field to get e–mail addresses and add address books to check names.

  • Page 76: Download Messages

    Add an attachment to an E-mail 1. In the message that you are composing, tap Menu > Insert and select the item you want to attach: Picture, Voice Note, or File. 2. Select the file you want to attach, or record a voice note. View and Reply to E-mails The Today screen will display the E-mail item when a new E-mail message arrives.
  • Page 77 To download an attachment In an open message with an attachment to download, select the attachment. You can directly open the file in the associated program after you download them by selecting the attachment again. Reply to or forward an E-mail 1.

  • Page 78: Personal Information

    5 Personal Information 5.1 Contacts You can add new contacts along with their information. Setting up communication information for the contact will allow you to connect with the person quickly or browse the contact's information. Contacts will be saved in the phone memory or in the (U)SIM card.

  • Page 79: View And Edit Contact Information

    Create a SIM Contact 1. Tap >Programs > Contacts > New > SIM Contact. 2. Enter the Name and Number for the new contact. 3. Tap OK. View and Edit Contact Information 1. Tap >Programs > Contacts. 2. Select the contact whose information you want to view or edit, and select Menu > Edit.

  • Page 80: Calendar

    3. Tap Menu>Delete Contact. 4. Tap Yes to confirm. To send Contact Information Tap Menu > Send Contact > Beam. Select contact information to send. Select the • device. Then tap Tap to send. Note: Make sure that both transmitter and receiver have activated the Bluetooth function.
  • Page 81 Add New Appointments 1. Tap Menu > New Appointment. 2. Enter information about the appointment. 3. Tap OK. The detailed appointment information includes: Subject: Enter the subject. • Location: Enter the location information. • Starts/Ends: Set the start/end date. • All Day: Set the appointment as all day events.

  • Page 82: Tasks

    Send Appointments Select appointment tap Menu > Beam Appointment, and then select device to exchange, and tap Beam. You can send a calendar appointment to another phone over MMS. 1. Select an appointment, then tap Menu > Send as vCalendar. 2.

  • Page 83: To Mark A Task As Completed

    Subject: Enter the subject. • Priority: Choose the priority level of the task. • Status: Confirm whether the task is completed or not. • Starts: Set the start date of the task. • Due: Set the end date of the task. •...

  • Page 84: Notes

    5.4 Notes Select > Programs > Notes. Add a New Note 1. Tap >Programs>Notes. 2. Tap New. 3. Write your text on the screen. 4. When finished, tap OK to return to the note list. Note: If a letter crosses three ruled lines, it is treated as a drawing rather than as text. Create a voice note 1.

  • Page 85: Sim Manager

    Delete a Note 1. Tap to open the note you want to delete. 2. Tap Menu > Tools >Delete. 3. Tap Yes to delete the note. Send a Note 1. Tap to open the note you want to send. 2. Tap Menu > Tools >Send. 3.

  • Page 86: Getting Connected

    6 Getting Connected 6.1 Connecting to the Internet Ways of Connecting to the Internet Your phone’s networking capabilities allow you to access the Internet or your corporate network at work through wire line and wireless connections. You can use the default connection settings to connect to the Internet by: Wi-Fi, GPRS/3G, EDGE, or Dial-up.
  • Page 87 1. Tab the on the Today screen, or tap > Settings > Connections tab> Wireless Manager to open the wireless manager. 2. Tap Wi-Fi on the Wireless Manager screen to turn on/off the Wi-Fi connection. GPRS/3G Use GPRS/3G (or EDGE, if available) to connect to the Internet and to send and receive MMS messages on your device.
  • Page 88 3. Tap New under the Program that automatically connect to the internet should connect using. 4. Enter a name for your settings. 5. Tap ok until it is completed. 6. Tap >Settings>Connections tab >Connections>Tasks tab.
  • Page 89 7. Tap Add a new modem connection of the settings you have created. 8. Enter a name for the connection and select Cellular Line (GPRS). 9. Tap Next. 10. Enter the Access Point Name and tap Next.
  • Page 90 11. Enter the User name and Password (If there is no User name and Password, leave them blank). 12. Tap Finish. If the network uses a proxy server, you need to continue: 13. Tap Set up my proxy server. 14. Select This network connects to the internet and This network uses a proxy server to connect to the internet check boxes.
  • Page 91 15. Tap Advanced. 16. Select the proxy type. 17. Enter the Server IP and the Port number. 18. Tap OK to complete. Dial-up You can use your phone to dial up to connect to the Internet or to your corporate network.

  • Page 92: Internet Explorer Mobile

    Set up a new dial-up connection Before you begin, get the following information from your network service provider: Get the server phone number or access point name, your user name and password. 1. Tap >Settings>Connections tab>Connections. 2. Under My Work Network, tap Add a new modem connection. 3.

  • Page 93: Browsing Options

    Tap Menu > Favorites to expand Favorites list, then open a web site. • Tap Menu > Address Bar. Enter the web address directly, and tap to open the • web page. Tap Menu > Tools >History to expand the History list, and then select a web site. •...
  • Page 94 Fit to Screen: Switch to Fit to Screen view. It retains the same layout as the Desktop, but the items and edited contents may shrink. However, you can still view the majority of the page without doing a horizontal scroll. Desktop: Switch to Desktop view.
  • Page 95 Tools: • History: View the web pages you have browsed, you can select to show Page Title or Address (URL). Send Link: Send the current link by SMS/MMS/E-mail. Properties: View the properties information.

  • Page 96: Internet Sharing

    Options • General: In General tab, you can set the Home page: Use Current or Use Default. Also, you can select the Encoding among Western European, Greek (ISO), Turkish (Windows), etc. Memory: Tap Clear History to delete the saved links visited in the past days. Tap the arrows to set the days you want.

  • Page 97: Bluetooth

    2. Connect your device to the PC using Bluetooth or a USB cable. 3. Tap >Programs>Internet Sharing. 4. Select the PC connection type (USB or Bluetooth). 5. Select the network connection that the device should use to connect to the Internet. 6.

  • Page 98: Make Your Device Visible

    Turn On/Off Bluetooth 1. Tap > Settings > Connections tab > Bluetooth. 2. Tap Mode tab. 3. Select or clear Turn on Bluetooth check box. Notes: By default, Bluetooth is turned off. If you turn it on, then turn off your device, Bluetooth •...

  • Page 99: Windows Live

    5. Enter the same passcode on the other device. 6. Tap Done. 7. To give the partnership a more meaningful name, tap the device and change the name of the device in Display Name. Connect to a Bluetooth headset or other accessories You can connect your device to Bluetooth-enabled accessories such as headset, stereo headsets etc.

  • Page 100: Set Up Windows Live

    Live Messenger, the next generation of MSN Messenger Mobile. • Live Mail, the next generation of Hotmail. • Live Search, which lets you find locations, browse maps, and check for directions. • Live Contacts, address book for storing Live Mail, Live Messaging, and Hotmail •...

  • Page 101: Windows Live Messenger

    6.6 Windows Live Messenger Live Messenger lets you send and receive instant messages online. With this mobile version of Windows Live Messenger, you enjoy many of the same cool features that you get from the desktop version. The features are: Send and receive instant messages via text and voice •...

  • Page 102: Gps

    Add Windows Live Contacts 1. Sign in the Windows Live Messenger. 2. Tap Menu, and then tap Add new contact. 3. Enter the contacts’ E-mail address and tap OK. Tips:If you choose to have Windows Live services appear on the Today screen, you can quickly access Messenger from there.
  • Page 103 Note: The GPS signal cannot pass through solid non-transparent objects. Signal reception may be affected by obstructions such as high-rise buildings, tunnels, bridges, forests, weather (rainy or cloudy days), etc. Wireless communication products (such as mobile phones or detecting devices) may interfere with the satellite signal, resulting unstable signal reception.
  • Page 104 Specify the hardware port for a GPS receiver Windows Mobile-based devices automatically detect some GPS receivers and configure the appropriate hardware settings for them. If your GPS receiver has not been configured automatically, you need to specify its hardware port and baud rate according to the device manufacturer’s specifications.

  • Page 105: Office Mobile

    7 Office Mobile 7.1 Microsoft Office Mobile ® ® Microsoft Office Mobile consists of four applications that let you view and edit Microsoft documents. These applications are: ® ® Microsoft Office Word Mobile allows you to view and edit Microsoft Word documents •...

  • Page 106: Edit And Send Documents

    2. Locate the file you want to open and tap it to open. Note: You can only open one document at a time. You must close the opened document first before you open another one. Change the zoom ratio When a document is opened, tap View>Zoom and select the zoom ratio to use. Select View >...
  • Page 107 Type words into the document 1. In the document, tap your stylus or use the Navigation Keys to position the cursor where you want to insert the text. 2. Enter the text. Tip: Select Menu > Format>Font to change the font format. You can use Bold, Italic, Underline, Strikethrough and Highlight.

  • Page 108: Microsoft ® Office Excel ® Mobile

    7.3 Microsoft Office Excel Mobile ® ® ® ® Microsoft Office Excel Mobile enables you to edit and view your Excel worksheets. Open Excel Mobile > Office Mobile > Excel Mobile to open the Excel Mobile. Note: Excel Mobile does not fully support all features of Microsoft Excel. Some data and formatting may be lost when you save the workbook on your phone.

  • Page 109: Edit And Send Worksheets

    Edit and Send Worksheets You can edit your Excel worksheets after you open it. Edit the cell text 1. Tap the cell whose text you want to edit. 2. Enter the text and tap OK. Select the cells Tap and slip your stylus to select a series of cells. Delete cells Select the cells you want to delete, and tap Menu >...

  • Page 110: Insert Cells

    Insert cells Select the cell where you want to insert a cell, a row or column and then tap Menu > Insert >Cells. If you want to insert a cell, select Shift cells right or Shift cells down. • If you want to insert a row or a column, select Entire row or Entire column. •...

  • Page 111: Microsoft Office Powerpoint Mobile

    7.4 Microsoft Office PowerPoint Mobile ® ® ® ® Microsoft Office PowerPoint Mobile enables you to view your PowerPoint presentations. Open PowerPoint Mobile > Office Mobile > PowerPoint Mobile to open PowerPoint Mobile. View PPT Files Open a file 1. In PowerPoint Mobile, tap the arrow beside All Folders and choose the location where the *.ppt file is saved.
  • Page 112 Tap Zoom in to get a zoom control panel in the right corner of the screen. • to zoom in, tap to zoom out and tap to return. • Set PowerPoint Mobile preferences 1. Tap the arrow in the left corner of the screen to open the menu. 2.

  • Page 113: Microsoft ® Office Onenote ® Mobile

    7.5 Microsoft Office OneNote Mobile ® ® ® ® Microsoft Office OneNote Mobile enables you to edit and view your OneNote files. Open OneNote Mobile > Office Mobile > OneNote Mobile. Create an OneNote File ® ® 1. Open OneNote Mobile (See Office Mobile-Microsoft Office OneNote Mobile- Open OneNote Mobile).

  • Page 114: Experiencing Multimedia

    8 Experiencing Multimedia 8.1 Camera Use Camera Open the camera > Pictures &Videos, and then tap Camera to launch the camera program. Camera standby screen It displays Standby on the camera screen after 30-second idle as shown in the following picture. Tap the screen or press any key in the Qwerty Keyboard to activate it. Tap Thumbnails to open the Pictures &...

  • Page 115: Take A Photo Or Capture A Video Clip

    Take a Photo or Capture a Video Clip To switch between taking a photo and recording video clip, tap Menu in camera screen, select Still or Video. Aim the camera at the subject and then press Action Key to take the shot. To capture a video, press Action Key to start recording; press again to stop.

  • Page 116: Managing Pictures And Video Files

    Options: To customize the settings for the pictures and videos. • General tab: You can resize a picture to match your requirement before sending it by E-mail. You can also change the rotating orientation in this setting screen. Slide Show tab: Your phone has two orientation modes: Portrait and Landscape. You can decide whether to play screensaver when your phone is connected to PC and idle for 2 minutes.

  • Page 117: Windows Media Player Mobile

    Note: You can also copy pictures and video files from your PC to your phone using a memory card. Pictures & Videos Menu Move to a media file and press Menu to open a list of options. You can choose to send the selected media file to another device via MMS, E-mail, or Bluetooth, play the pictures as a slide show, send the picture to your Windows Live Space account, etc.
  • Page 118 Select Menu Press/Hold Key Skip to the next file Press Right key. Fast-forward a file Hold Right key. Rewind a file Hold Left key. Increase the volume Press Up key. Decrease the volume Press Down key. View and Change hardware button assignments You can view and change default hardware button assignments for Windows Media Player Mobile.

  • Page 119: About Licenses And Protected Files

    About Licenses and Protected Files Protected files are digital media files such as songs and videos that are secured with a license to prevent unauthorized distribution and playback. The license specifies how you can use the file. For example, a license may specify whether you can use computer version of Windows Media Player to synchronize the file to your device, or how many times you can play the file.

  • Page 120: About The Screens And Menus

    Note: On the Library screen, to play a file that is stored on your phone but is not in a library, select Menu > Open File. Select the item (such as a file or a folder), and press tap Play. To play media files from the Internet, on the Library screen, tap Menu >...
  • Page 121 4. To play the media file automatically after it is downloaded, select Open file after download check box, and then do one of the following: To download the media file immediately, tap Yes. The file is saved in My documents •...

  • Page 122: Fm Radio

    8.4 FM Radio With the radio, you can search for radio channels, listen to them, and save them on your device. Note that the quality of the radio broadcast depends on the coverage of the radio station in that particular area. The wired headset works as an antenna, so always connect the headset when using the radio.

  • Page 123: Java Applications

    2. In the address bar, enter the URL address of the Web page that contains the RTSP link to the desired format file. 3. On the Web page, tap the RTSP link. 4. Streaming Media then automatically opens and starts playing the file. During playback, use the button controls to play/pause, zoom in or out, adjust the sound volume, and more.
  • Page 124 Install and Run MIDlets/MIDlet Suite Install MIDlets from the Internet 1. Tap > Programs >JAVA. 2. Tap Download Application to open the Internet Explorer. 3. Locate MIDlet/MIDlet suite while connected to the Internet. 4. Select MIDlet/MIDlet suite to download. 5. To start installing the MIDlet/MIDlet suite, tap Yes. 6.
  • Page 125 Manage MIDlets/MIDlet Suite You can organize the MIDlets/MIDlet suites into folders. You can also uninstall the MIDlets/MIDlet suites. Uninstall a MIDlet/MIDlet suite Before you uninstall a MIDlet/MIDlet suite, make sure that it is not running. 1. On the Java Apps screen, move to the MIDlet/MIDlet suite. 2.

  • Page 126: More Applications

    9 More Applications 9.1 File Explorer File Explorer provides many easy-to-use features for file and folder management. Start File Explorer >Programs> File Explorer. File Explorer displays the entire file structure in your phone’s memory. The functions focus primarily on folder management. In File Explorer, tap the arrow on the left corner to select the location of the files you want to view or manage: My Device: Display the contents in the root folder of the phone.

  • Page 127: Task Manager

    messaging screen. See the section Messaging. Beam File: Send the selected file via Bluetooth. • New Folder: Create a new folder. • Rename: Rename the selected item. • Delete: Delete the selected item. • Edit: Open the menu where you can choose to cut, copy, paste, or paste shortcut. •...

  • Page 128: Add And Remove Programs Management

    Switch To: Switch to the selected program in the task list. • End All Tasks: End all the tasks in the task list. • View: Change to view applications or processes in the task manager. • Sort By: You can sort the tasks by Memory, CPU or Name. •...

  • Page 129: Pdf

    9.4 PDF PDF is an application for viewing PDF (Portable Document Format) documents on your device. It supports a subset of the features found in the PC versions of Foxit Reader. To open PDF > Programs >PDF. • To open a PDF file on your device Open a PDF file in PDF.

  • Page 130: Calculator

    9.5 Calculator Your device comes with a built-in calculator capable of performing addition, subtraction, multiplication, division and so on. Open the Calculator > Programs >Calculator. Calculator function introduction: C：Reset calculator. • MC：Reset the memory. • MR：Display the memory data. • M+：Add up data to the memory.
  • Page 131 Other Calculations • 1. Enter a number. 2. Tap to get the operator. 3. The result will be shown on the screen. Calculator for Arithmetic Using: 1. Obtain the first result by the calculator simple using. 2. Tap to save the data to the memory. 3.

  • Page 132: Synchronization

    10 Synchronization You can synchronize information between your phone and your PC or between your phone ® and Microsoft Exchange Server. Before synchronizing information, please install ActiveSync on the PC. Once you install ActiveSync on your PC, you will be prompted to connect your phone and create a synchronization relationship with the device by using a USB cable or Bluetooth connection.

  • Page 133: Choosing Your Synchronization Type

    10.2 Choosing Your Synchronization Type Synchronize with a USB Cable Connection You can connect your phone with other devices via a USB cable. You can manually change the connection settings as follow. The new settings will be used when you connect your device to the PC next time.
  • Page 134 Set up synchronization with Microsoft Outlook Stay in touch with other workers by wirelessly synchronizing your device with your Microsoft Outlook corporate account from any location in your mobile operator’s service area. You can synchronize E-mail, tasks, contacts, and calendar. Note: Your organization must use Microsoft Exchange Server to manage E-mail, and Microsoft Outlook must be installed on your computer.
  • Page 135 4. To obtain E-mail server settings automatically, select Try to get E-mail settings from the Internet, and then tap Next. Auto Setup tries to download necessary E-mail server settings so that you do not have to enter them manually. 5. When Auto Setup has finished, tap Next. If you choose not to use Auto Setup, or Auto Setup did not find the settings, go to step 6.

  • Page 136: Using Activesync Tools

    Search bar and Windows Live services check boxes, and then tap Next. 6. If you want to synchronize contacts and E-mail, make sure that the check boxes next to Store Windows Live contacts in your mobile device’s contact list and Sync E-mail are selected.

  • Page 137: Start Synchronization

    Synchronize E-mails ® You can synchronize E-mails on you phone with E-mails on your PC or Microsoft Exchange Server. For more information on synchronization, see ActiveSync Help on the PC. Start Synchronization Before you start synchronizing with the Exchange Server, make sure that your phone has been set up with a data connection to the Internet so that you can synchronize wirelessly.

  • Page 138: Specifications

    11 Specifications Dimension Approx. 114 mm × 66 mm × 11.9 mm Weight Approx. 139 g (with battery) Bearer GSM/WCDMA support Main Display dimension，resolution, 2.5', 320*240, 65K color color space Front Camera Sensor Type CMOS Still Image Capture Resolution 0.3M Pixels Back Camera Sensor Type CMOS...

  • Page 139: Index

    12 Index ActiveSync, 38, 61, 69, 75, 96, 115, 131, Forward a message, 72 132, 133, 135, 136 Getting Started, 17, 20, 21, 34, 39, 47, Add a custom background image, 63 Add an attachment to an E-mail, 75 GPRS/3G Connection, 86 Add New Appointments, 80 Increase or decrease the size of text on Battery...
  • Page 140 Request message delivery notification, Set Up Finger Mouse, 62 Set up Windows Update, 62 Reset to Factory Settings, 62 SIMMgr, 39, 84 Searching Information, 33, 37 Task Manager, 20, 39, 42, 126 Secure the (U)SIM Function, 67 Tasks, 40, 81, 82, 87, 126, 127 Secure your device, 65 Today Screen, 22, 23, 77 Select the Network Type, 61...

  • Page 141: Troubleshooting

    13 Troubleshooting This section describes how to troubleshoot some problems when they occur to your phone. Why can’t I turn on my phone as I press the power key? Either you didn’t press the key long enough, or the phone has shut down because the battery power level is too low.

  • Page 142: Declaration Of Rohs Compliance

    14 Declaration of RoHS Compliance To minimize the environmental impact and take more responsibility to the earth we live, this document shall serve as formal declaration that the R1010 manufactured by ZTE CORPORATION are in compliance with the Directive 2002/95/EC of the European...

  • Page 143: Disposal Of Your Old Appliance

    15 Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

Table of Contents
