To thread the cable assembly:
1.
2. Position the console over the console mount.
3. Rest the console on the console mount so that the notch
4. Tilt the console forward until it stops. Use one hand to
5. Pull all cables upward and forward until you can drape
Assembling and Maintaining UBK 800-Series Upright Exercise Bikes
Make sure that as much of each cable as possible passes
through the opening in the middle of the console mount
on the base unit.
on the bottom of the console's back plate rests on the
rectangular hook at the bottom of the console mount, as
shown in the following figure.

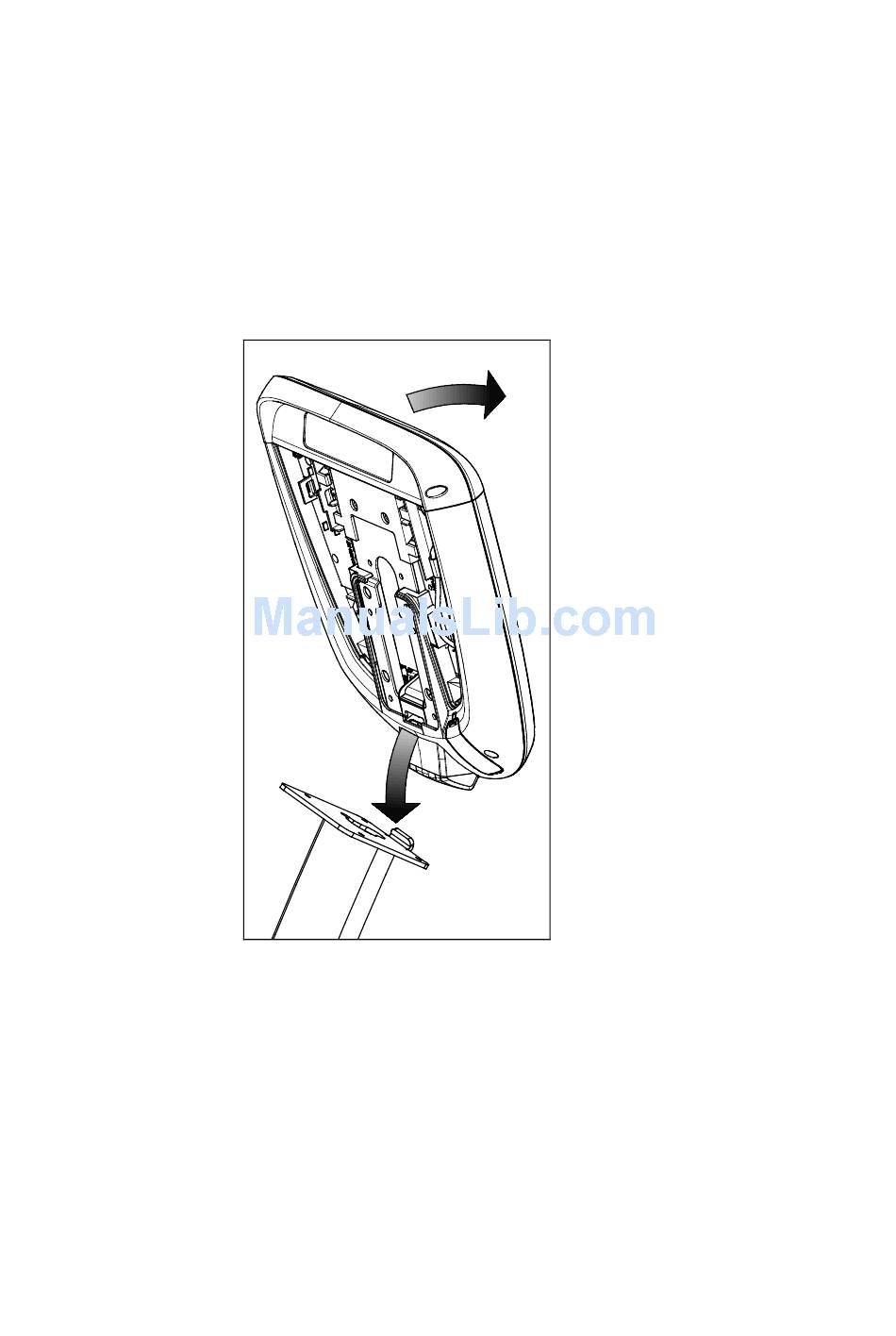

Figure 16: Console positioning on base unit
steady the console in this position, or ask your assistant
to do so.
them over the top of the console's back plate.
