Installing the Upright Support and Cables

DANGER
Before you begin this procedure, retrieve the cables for the
console that you plan to install on this exercise bike. The
cables are packed with the console.
Note: You will need the help of another person while
performing the procedure.
To prepare the bike for installation of the upright support:
1.
2. Using a #2 Phillips screwdriver, remove the two #10 x
3. Remove the two #10 x 1-inch self-tapping screws holding
Assembling and Maintaining UBK 800-Series Upright Exercise Bikes
Do not attempt to connect electrical power until all
assembly procedures are complete and the console
is properly installed.
Retrieve the cables from the box in which the console was
shipped.
1-inch self-tapping screws holding the rear cover in place.
Pull the upright rear cover back to remove it, then set it
aside.

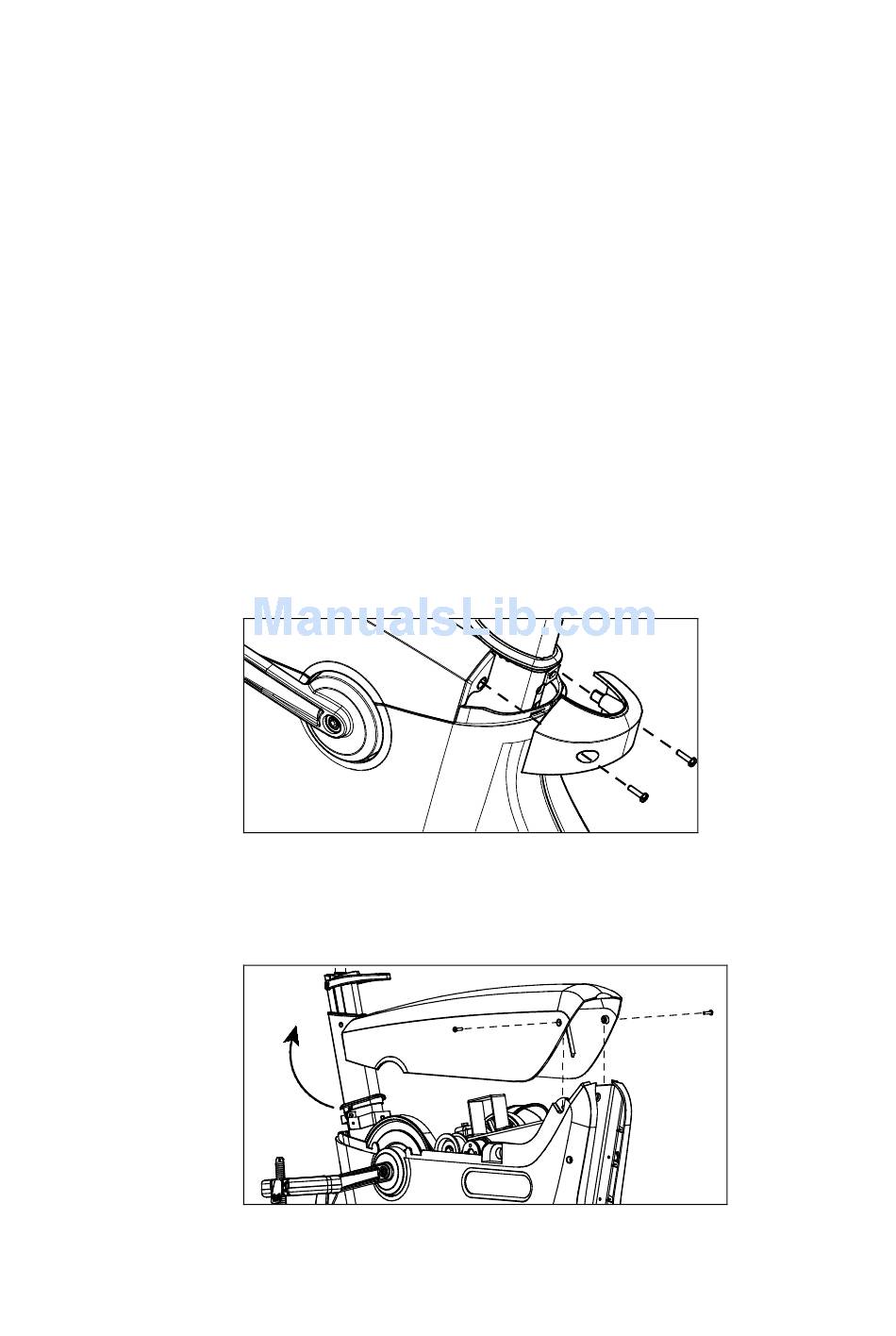

Figure 2: Rear cover removal
the top cover in place, then lift it off.
Figure 3: Top cover removal
