The Ballistic Calculator will make your adjustments for you but only after you
have entered the range to your target.
Your sight offers several ways to accomplish this task.

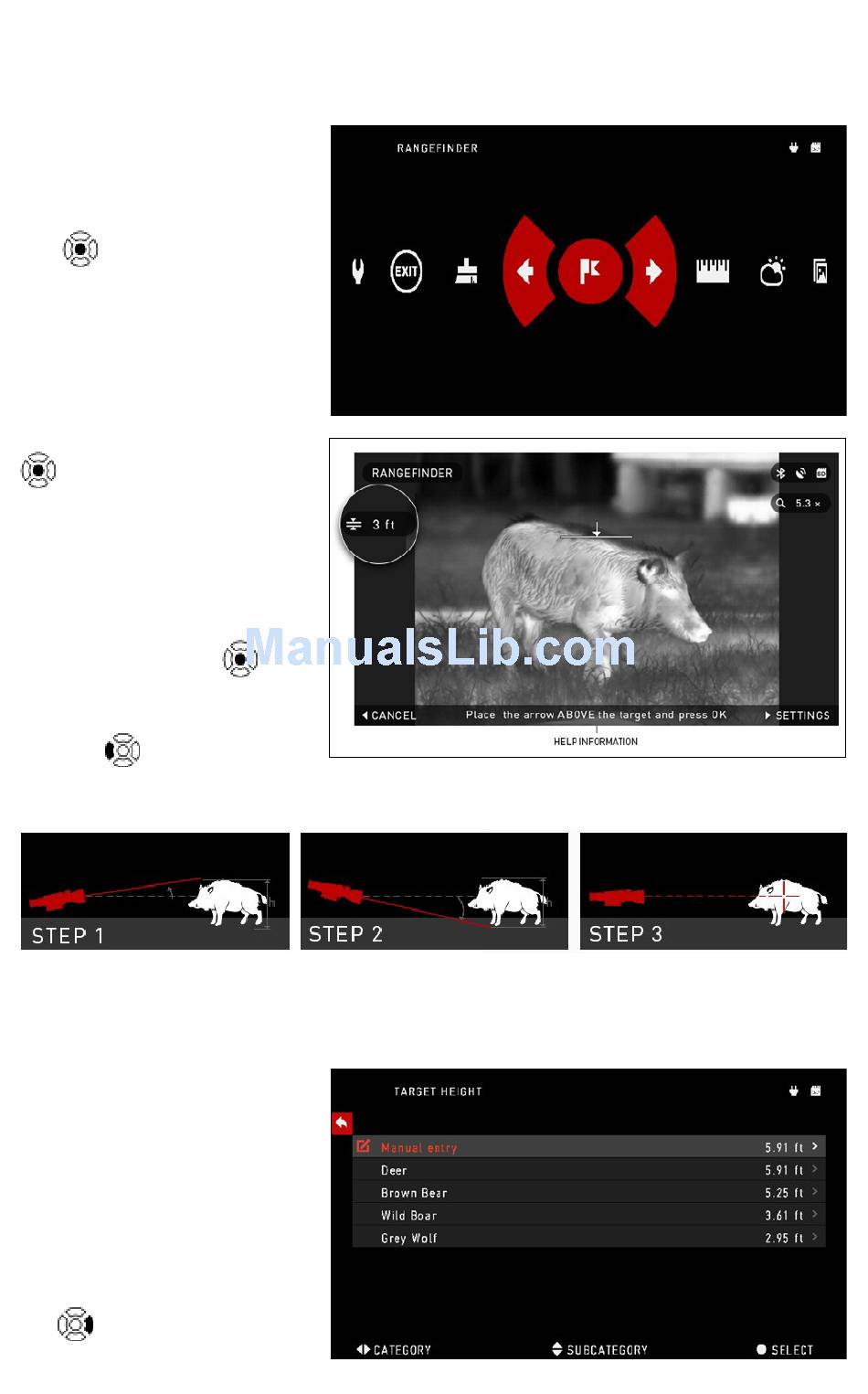

RANGEFINDER
Select the Flag Icon from
the Shortcut Carousel.
Pressing the ENTER but-
ton
will take you to the
Main Screen of the Range-
finder feature.
To measure the distance,
follow the next steps:
1. put the arrow-mark on
the top of the target and
press the ENTER button
, wait for the scope to
take the readings (it will
take a number of readings
so try to keep your weapon
steady);
2. put the arrow-mark
under the target and press
the EN TER button
3. if satisfied with the
value, press the LEF T
button to go back to
the Homescreen or repeat
steps 1 and 2, if necessary.
NOTE
During the measurement process, you can zoom in and out using stan-
dard buttons (UP and DOWN).
While using Ballistic Cal-
culator your reticle can be
displaced from the center
point of the screen. Then
during Zoom In action it
will move to the center.
If the Target Height is
incorrect you can change it:
• press the RIGHT but-
ton to enter the Menu;
;
