Page 1: Operating Instructions

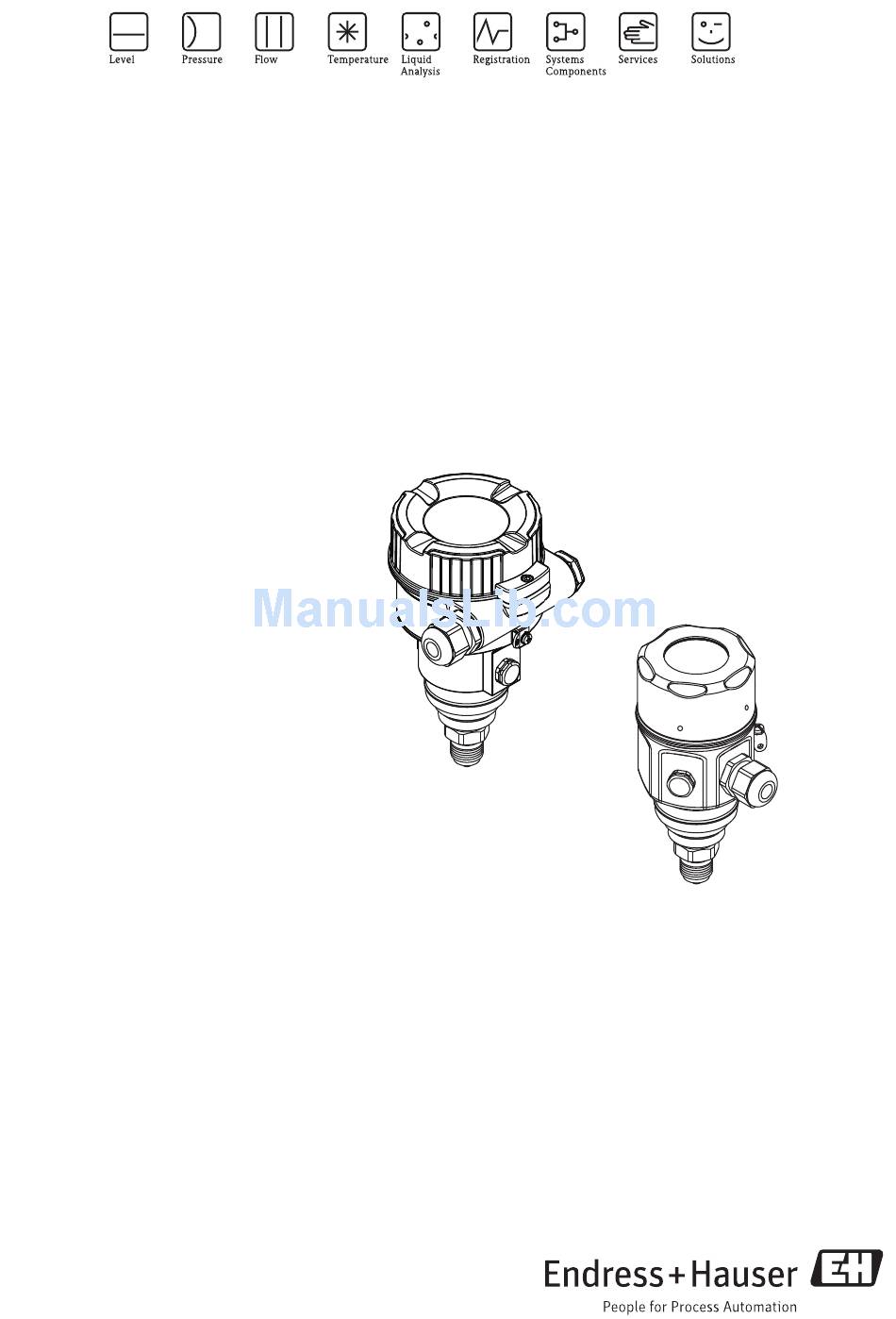

Operating Instructions Cerabar M PMC51, PMP51, PMP55 Process pressure measurement BA00385P/00/EN/19.14 71269382 Valid from software version: 01.00.zz... -
Page 2: Serial Number
Cerabar M Analog Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser... -
Page 3: Table Of Contents
Disposal ....... . 32 Software history ......32 Endress+Hauser... -
Page 4: Safety Instructions
Operating Instructions. Pay particular attention to the technical data and information on the nameplate. Operational and process safety Alternative monitoring measures have to be taken while configuring, testing or servicing the device to ensure the operational and process safety. Warning! Dismantle device only when depressurized! Endress+Hauser... -
Page 5: Notes On Safety Conventions And Icons
Connecting cable immunity to temperature change Indicates that the connecting cables have to withstand a temperature of 85°C at least. > t 85°C Safety instructions Observe the safety instructions in the associated Operating Instructions. Endress+Hauser... -
Page 6: Identification
With regard to their stability-temperature property, the materials 1.4435 and 1.4404 are grouped together under 13EO in EN 1092-1 Tab. 18. The chemical composition of the two materials can be identical. The equation does not apply for PMP51 and PMP55 with a 40 bar (600 psi) or a 100 bar (1500 psi) measuring cell. Endress+Hauser... - Page 7 Devices suitable for oxygen applications are fitted with an additional nameplate. Bei Sauerstoffeinsatz/ for oxygen service Pmax Tmax P01-xxxxxxxx-18-xx-xx-xx-000 Fig. 2: Additional nameplate for devices suitable for oxygen applications Maximum pressure for oxygen applications Maximum temperature for oxygen applications Layout identification of the nameplate Endress+Hauser...
-
Page 8: Scope Of Delivery
The scope of delivery comprises: • Device • Optional accessories Documentation supplied: • The Operating Instructions BA00385P is available on the Internet. See: www.endress.com Download • Brief Operating Instructions: KA01036P • Final inspection report • Optional: factory calibration form, test certificates Endress+Hauser... -
Page 9: Ce Mark, Declaration Of Conformity
The devices comply with the applicable standards and regulations as listed in the EC Declaration of Conformity and thus comply with the statutory requirements of the EC Directives. Endress+Hauser confirms the conformity of the device by affixing to it the CE mark. -
Page 10: Installation
The device must be stored in a dry, clean area and protected against damage from impact (EN 837-2). Storage temperature range: See Technical Information for Cerabar M TI00436P. Installation conditions 3.2.1 Dimensions For dimensions, please refer to the Technical Information for Cerabar M TI00436P, "Mechanical construction" section. Endress+Hauser... -
Page 11: Installation Instructions
• For PMP55, please refer to Section 3.3.2 "Installation instructions for devices with diaphragm seals – PMP55", ä 14. • Endress+Hauser offers a mounting bracket for installing on pipes or walls. ä 17, Section 3.3.5 "Wall and pipe mounting (optional)". - Page 12 Measuring arrangement for pressure measurement in steams Cerabar M Shutoff device U-shaped siphon Circular siphon • Mount Cerabar M with siphon above the tapping point. • Fill the siphon with liquid before commissioning. The siphon reduces the temperature to almost the ambient temperature. Endress+Hauser...
- Page 13 The thread connection may become loose at high temperatures and pressures. This means that the integrity of the thread must be checked regularly and may need to be tightened using the torque given above. Teflon tape is recommended for sealing the 1/2 NPT thread. Endress+Hauser...
- Page 14 • Vibration-free (in order to avoid additional pressure fluctuations) • Not in the vicinity of heating or cooling lines • Insulate if the ambient temperature is below or above the reference temperature • With a bending radius of 100 mm (3.94 in). Endress+Hauser...
- Page 15 115 P01-PMx5xxxx-11-xx-xx-xx-008 Endress+Hauser recommends the use of temperature isolators in the event of constant extreme medium temperatures which lead to the maximum permissible electronics temperature of +85°C (+185°F) being exceeded. To minimize the influence of rising heat, Endress+Hauser recommends the device be mounted horizontally or with the housing pointing downwards.
- Page 16 £ • P01-PMx5xxxx-11-xx-xx-xx-010 Fig. 12: Maximum permitted insulation height, here indicated on a PMP55 with a flange PMP55 70°C (158°F) Ambient temperature (T Process temperature (T Max. 400°C (752°F), depending on the diaphragm seal filling oil used (see TI00436PEN) Endress+Hauser...
- Page 17 Cerabar M Analog Installation 3.3.5 Wall and pipe mounting (optional) Endress+Hauser offers a mounting bracket for installing on pipes or walls (for pipes from 1 " up to 2" diameter). mm (in) P01-xMx5xxxx-06-xx-xx-xx-001 Please note the following when mounting: • Devices with capillary tubes: mount capillaries with a bending radius 100 mm (3.94 in).
- Page 18 Mount the housing on a wall or pipe using the mounting bracket (item 7). When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least 5 Nm (3.69 lbs ft). Mount the cable with a bending radius (r) 120 mm (4.72 in). Endress+Hauser...
- Page 19 Setscrew See the "Welding recommendation" table below Endress+Hauser recommends welding on the diaphragm seal as follows for the "XSJ - Prepared for diaphragm seal mount" version in feature 110 "Process connections" in the order code up to, and including, 40 bar (600 psi) sensors: the total welding depth of the fillet weld is 1 mm (0.04 in) with an outer diameter of 16 mm (0.63 in).
-
Page 20: Closing The Housing Cover
Mounting of the profile seal for universal process mounting adapter For details on mounting, see KA00096F/00/A3. Post-installation check After installing the device, carry out the following checks: • Are all screws firmly tightened? • Is the housing cover screwed down tight? Endress+Hauser... -
Page 21: Wiring
Switch on the supply voltage. 4…20 mA 11.5 V DC P01-PMD55xxx-04-xx-xx-xx-010 Electrical connection 4 to 20 mA Terminals for supply and signal Test terminals Ground terminal Supply voltage: 11.5 to 45 VDC (versions with plug-in connectors: 35 V DC) External ground terminal Endress+Hauser... - Page 22 4.1.4 Devices with valve connector BN BU GNYE – – P01-xMx5xxxx-04-xx-xx-xx-005 Fig. 17: BN = brown, BU = blue, GNYE = green/yellow; Left: electrical connection for devices with a valve connector Right: view of the connector at the device Endress+Hauser...
-
Page 23: Connecting The Measuring Unit
< 0.7 . 4.2.2 Cable specification • Endress+Hauser recommends using twisted, shielded two-wire cables. • Terminals for wire cross-sections 0.5 to 2.5 mm (20 to 14 AWG) • Cable outer diameter: 5 to 9 mm (0.2 to 0.35 in) depends on the used cable gland (see technical information) 4.2.3... -
Page 24: Overvoltage Protection (Optional)
1.5 mm² max. 2.5 mm² max. 3.75 Nm min. 1.5 mm² ➀ Screw coupling glued at the factory: hold in place with a wrench when loosening/tightening the coupling nut ➁ black Shield grounding ➁ without ➂ direct ➂ black P01-xMx5xxxx-04-xx-xx-en-007 Endress+Hauser... -
Page 25: Post-Connection Check
• Are all screws firmly tightened? • Is the housing cover screwed down tight? As soon as voltage is applied to the device, the green LED on the electronic insert lights up for a few seconds or the connected local display lights up. Endress+Hauser... -
Page 26: Operation
Damping is switched off. Damping is switched on. The output signal follows measured value The output signal follows measured value changes with the delay time Factory changes without any delay. setting: = 2 s or as per order specifications). Endress+Hauser... -
Page 27: Using The Device Display (Optional)
Depending on the orientation of the device, this makes it easy to read the measured values. P01-Mxxxxxxx-19-xx-xx-xx-011 Functions: • 8-digit measured value display including sign and decimal point, bar graph for 4 to 20 mA as current display. • Diagnostic functions (fault and warning message etc.) Endress+Hauser... - Page 28 The device is in the service mode (during a simulation, for example). Error message "Maintenance required" Maintenance is required. The measured value remains valid. Error message "Failure detected" An operating error has occurred. The measured value is no longer valid. Endress+Hauser...
-
Page 29: Commissioning
Observe the input Observe the input Observe the input limits. limits. limits. Endress+Hauser... -
Page 30: Maintenance
Keep the pressure compensation and GORE-TEX filter (1) free from contamination. P01-xMx5xxxx-17-xx-xx-xx-000. Cleaning instructions Endress+Hauser offer flushing rings as accessories to clean process isolating diaphragms without taking the transmitters out of the process. For further information please contact your local Endress+Hauser Sales Center. 7.1.1... -
Page 31: Troubleshooting
In the event of an error, the current output assumes a value of 3.6mA. Repair The Endress+Hauser repair concept provides for measuring devices to have a modular design and that the customer can also carry out repairs (see ä 31, on Section 8.5 "Spare Parts"). -
Page 32: Return
The measuring device must be returned if repairs or a factory calibration are required, or if the wrong measuring device has been ordered or delivered. According to legal regulations, Endress+Hauser, as a ISO-certified company, is required to follow certain procedures when handling returned products that are in contact with process fluids. -
Page 33: Technical Data
Cerabar M Analog Technical data Technical data For the technical data, please refer to the Technical Information TI00436P. Endress+Hauser... -
Page 34: Index
Storage........10 Supply voltage ....... . . 23 Endress+Hauser... - Page 35 Cerabar M Analog Index Endress+Hauser...
- Page 36 www.endress.com/worldwide BA00385P/00/EN/19.14 71269382 CCS/FM+SGML 9 71269382...
- Page 37 Endress+Hauser Configurator 2016 SC United States v2 2350 Endress Place Greenwood, IN 46143 Cerabar M PMC51 Pressure, capacitive. compact. PMC51-AA21JD1HGFRKJA Application: pressure/level. Membrane: Ceraphire, 71086208 dry, vacuum proof. :: Easiest on-site operation. SPK: PAB :: Modular. Basic model Cerabar M PMC51...
