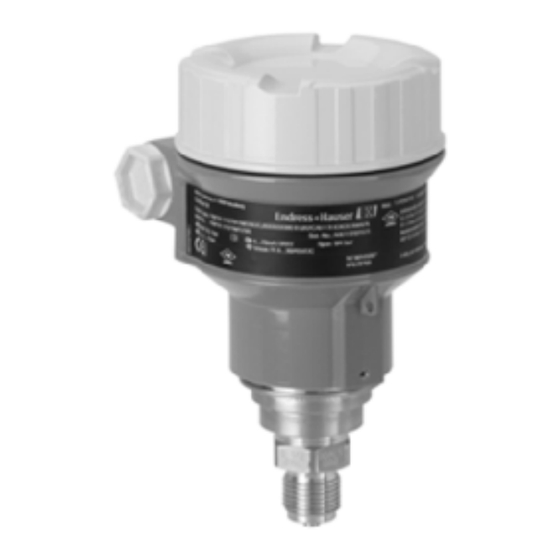

Endress+Hauser Cerabar M PMP51 Technical Information

Technical Information
Cerabar M PMC51, PMP51, PMP55
Process pressure measurement
Pressure transmitter with ceramic and metal sensors;
Modular design and easy operation;
With analog or HART electronics
Application
The Cerabar M pressure transmitter is used for the
following measuring tasks:
• Absolute pressure and gauge pressure measurement in
gases, steams or liquids in all areas of process
engineering and process measurement technology
• Level, volume or mass measurements in liquids
• High process temperature
– without diaphragm seals up to 125°C (257°F)
– with diaphragm seals up to 400°C (752°F)
• High pressure up to 400 bar (6000 psi)
• International usage thanks to a wide range of approvals
TI436P/00/EN/02.10
No. 71109889
Your benefits
• Very good reproducibility and long-term stability
• High reference accuracy: up to 0.15%,
as PLATINUM version: 0.075%
• Turn down up to 100:1
• End-to-end modularity for differential pressure,
hydrostatics and pressure (Deltabar M – Deltapilot M –
Cerabar M), e.g.
– replaceable display
– universal electronics
• Easy commissioning without the need for an operating
tool
• Menu-guided operation
• Output signals: 4 to 20 mA, 4 to 20 mA with HART
