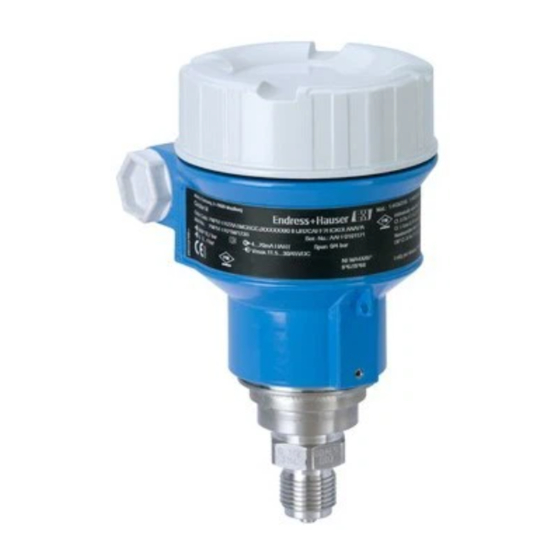

Endress+Hauser Cerabar M PMC51 Operating Instructions Manual
Process pressure measurement
Hide thumbs
Also See for Cerabar M PMC51:
- Technical information (134 pages) ,
- Operating instructions manual (134 pages) ,
- Brief operating instructions (32 pages)
Related Manuals for Endress+Hauser Cerabar M PMC51
Summary of Contents for Endress+Hauser Cerabar M PMC51
- Page 1 Products Solutions Services BA00385P/00/EN/20.16 71316876 Valid from software version: 01.00.zz Operating Instructions Cerabar M PMC51, PMP51, PMP55 Process pressure measurement...
-
Page 2: Serial Number
The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser distributor will supply you with current information and updates to these Operating Instructions. Endress+Hauser... -
Page 3: Table Of Contents
Troubleshooting ....37 Messages ....... . 37 Endress+Hauser... -
Page 4: Document Information
This other connections. may be a potential equalization line or a star grounding system depending on national or company codes of practice. 1.2.3 Tool symbols Symbol Meaning Allen screw A0011221 Open-ended wrench A0011222 Endress+Hauser... - Page 5 ® ® ® KALREZ , VITON , TEFLON Trademark of E.I. Du Pont de Nemours & Co., Wilmington, USA ® TRI-CLAMP Trademark of Ladish & Co., Inc., Kenosha, USA ® GORE-TEX Trademark of W.L. Gore & Associates, Inc., USA Endress+Hauser...
-
Page 6: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-designated use. Clarification of borderline cases: In the case of special fluids and fluids used for cleaning, Endress+Hauser is glad to provide assistance in clarifying the corrosion resistance of wetted materials, but does not accept any warranty or liability. -
Page 7: Hazardous Area
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser... -
Page 8: Identification
13EO in EN 1092-1 Tab. 18. The chemical composition of the two materials can be identical. The equation does not apply for PMP51 and PMP55 with a 40 bar (600 psi) or a 100 bar (1500 psi) measuring cell. Endress+Hauser... - Page 9 Devices suitable for oxygen applications are fitted with an additional nameplate. Bei Sauerstoffeinsatz/ for oxygen service Pmax Tmax A0028468 Fig. 2: Additional nameplate for devices suitable for oxygen applications Maximum pressure for oxygen applications Maximum temperature for oxygen applications Layout identification of the nameplate Endress+Hauser...
- Page 10 14 ID number of notified body with regard to Pressure Equipment Directive (optional) 15 No entry 16 Software version 17 Device version 18 Degree of protection Devices with certificates are fitted with an additional nameplate. A0028470 Abb. 4: Additional nameplate for devices with certificates 1 Approval-specific information Endress+Hauser...
-
Page 11: Scope Of Delivery
The devices comply with the applicable standards and regulations as listed in the EC Declaration of Conformity and thus comply with the statutory requirements of the EC Directives. Endress+Hauser confirms the conformity of the device by affixing to it the CE mark. Endress+Hauser... -
Page 12: Installation
Follow the safety instructions and transport conditions for devices weighing more than 18 kg (39.6 lbs). ‣ Do not use capillaries as a carrying aid for the diaphragm seals. Installation conditions 4.3.1 Dimensions For dimensions, please refer to the Technical Information for Cerabar M TI00436P, "Mechanical construction" section. Endress+Hauser... -
Page 13: General Installation Instructions
The integrity of the thread must be checked regularly and the thread may need to be re- tightened with the maximum tightening torque of 7 Nm (5.16 lbf ft). Teflon tape is recommended for sealing the ½" NPT thread. Endress+Hauser... -
Page 14: Installation Instructions
• For PMP55, please refer to Chap. 4.5.2 "Installation instructions for devices with diaphragm seals – PMP55", ä 17. • Endress+Hauser offers a mounting bracket for installing on pipes or walls. ä 21, Chap. 4.5.5 "Wall and pipe mounting (optional)". - Page 15 Measuring arrangement for pressure measurement in steams Cerabar M Shutoff device U-shaped siphon Circular siphon • Mount Cerabar M with siphon above the tapping point. • Fill the siphon with liquid before commissioning. The siphon reduces the temperature to almost the ambient temperature. Endress+Hauser...
- Page 16 • Do not mount the device in the suction area of a pump. • The calibration and functional test can be carried out more easily if you mount the device downstream of a shutoff device. Endress+Hauser...
- Page 17 Not in the vicinity of heating or cooling lines ‣ Insulate if the ambient temperature is below or above the reference temperature ‣ With a bending radius of 100 mm (3.94 in). ‣ Do not use the capillaries as a carrying aid for the diaphragm seals! Endress+Hauser...
- Page 18 Installation Cerabar M Analog Vacuum application For applications under vacuum, Endress+Hauser recommends mounting the pressure transmitter below the diaphragm seal. This prevents vacuum loading of the diaphragm seal caused by the presence of fill fluid in the capillary. When the pressure transmitter is mounted above the diaphragm seal, the maximum height difference H1 in accordance with the illustrations below must not be exceeded.
- Page 19 Cerabar M Analog Installation Mounting with temperature isolator Endress+Hauser recommends the use of temperature isolators in the event of constant extreme medium temperatures which lead to the maximum permissible electronics temperature of +85 °C (+185°F) being exceeded. Depending on the filling oil used, diaphragm seal systems with temperature isolators can be used for maximum temperatures of up to 400 °C (+752 °F).
- Page 20 Fig. 13: Maximum permitted insulation height, here indicated on a PMP55 with a flange Ambient temperature: 70 °C (158°F) Process temperature: max. 400 °C (752°F), depending on the diaphragm seal filling oil used Maximum permitted insulation height Insulation material Endress+Hauser...
- Page 21 Cerabar M Analog Installation 4.5.5 Wall and pipe mounting (optional) Endress+Hauser offers a mounting bracket for installation on pipes or walls (for pipe diameters from 1 ¼" to 2"). ø42...60 (1.65...2.36) 122 (4.8) 140 (5.51) 158 (6.22) 175 (6.89) A0028493...
- Page 22 5 Nm (3.69 lbs ft). Mount the cable with a bending radius (r) 120 mm (4.72 in). Routing the cable (e.g. through a pipe) You require the cable shortening kit. Order number: 71093286 For details on mounting, see SD00553P/00/A6. Endress+Hauser...
- Page 23 See the "Welding recommendation" table below Engineering unit mm (in) Endress+Hauser recommends welding on the diaphragm seal as follows for the "XSJ - prepared for diaphragm seal mount" version in feature 110 "Process connection" in the order code up to, and including, 40 bar (600 psi) sensors: the total welding depth of the fillet weld is 1 mm (0.04 in) with an outer diameter of 16 mm (0.63 in).
-
Page 24: Closing The Housing Covers
• Process pressure • Ambient temperature range • Measuring range Are the measuring point identification and labeling correct (visual inspection)? Is the device adequately protected against precipitation and direct sunlight? Are the securing screw and securing clamp tightened securely? Endress+Hauser... -
Page 25: Electrical Connection
7. Switch on the supply voltage. A0028498 Electrical connection 4 to 20 mA External grounding terminal Internal grounding terminal Supply voltage: 11.5 to 45 VDC (versions with plug-in connectors 35 V DC) 4 to 20 mA Terminals for supply and signal Test terminals Endress+Hauser... -
Page 26: Connecting The Measuring Unit
A 4 to 20 mA test signal may be measured via the test terminals without interrupting the measurement. To keep the corresponding measured error below 0.1 %, the current measuring device should exhibit an internal resistance of < 0.7 . Endress+Hauser... -
Page 27: Potential Equalization
• External ground terminal: 0.5 to 4 mm (20 to 12 AWG) 5.2.3 Cable specification • Endress+Hauser recommends using twisted, shielded two-wire cables. • Cable outer diameter: 5 to 9 mm (0.2 to 0.35 in) depending on the cable gland used (see Technical Information) 5.2.4... -
Page 28: Overvoltage Protection (Optional)
The device is connected as specified in the following graphic. For details refer to TI001013KEN, XA01003KA3 and BA00304KA2. 5.4.1 Wiring A0023111 Fig. 19: Without direct shield grounding With direct shield grounding Incoming connection cable HAW569-DA2B Unit to be protected Connection cable Endress+Hauser... - Page 29 See NOTICE below Black Engineering unit mm (in) NOTICE Screw connection glued at factory! Damage to the device and/or surge arrester! ‣ When releasing/tightening the union nut use a wrench to hold the screw steady so it does not turn. Endress+Hauser...
-
Page 30: Post-Connection Check
• Are all screws firmly tightened? • Is the housing cover screwed down tight? As soon as voltage is applied to the device, the green LED on the electronic insert lights up for a few seconds or the connected local display lights up. Endress+Hauser... -
Page 31: Operation
Damping is switched off. Damping is switched on. The output signal follows measured value changes The output signal follows measured value changes with without any delay. the delay time t Factory setting: t = 2 s or as per order specifications). Endress+Hauser... -
Page 32: Using The Device Display (Optional)
90 mm (3.54 in) long cable. The device display can be rotated in 90 ° stages (see diagram, steps 4 - 6). Depending on the orientation of the device, this makes it easy to read the measured values. A0028500 Endress+Hauser... - Page 33 The device is in the service mode (during a simulation, for example). Error message "Maintenance required" Maintenance is required. The measured value remains valid. Error message "Failure detected" An operating error has occurred. The measured value is no longer valid. Endress+Hauser...
-
Page 34: Commissioning
Press the "Zero" and "Span" keys simultaneously for at least 3 s. Does the LED on the electronic insert light up briefly? Applied pressure for position adjustment has been Applied pressure for position adjustment has not been accepted. accepted. Observe the input limits. Endress+Hauser... - Page 35 Observe the input limits. 4.) Check settings Press "Zero" key briefly to display the lower range value. Press "Span" key briefly to display the upper range value. Press "Zero" and "Span" keys together briefly to display the calibration offset. Endress+Hauser...
-
Page 36: Maintenance
Keep the pressure compensation and GORE-TEX filter (1) free from contamination. A0028502 Cleaning instructions Endress+Hauser offer flushing rings as accessories to clean process isolating diaphragms without taking the transmitters out of the process. For further information please contact your local Endress+Hauser Sales Center. 8.1.1... -
Page 37: Troubleshooting
In the event of an error, the current output adopts a value of 3.6 mA. Repair The Endress+Hauser repair concept provides for measuring devices to have a modular design and that the customer can also carry out repairs ( ä 37 "Spare parts"). -
Page 38: Return
The measuring device must be returned if it is in need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered. Legal specifications require Endress+Hauser, as an ISO-certified company, to follow certain procedures when handling any returned products that have been in contact with medium. -
Page 39: Index
Scope of delivery ....... . 11 Separate housing, assembly and mounting ..22 Endress+Hauser... - Page 40 71316876 www.addresses.endress.com...
