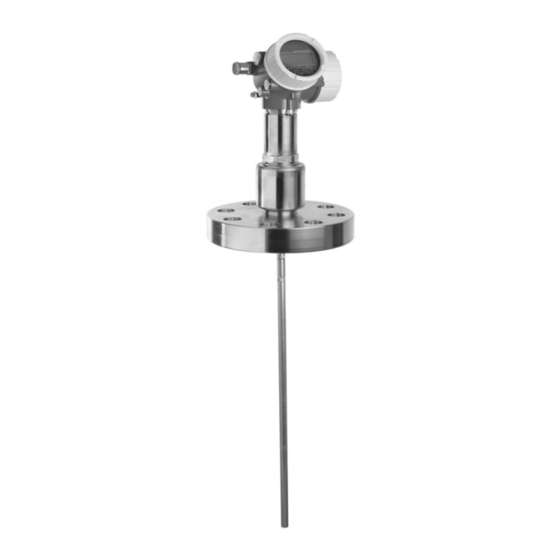

Endress+Hauser Levelflex FMP51 Operating Instructions Manual

Guided wave radar
Hide thumbs Also See for Levelflex FMP51:
Table of Contents

Advertisement

Quick Links

See also: Technical Information
BA01052F/00/EN/04.16
71344062
01.01.zz (Device firmware)
Products
Operating Instructions
Levelflex FMP51, FMP52, FMP54
FOUNDATION Fieldbus
Guided wave radar
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Levelflex FMP51

Summary of Contents for Endress+Hauser Levelflex FMP51

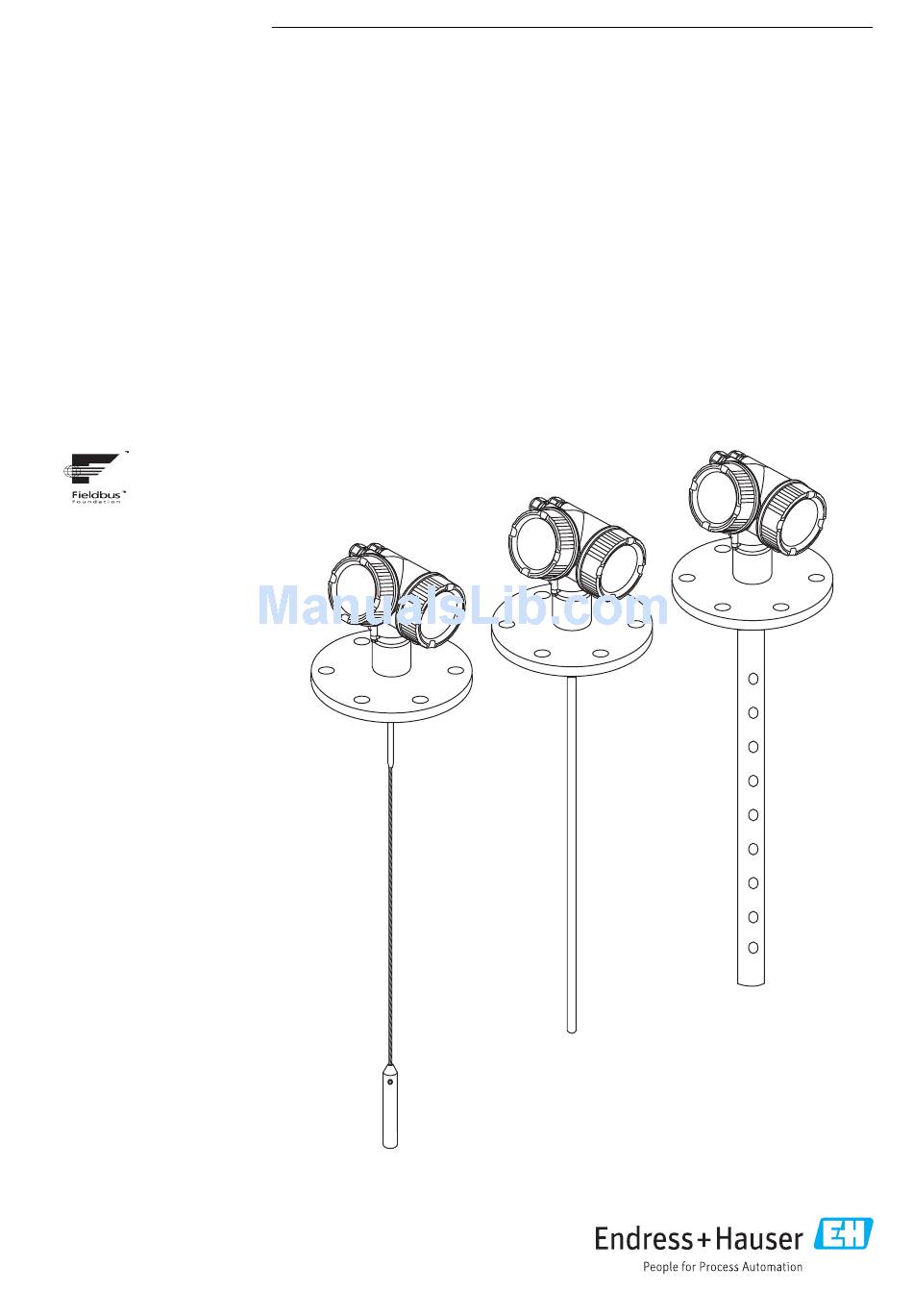

  • Page 1 Products Solutions Services BA01052F/00/EN/04.16 71344062 01.01.zz (Device firmware) Operating Instructions Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Guided wave radar...
  • Page 2 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Product design ......16 3.1.1 Levelflex FMP51/FMP52/FMP54/ Overview ......63 FMP55 .
  • Page 4 (CHANNEL) in an AI Block ....84 display for interface measurements Index tables of Endress+Hauser parameters . . 85 12.9 Configuration management ... . . 114 9.6.1...
  • Page 5 17.4.9 "Heartbeat" submenu ... . 245 Index ....... . . 246 Endress+Hauser...

  • Page 6: Important Document Information

    Important document information Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Important document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.

  • Page 7: Tool Symbols

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Important document information 1.2.3 Tool symbols Symbol Meaning Torx screwdriver A0013442 Flat blade screwdriver A0011220 Cross-head screwdriver A0011219 Allen key A0011221 Hexagon wrench A0011222 1.2.4 Symbols for certain types of information Symbol Meaning Permitted Procedures, processes or actions that are permitted.

  • Page 8: Symbols At The Device

    Important document information Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Symbol Meaning Hazardous area Indicates a hazardous area. Safe area (non-hazardous area) Indicates the non-hazardous area. 1.2.6 Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions.

  • Page 9: Supplementary Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • The W@M Device Viewer : Enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. Endress+Hauser...

  • Page 10: Safety Instructions (Xa)

    Important document information Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 1.3.1 Safety Instructions (XA) Depending on the approval, the following Safety Instructions (XA) are supplied with the device. They are an integral part of the Operating Instructions. Feature 010 Approval Available for Feature 020: "Power Supply;...
  • Page 11 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Important document information Feature 010 Approval Available for Feature 020: "Power Supply; Output" EAC Ex ia IIC T6 Ga/Gb • FMP51 XA01380F XA01380F XA01380F XA01381F XA01380F • FMP52 • FMP54 EAC Ex d[ia] IIC T6 Ga/Gb •...
  • Page 12 Important document information Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Feature 010 Approval Available for Feature 020: "Power Supply; Output" INMETRO Ex ic IIC T6 Gc • FMP51 XA01040F XA01040F XA01040F - XA01040F • FMP52 • FMP54 NEPSI Ex ia IIC T6 Ga •...
  • Page 13 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Important document information Ex-marking in case of connected FHX50 remote display If the device is prepared for the remote display FHX50 (product structure: feature 030: Display, Operation", option L or M), the Ex marking of some certificates changes according to the following table Feature 010 ("Approval") Feature 030 ("Display, Operation") Ex-marking...

  • Page 14: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.

  • Page 15: Workplace Safety

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. 2.5.2 EAC conformity The measuring system meets the legal requirements of the applicable EAC guidelines.

  • Page 16: Product Description

    Product description Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Product description Product design 3.1.1 Levelflex FMP51/FMP52/FMP54/FMP55 A0012399  1 Design of the Levelflex Electronics housing Process connection (here as an example: flange) Rope probe End-of-probe weight Rod probe Coax probe Endress+Hauser...

  • Page 17: Electronics Housing

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Product description 3.1.2 Electronics housing A0012422  2 Design of the electronics housing Electronics compartment cover Display module Main electronics module Cable glands (1 or 2, depending on instrument version) Nameplate I/O electronics module...

  • Page 18: Registered Trademarks

    Product description Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Registered trademarks FOUNDATION Fieldbus Registered trademark of the FieldComm Group, Austin, Texas, USA KALREZ ® , VITON ® Registered trademark of DuPont Performance Elastomers L.L.C., Wilmington, USA TEFLON ® Registered trademark of E.I. DuPont de Nemours & Co., Wilmington, USA TRI CLAMP ®...

  • Page 19: Incoming Acceptance And Product

    • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed. Endress+Hauser...

  • Page 20: Nameplate

    Incoming acceptance and product identification Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 4.2.1 Nameplate 92 (3.62) Order code: Ser. no.: Ext. ord. cd.: MWP: LN = Lref = Mat.: DeviceID: Dev.Rev.: if modification see sep. label Date: mm (in) A0010725  3...

  • Page 21: Storage, Transport

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Storage, Transport Storage, Transport Storage conditions • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use the original packaging. Transport product to the measuring point WARNING Housing or probe may be damaged or break away.

  • Page 22: Mounting

    Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Mounting requirements 6.1.1 Suitable mounting position A0012606  4 Mounting requirements for Levelflex Mounting distances • Distance (A) between wall and rod or rope probe: – for smooth metallic walls: > 50 mm (2 in) –...
  • Page 23 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Additional conditions • When mounting in the open, a weather protection cover (1) may be installed to protect the device against extreme weather conditions. • In metallic vessels: Preferably do not mount the probe in the center of the vessel (2), as this would lead to increased interference echoes.

  • Page 24: Applications With Restricted Mounting Space

    Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 6.1.2 Applications with restricted mounting space Mounting with remote sensor The device version with a remote sensor is suited for applications with restricted mounting space. In this case the electronics housing is mounted at a separate position from which it is easier accessible.
  • Page 25 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Divisible probes 14 mm 14 mm A0021647 If there is little mounting space (distance to the ceiling), it is advisable to use divisible rod probes ( 16 mm). • max. probe length 10 m (394 in) •...

  • Page 26: Notes On The Mechanical Load Of The Probe

    Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 6.1.3 Notes on the mechanical load of the probe Tensile load limit of rope probes Sensor Feature 060 Probe Tensile load limit [kN] FMP51 LA, LB Rope 4mm (1/6") 316 MB, MD FMP52 OA, OB, OC, OD Rope 4mm (1/6") PFA>316...
  • Page 27 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Bending torque [M] on rod probes, diameter 8mm (1/3”) 20.0 18.0 16.0 14.0 12.0 10.0 v=0.5m/s v=0.7m/s v=1.0m/s Probe length [ ] in meters A0014182-EN Bending strength of coax probes Sensor Feature 060...

  • Page 28: Notes On The Process Connection

    Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 6.1.4 Notes on the process connection Probes are mounted to the process connection with threaded connections or flanges. If during this installation there is the danger that the probe end moves so much that it touches the tank floor or cone at times, the probe must, if necessary, be shortened and fixed down →...
  • Page 29 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Nozzle mounting ø 150 (6) £ A0015122 • Permissible nozzle diameter: ≤ 150 mm (6 in). For larger diameters the near range measuring capability may be reduced. For nozzles ≥ DN300: →  32.
  • Page 30 Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Center rod for FMP51 and FMP52 For rope probes it may be necessary to use a version with center rod in order to prevent the probe rod from coming into contact with the nozzle wall. Probes with center rod are available for FMP51 and FMP52.
  • Page 31 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Rod extension/centering HMP40 for FMP54 For FMP54 with rope probes the rod extension/centering HMP 40 is available as an accessory →  138. It has to be used if otherwise the probe rope comes into contact with the lower edge of the nozzle.
  • Page 32 Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Installation in nozzles ≥ DN300 If installation in ≥ 300mm/12" nozzles is unavoidable, installation must be carried out in accordance with the following sketch. A0014199 Lower edge of the nozzle Approx. flush with the lower edge of the nozzle (± 50 mm/2") Plate Pipe ...

  • Page 33: Mounting Cladded Flanges

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting 6.1.5 Mounting cladded flanges For cladded flanges of FMP52, observe the following: • Use flange screws according to the number of flange holes. • Tighten the screws with the required torque (see table).

  • Page 34: Securing The Probe

    Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 6.1.6 Securing the probe Securing rope probes A0012609 Sag of the rope: ≥ 1 cm per 1m of the probe length (0.12 inch per 1 ft of the probe length) Reliably grounded end of probe...
  • Page 35 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Securing rod probes • For WHG approvals: For probe lengths ≥ 3 m (10 ft) a support is required. • In general, rod probes must be supported if there is a horizontal flow (e.g. from an agitator) or in the case of strong vibrations.
  • Page 36 Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Securing coax probes For WHG approvals: For probe lengths ≥ 3 m (10 ft) a support is required. A0012608 Coax probes can be supported at any point of the outer tube. Endress+Hauser...

  • Page 37: Special Mounting Conditions

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting 6.1.7 Special mounting conditions Bypasses and stilling wells In bypass and stilling well applications it is recommended to use a centering disks or stars. øD A0012615  6 Dimensions: mm (in) Mounting in a stilling well...
  • Page 38 With heat insulated tanks the bypass should also be insulated in order to prevent condensate formation. For information on bypass solutions from Endress+Hauser please contact your Endress+Hauser sales representative. Endress+Hauser...
  • Page 39 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Installation in horizontal and upright cylindrical tanks A0014141 • Any distance from wall, as long as occasional contact is prevented. • When installing in tanks with a lot of internals or internals situated close to the probe: use a coax probe.
  • Page 40 Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Underground tanks A0014142 Use a coax probe for nozzles with large diameters in order to avoid reflections at the nozzle wall. Endress+Hauser...
  • Page 41 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Installation at an angle A0014145 • For mechanical reasons, the probe should be installed as vertically as possible. • With inclined installations the probe length has to be adjusted in dependence to the installation angle.
  • Page 42 Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Non-metallic vessels A0012527 Non-metallic vessel Metal sheet or metal flange To ensure reliable measurements in non-metallic vessels: • Select an instrument version with metal flange (minimum size DN50/2"). • Or: mount a metal sheet with a diameter of at least 200 mm (8 in) to the probe at the process connection.
  • Page 43 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Plastic or glass tanks: Mounting the probe externally at the wall A0014150 Plastic or glass tank Metall sheet with threaded sleeve No free space between tank wall and probe! Requirements • The dielectric constant of the medium must be at least DC > 7.
  • Page 44 Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Step Parameter Action Expert → Sensor → Gas phase compensation → GPC Select the Const. GPC factor option. mode Expert → Sensor → Gas phase compensation → Const. Enter quotient: "(Actual probe length)/ GPC factor (Measured probe length)".
  • Page 45 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Vessels with heat insulation If process temperatures are high, the device must be included in normal tank insulation to prevent the electronics heating up as a result of heat radiation or convection. The insulation may not exceed beyond the points labeled "MAX" in the drawings.
  • Page 46 Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus XT 280 °C (536 °F)* HT 450 °C (842 °F) A0014657  9 Process connection with thread - FMP54, sensor version XT and HT Tank insulation Compact device Sensor remote (feature 600) The XT version is not recommended for saturated steam above 200 °C (392 °F). Use the HT version instead.
  • Page 47 Replacing a displacer system in an existing displacer chamber FMP51 and FMP54 are a perfect replacement for a conventional displacer system in an existing displacer chamber. Endress+Hauser offers flanges that suit Fischer and Masoneilan displacer chamber for this purpose (special product for FMP51; feature 100, options LNJ, LPJ, LQJ for FMP54).

  • Page 48: Mounting The Device

    Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting the device 6.2.1 Required mounting tools • For mounting thread 3/4": Hexagonal wrench 36 mm • For mounting thread 1-1/2": Hexagonal wrench 55 mm • To shorten rod or coax probes: Saw •...
  • Page 49 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting 4 (0.16) 3 mm A0012453 Rope material Torque for set screws 4 mm (0.16 in) 40 mm (1.6 in) 3 mm 5 Nm (3.69 lbf ft) 1. Using an Allen key, loosen the set screws at the end-of-probe weight or the clamping sleeve of the centering disk.

  • Page 50: Fmp54 With Gas Phase Compensation: Mounting The Probe Rod

    Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 6.2.3 FMP54 with gas phase compensation: Mounting the probe rod This section is only valid for FMP54 with gas phase compensation (product structure: feature 540 "Application Package", option EF or EG). Coax probes Coax probes with reference reflection are completely mounted and adjusted on delivery.

  • Page 51: Mounting The Device

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting 6.2.4 Mounting the device Mounting devices with thread A0012528 Devices with mounting thread are screwed into a welding boss or a flange and are usually also secured with these. • Tighten with the hexagonal nut only: –...

  • Page 52: Mounting The "Sensor Remote" Version

    Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus A0012852 When lowering the rope probe into the vessel, observe the following: • Uncoil rope and lower it slowly and carefully into the vessel. • Do not kink the rope. • Avoid any backlash, since this might damage the probe or the vessel fittings.
  • Page 53 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Mounting the electronics housing ø42...60 (1.65...2.36) 122 (4.8) 140 (5.5) 175 (6.9) 158 (6.2) A0014793  11 Mounting the electronics housing using the mounting bracket; dimensions: mm (in) Wall mounting Pipe mounting Connecting the cable...

  • Page 54: Turning The Transmitter Housing

    Mounting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 6.2.6 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned: max. 350° 8 mm 8 mm A0013713 1. Unscrew the securing screw using an open-ended wrench.

  • Page 55: Post-Installation Check

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Mounting Post-installation check Is the device undamaged (visual inspection)? Does the device conform to the measuring point specifications? For example: • Process temperature • Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"...

  • Page 56: Electrical Connection

    Electrical connection Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Electrical connection Connection conditions 7.1.1 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0011341  13 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Cable screen: Observe cable specifications...

  • Page 57: Cable Specification

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Electrical connection Connection examples for the switch output A0015909  14 Connection of a relay A0015910  15 Connection of a digital input Suitable relays (examples): Pull-up resistor • Solid-state relay: Phoenix Contact OV-24DC/480AC/5 with mounting...

  • Page 58: Device Plug Connectors

    Electrical connection Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 7.1.3 Device plug connectors For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning...

  • Page 59: Power Supply

    < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...

  • Page 60: Connecting The Device

    Electrical connection Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Connecting the device WARNING Explosion hazard! ‣ Comply with the relevant national standards. ‣ Observe the specifications in the Safety Instructions (XA). ‣ Only use the specified cable glands. ‣ Check whether the supply voltage matches the specifications on the nameplate.

  • Page 61: Pluggable Spring-Force Terminals

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Electrical connection A0013837 Connect the cable in accordance with the terminal assignment →  56. 8. When using screened cable: Connect the cable screen to the ground terminal. 9. Screw the cover onto the connection compartment.
  • Page 62 Electrical connection Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus If required: Is the protective earth connected correctly ? If supply voltage is present: Is the device ready for operation and do values appear on the display module? Are all housing covers installed and firmly tightened?

  • Page 63: Operation Options

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operation options Operation options Overview 8.1.1 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD "Display; Operation" A0032219 A0032221 Display 4-line display 4-line display elements white background lighting; switches to red in...

  • Page 64: Operation With Remote Display And Operating Module Fhx50

    Operation options Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 8.1.2 Operation with remote display and operating module FHX50 A0013137  16 FHX50 operating options Housing of the remote display and operating module FHX50 Display and operating module SD02, push buttons; cover must be removed Display and operating module SD03, optical keys;...
  • Page 65 High Speed Ethernet FF-H1 FOUNDATION Fieldbus-H1 Linking Device FF-HSE/FF-H1 Bus Power Supply Safety Barrier Bus Terminator Via service interface (CDI) A0014019 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Commubox FXA291 Computer with "FieldCare" operating tool Endress+Hauser...

  • Page 66: Structure And Function Of The Operating Menu

    Operation options Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Structure and function of the operating menu 8.2.1 Structure of the operating menu Menu Submenu / Meaning parameter Language Defines the operating language of the on-site display. Commissioning Opens the interactive wizard for a guided commissioning of the device.
  • Page 67 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operation options Menu Submenu / Meaning parameter Communication Contains all parameters needed to configure the digital communication interface. Diagnostics Contains all parameters needed to detect and analyze operational errors. In case of operation via operating tools (e.g. FieldCare), the "Language" parameter is located at "Setup → ...

  • Page 68: User Roles And Related Access Authorization

    Operation options Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 8.2.2 User roles and related access authorization The two user roles Operator and Maintenance have different write access to the parameters if a device-specific access code has been defined. This protects the device configuration via the local display from unauthorized access →...

  • Page 69: Write Protection Via Access Code

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operation options 8.2.3 Write protection via access code Using the device-specific access code, the parameters for the measuring device configuration are write-protected and their values can no longer be changed via local operation. Define access code via local display 1.

  • Page 70: Disabling Write Protection Via Access Code

    Operation options Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 8.2.4 Disabling write protection via access code If the -symbol appears on the local display in front of a parameter, the parameter is write-protected by a device-specific access code and its value cannot be changed at the moment using the local display →...

  • Page 71: Write Protection Via Write Protection Switch

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operation options 8.2.6 Write protection via write protection switch Unlike parameter write protection via a user-specific access code, this allows write access to the entire operating menu - except for the "Contrast display" parameter - to be locked.
  • Page 72 Operation options Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 4. Installing the lock switch (WP) on the main electronics module in the ON position enables the hardware write protection. Installing the lock switch (WP) on the main electronics module in the OFF position (factory setting) disables the hardware write protection.

  • Page 73: Enabling And Disabling The Keypad Lock

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operation options 8.2.7 Enabling and disabling the keypad lock The keypad lock allows to disable access to the entire operating menu via local operation. Thus navigating through the operating menu or modifying the values of individual parameters is no longer possible.

  • Page 74: Display And Operating Module

    Operation options Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Display and operating module 8.3.1 Display appearance User ABC_ DEFG HIJK PQRS TUVW LMNO A0012635  18 Appearance of the display and operation module for on-site operation Measured value display (1 value max. size) 1.1 Header containing tag and error symbol (if an error is active)
  • Page 75 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operation options Display symbols for the submenus Symbol Meaning Display/operation Is displayed: • in the main menu next to the selection "Display/operation" A0011975 • in the header, if you are in the "Display/operation" menu...
  • Page 76 Operation options Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Measured value symbols Symbol Meaning Measured values Level A0011995 Distance A0011996 Current output A0011998 Measured current A0011999 Terminal voltage A0012106 Temperature of the electronics or the sensor A0012104 Measuring channels Measuring channel 1...

  • Page 77: Operating Elements

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operation options 8.3.2 Operating elements Meaning Minus key For menu, submenu Moves the selection bar upwards in a picklist. A0013969 For text and numeric editor In the input mask, moves the selection bar to the left (backwards).

  • Page 78: Entering Numbers And Text

    Operation options Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 8.3.3 Entering numbers and text Numeric editor Text editor User ABC_ DEFG HIJK LMNO PQRS TUVW A0013999 A0013941 Editing view Display area of the entered values Input mask Operating elements Input mask...
  • Page 79 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operation options Confirms selection. A0013985 Switches to the selection of the correction tools. A0013987 Exits the input without applying the changes. A0013986 Clears all entered characters. A0014040 Correction symbols under Clears all entered characters.

  • Page 80: Opening The Context Menu

    Operation options Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 8.3.4 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: • Setup • Conf. backup disp. • Simulation Calling up and closing the context menu The user is in the operational display.

  • Page 81: Envelope Curve On The Display And Operating Module

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operation options 8.3.5 Envelope curve on the display and operating module In order to assess the measuring signal, the envelope curve and - if a mapping has been recorded - the mapping curve can be displayed:...

  • Page 82: Integration Into A Foundation

    Integration into a FOUNDATION Fieldbus network Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Device Description (DD) You require the following to configure a device and integrate it into an FF network: • An FF configuration program •...

  • Page 83: Block Model

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network – EH_Levelflex_xxxxxxxxxx – RESOURCE_xxxxxxxxxxx (RB2) SETUP_ xxxxxxxxxxx (TRDSUP) ADV_SETUP_ xxxxxxxxxxx (TRDASUP) DISPLAY_ xxxxxxxxxxx (TRDDISP) DIAGNOSTIC_ xxxxxxxxxxx (TRDDIAG) EXPERT_CONFIG_ xxxxxxxxxxx (TRDEXP) EXPERT_INFO_ xxxxxxxxxxx (TRDEXPIN) SERVICE_SENSOR_ xxxxxxxxxxx (TRDSRVSB) SERVICE_INFO_ xxxxxxxxxxx...

  • Page 84: Block Configuration When Device Is Delivered

    The guideline provides an overview of the standard function blocks that are described in FOUNDATION Fieldbus Specifications FF 890 - 894. It is designed to help operators use the blocks implemented in the Endress+Hauser field devices. 9.4.2 Block configuration when device is delivered Device_01 4841.000...

  • Page 85: Index Tables Of Endress+Hauser Parameters

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Channel Measured value Interface distance Calculated DC value Terminal voltage Sensor debug 32785 Absolute EOP amplitude 32786 Absolute echo amplitude 32787 Absolute interface amplitude 32856 Distance 32885 Elektronic temperature...

  • Page 86: Advanced Setup Transducer Block

    Integration into a FOUNDATION Fieldbus network Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Name Label Index Data type Size Storage Write MODE_BL Description (Bytes) Class access distance_unit Distance unit ENUM16 Static interface Interface FLOAT Dynamic level_unit Level unit ENUM16 Static output_unit_after_lineariza...

  • Page 87: Display Transducer Block

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Name Label Index Data type Size Storage Write MODE_BL Description (Bytes) Class access level_correction Level correction FLOAT Static level_unit_ro Level unit ENUM16 Static assign_limit Assign limit ENUM16 Static...

  • Page 88: Diagnostic Transducer Block

    Integration into a FOUNDATION Fieldbus network Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Name Label Index Data type Size Storage Write MODE_BLK Description (Bytes) Class access decimal_places_4 Decimal places 4 ENUM16 Static AUTO last_backup Last backup STRING Static AUTO value_1_display Value 1 display...

  • Page 89: Expert Configuration Transducer

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Name Label Index Data type Size Storage Write MODE_BLK Description (Bytes) Class access decimal_places_menu Decimal places menu ENUM16 Static AUTO level_unit_ro Level unit ENUM16 Static operating_mode_ro Operating mode...
  • Page 90 Integration into a FOUNDATION Fieldbus network Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK history_learning_control History learning ENUM16 Static AUTO history_learning_control History learning control ENUM16 Static AUTO sensor_module Sensor module...

  • Page 91: Expert Information Transducer

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network 9.6.6 Expert Information Transducer Block The parameters of the Expert Information Transducer Block are described in GP01015F: "Levelflex FMP5x - Description of Device Parameters - FOUNDATION Fieldbus" Name...

  • Page 92: Service Sensor Transducer Block

    Integration into a FOUNDATION Fieldbus network Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Name Label Index Data type Size (Bytes) Storage Class Write MODE_BLK access sens_temp_status Status ENUM8 Dynamic eop_shift_status Status ENUM8 Dynamic terminal_voltage_1 Terminal voltage 1 FLOAT Dynamic calculated_dc_value Calculated DC value...
  • Page 93 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Integration into a FOUNDATION Fieldbus network Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK distance_unit_ro Distance unit ENUM16 Static operating_mode_ro Operating mode ENUM16 Static present_probe_length_ro Present probe length FLOAT Dynamic...

  • Page 94: Methods

    Integration into a FOUNDATION Fieldbus network Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Name Label Index Data type Size (Bytes) Storage Class Write access MODE_BLK level_linearized Level linearized FLOAT Dynamic bdt_transferred_ctrl UINT8 Static AUTO bdt_cfg_rdwr_ctrl UINT16 Static AUTO Methods The FOUNDATION Fieldbus Specification includes the use of methods to make device operation easier.

  • Page 95: Commissioning Via Wizard

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning via wizard Commissioning via wizard A wizard guiding the user through the initial setup is available in FieldCare and DeviceCare. 1. Connect the device to FieldCare or DeviceCare →  64. 2. Open the device in FieldCare or DeviceCare.

  • Page 96: Commissioning Via Operating

    Commissioning via operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning via operating menu 11.1 Installation and function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist "Post-installation check" →  55 •...
  • Page 97 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning via operating menu level should be at least 200 mm below the reference distance L to achieve maximum accuracy. Step Parameter Action Expert → Sensor → Gas phase Select the On option, in order to activate gas phase compensation →...

  • Page 98: Configuration Of A Level Measurement

    Commissioning via operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 11.4 Configuration of a level measurement 20 mA 100% 4 mA A0011360  22 Configuration parameters for level measurements in liquids Length of probe Reference point of the measurement Distance...
  • Page 99 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning via operating menu 10. Navigate to: Setup → Distance  Displays the distance D between the reference point R and the level L. 11. Navigate to: Setup → Signal quality  Displays the signal quality of the level echo.

  • Page 100: Configuration Of An Interface Measurement

    Commissioning via operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 11.5 Configuration of an interface measurement Only devices with the respective software option can be used for interface measurements. This option is selected in the product structure: Feature 540 "Application package", option EB "Interface measurement".
  • Page 101 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning via operating menu 9. Navigate to: Setup → Empty calibration  Enter the distance E between the reference point R and the minimum level (0%). 10. Navigate to: Setup → Full calibration  Enter distance F between the minimum (0%) and maximum (100%) level.

  • Page 102: Recording The Reference Curve

    Commissioning via operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 11.6 Recording the reference curve After the configuration of the measurement it is recommended to record the current envelope curve as a reference curve. The reference curve can be used later on in the process for diagnostic purposes.

  • Page 103: Configuration Of The On-Site Display

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning via operating menu 11.7 Configuration of the on-site display 11.7.1 Factory settings of the on-site display for level measurements Parameter Factory setting for devices with 1 current Factory setting for devices with 2 current...

  • Page 104: Configuration Management

    Commissioning via operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 11.8 Configuration management After commissioning, you can save the current device configuration, copy it to another measuring point or restore the previous device configuration. You can do so using the Configuration management parameter and its options.

  • Page 105: Protection Of The Settings Against Unauthorized Changes

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning via operating menu 11.9 Protection of the settings against unauthorized changes There are two ways to protect the settings against unauthorized changes: • Via parameter settings (software locking) →  69 • Via locking switch (hardware locking) →  71...

  • Page 106: Commissioning

    Commissioning (block-based operation) Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning (block-based operation) 12.1 Function check Carry out a post-installation and a post-connection check as per the checklist before commissioning the device: • "Post-installation check" checklist • "Post-connection check" checklist →  61 12.2...

  • Page 107: Configuring The Analog Input

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning (block-based operation) 12.2.4 Configuring the Analog Input Blocks The device has 2 Analog Input Blocks that can be assigned as required to the various process variables. Default settings Analog Input Block CHANNEL AI 1...

  • Page 108: Language Selection

    Commissioning (block-based operation) Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus XD_SCALE OUT_SCALE EU_100 EU_0 EU_100 EU_0 OUT_VALUE A0017338  25 Scaling of the measured value in an AI Block • If you have selected the Direct mode for the L_TYPE parameter, you cannot change the values and units for XD_SCALE and OUT_SCALE.
  • Page 109 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning (block-based operation) level should be at least 200 mm below the reference distance L to achieve maximum accuracy. Step Block Parameter Action EXPERT_CONFIG (TRDEXP) GPC mode (gpc_mode) Select the On (33006) option in order to activate gas phase compensation.

  • Page 110: Configuration Of A Level Measurement

    Commissioning (block-based operation) Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 12.6 Configuration of a level measurement The Setup method can also be used to configure the measurement. It is called up via the SETUP (TRDSUP) transducer block. 20 mA 100% 4 mA A0011360 ...

  • Page 111: Configuration Of An Interface Measurement

    "Tank type" = "Bypass/pipe" If required, lower DCs can ben entered into the "DC value (dc_value)" parameter. However, for DC<1.6 the measuring range may be reduced; for details please contact Endress+Hauser. 12.7 Configuration of an interface measurement Only devices with the respective software option can be used for interface measurements.
  • Page 112 Commissioning (block-based operation) Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 100% DK (DC ) A0011177  27 Configuration parameters for interface measurements R = Reference pioint of the measurement D = Distance of interface (Distance from reference point to lower medium)

  • Page 113: Configuration Of The On-Site Display

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning (block-based operation) Schritt Block Parameter Aktion SETUP (TRDSUP) Distance to upper connection • For measurements in bypasses: (distance_to_upper_connection) Enter the distance from the reference point R to the lower edge of the upper connection.

  • Page 114: Configuration Management

    Commissioning (block-based operation) Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 12.8.2 Factory settings of the on-site display for interface measurements Parameter Factory setting for devices with 1 current Factory setting for devices with 2 current output outputs Format display 1 value, max. size 1 value, max.

  • Page 115: Configuration Of The Event Behavior According To The Foundation Fieldbus Specification Ff912

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning (block-based operation) 12.10 Configuration of the event behavior according to the FOUNDATION Fieldbus specification FF912 The device complies with the FOUNDATION Fieldbus specification FF912. This has - among other things - the following consequences: •...

  • Page 116: 12.10.1 Groups Of Events

    Commissioning (block-based operation) Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 12.10.1 Groups of events The diagnostic messages are classified into 16 groups according to the source and severity of the respective event. A default diagnostic category is allocated to each group. Each group is also represented by one bit of the allocation parameters.
  • Page 117 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning (block-based operation) Severity of the Default diagnostic category Source of the Events within the group event event Configuration S441: Current output 1 Process • S801: Energy too low • S825: Operating temperature • S921: Change of reference •...

  • Page 118: 12.10.2 Allocation Parameters

    Commissioning (block-based operation) Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 12.10.2 Allocation parameters The allocation of event categories to the event groups is controlled by the allocation parameters. They reside in the RESOURCE (RB2) block: • FD_FAIL_MAP: for the Failure (F) event category •...
  • Page 119 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning (block-based operation) Example The Highest severity / Configuration group contains the messages 410: Data transfer, 411: Up-/Download, 435: Linearization and 437: Configuration incompatible. These messages are no longer to be classified as Failure (F) but as Function check (C).
  • Page 120 Commissioning (block-based operation) Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus  29 Changed state of the "Fail Map" and "Check Map" columns Make sure that for each group the corresponding bit is set to 1 in at least one of the allocation parameters.

  • Page 121: 12.10.3 Configurable Area

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Commissioning (block-based operation) 12.10.3 Configurable area An event category can be individually defined for the following parameters - irrespective of the group of events they belong to by default. • F941: Echo lost • S942: In safety distance Prior to changing the event category, the event must be allocated to one of the bits 1 to 15.

  • Page 122: 12.10.4 Transmission Of The Event Messages To The Bus

    Commissioning (block-based operation) Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Got to the Offspec Map column and activate the checkbox of the respective bit (in the example: Configurable Area Bit 1). Confirm the selection by pressing the Enter key. A change of the error category of In safety distance does not affect an error which is already present.

  • Page 123: Diagnostics And Troubleshooting

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostics and troubleshooting 13.1 General trouble shooting 13.1.1 General errors Error Possible cause Remedial action Device does not respond. Supply voltage not connected. Connect the correct voltage. The cables do not contact the Ensure electrical contact between the terminals properly.

  • Page 124: Parametrization Errors

    Diagnostics and troubleshooting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 13.1.2 Parametrization errors Parametrization errors for level measurements Error Possible cause Remedial action Measured value wrong If measured distance(Setup • Check and adjust the Empty → Distance) matches the real calibration parameter (→  161) if distance: necessary.
  • Page 125 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Diagnostics and troubleshooting Error Possible cause Remedial action If the interface layers are The thickness of the upper medium Interface measurement is only possible thin, the total level jumps to is less than 60 mm (2.4 in).

  • Page 126: Diagnostic Information On Local Display

    Diagnostics and troubleshooting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 13.2 Diagnostic information on local display 13.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the measured value display.
  • Page 127 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostics event and event text The fault can be identified using the diagnostics event. The event text helps you by providing information about the fault. In addition, the corresponding symbol is displayed before the diagnostics event.

  • Page 128: Calling Up Remedial Measures

    Diagnostics and troubleshooting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 13.2.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage...

  • Page 129: Diagnostic Event In The Operating Tool

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Diagnostics and troubleshooting 13.3 Diagnostic event in the operating tool If a diagnostic event is present in the device, the status signal appears in the top left status in the operating tool along with the corresponding symbol for event level in accordance with NAMUR NE 107: •...

  • Page 130: Event Logbook

    Diagnostics and troubleshooting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 13.6 Event logbook 13.6.1 Event history A chronological overview of the event messages that have occurred is provided in the Event list submenu Navigation path Diagnostics → Event logbook → Event list A maximum of 100 event messages can be displayed in chronological order.
  • Page 131 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Diagnostics and troubleshooting Info number Info name I1092 Trend data deleted I1110 Write protection switch changed I1137 Electronic changed I1151 History reset I1154 Reset terminal voltage min/max I1155 Reset electronic temperature I1156 Memory error trend...

  • Page 132: Firmware History

    Diagnostics and troubleshooting Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 13.7 Firmware history Date Software Modifications Documentation (FMP51, FMP52, FMP54, FOUNDATION Fieldbus) version Operating Instructions Description of Parameters Technical Information 04.2012 01.00.zz Original software BA01052F/00/EN/01.12 GP01015F/00/EN/01.12 TI01001F/00/EN/15.12 05.2015 01.01.zz • Support of SD03 BA01052F/00/EN/03.15...

  • Page 133: Maintenance

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Maintenance Maintenance The measuring device requires no special maintenance. 14.1 Exterior cleaning When exterior-cleaning the device, always use cleaning agents that do not attack the surface of the hosuing and the seals. Endress+Hauser...

  • Page 134: Repairs

    15.1.1 Repair concept The Endress+Hauser repair concept assumes that the devices have a modular design and that repairs can be done by the Endress+Hauser service or specially trained customers. Spare parts are contained in suitable kits. They contain the related replacement instructions.

  • Page 135: Spare Parts

    The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered. Legal specifications require Endress+Hauser, as an ISO-certified company, to follow certain procedures when handling products that are in contact with the medium.

  • Page 136: Accessories

    Accessories Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Accessories 16.1 Device-specific accessories 16.1.1 Weather protection cover Accessory Description Weather protection cover A0015466 298.5 (11.8) 273.7 (10.8) 255.1 (10) 164 (6.46) A0015472  32 Weather protection cover; Dimensions: mm (in) 37,8 mm (1,5 in) 54 mm (2,1 in) ...

  • Page 137: Mounting Bracket For The Electronics Housing

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Accessories 16.1.2 Mounting bracket for the electronics housing Accessory Description Mounting bracket for the electronics housing ø42...60 (1.65...2.36) 140 (5.5) 122 (4.8) 175 (6.9) 158 (6.2) A0014793  33 Mounting bracket for the electronics housing; Dimensions: mm (in)

  • Page 138: Extension Rod / Centering Hmp40

    Accessories Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 16.1.3 Extension rod / centering HMP40 Accessory Description Extension rod / centering HMP40 • can be used for: FMP54 • Admissible temperature at lower nozzle edge: – without center washer: no limitation – with center washer: -40 to 150 °C...

  • Page 139: Mounting Kit, Isolated

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Accessories 16.1.4 Mounting kit, isolated Accessory Description Mounting kit, isolated can be used for • FMP50 • FMP51 • FMP54 • FMP56 • FMP57 A0013586  34 Scope of supply of the mounting kit:...

  • Page 140: Centering Star

    Accessories Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 16.1.5 Centering star Accessory Description Centering star PEEK  48 10 (0.39) to 95 mm (1.89 to 3.74 inch) can be used for • FMP51 • FMP54 ø48 (1.89) ø75 (2.95) ø95 (3.74) A0014576 The centering star is suitable for probes with a rod diameter of 16 mm (0.6 in) and...
  • Page 141 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Accessories Accessory Description Centering star PFA •  16.4 mm (0.65 in) •  37 mm (1.46 in) can be used for • FMP51 • FMP52 • FMP54 A0014577 For 8 mm (0.3 in) probes For 12 mm (0.47 in) and 16 mm (0.63 in) probes...

  • Page 142: Remote Display Fhx50

    Accessories Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 16.1.6 Remote display FHX50 Accessory Description Remote display FHX50 A0019128 • Material: – Plastics PBT – CF3M (similar to 316L/1.4404) – Aluminum (in preparation) • Ingress protection: IP68 / NEMA 6P and IP66 / NEMA 4x •...

  • Page 143: Overvoltage Protection

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Accessories 16.1.7 Overvoltage protection Accessory Description Overvoltage protection for 2-wire-devices OVP10 (1 channel) OVP20 (2 channel) A0021734 Technical data • Resistance per channel: 2 * 0.5 Ω • Threshold DC voltage: 400 to 700 V •...

  • Page 144: Communication-Specific Accessories

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 16.2 Communication-specific accessories Accessory Description Commubox FXA291 Connects Endress+Hauser field devices with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a computer. Order code: 51516983  For details refer to Technical Information TI00405C Accessory...

  • Page 145: Operating Menu

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Operating menu 17.1 Overview of the operating menu (display module) Navigation  Operating menu Language →  211  Setup →  159 Operating mode →  159 Distance unit →  159 Tank type →...
  • Page 146 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Record map →  172 Distance →  172 ‣ Analog inputs ‣ Analog input 1 to 5 →  173 Block tag →  173 →  173 Channel Process Value Filter Time →...
  • Page 147 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Level correction →  184 ‣ Automatic DC calculation →  187 Manual thickness upper layer →  187 DC value →  187 Use calculated DC value →  187 ‣...
  • Page 148 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus ‣ Probe settings →  202 Probe grounded →  202 ‣ Probe length correction →  204 Confirm probe length →  204 Present probe length →  204 ‣ →  205...
  • Page 149 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Header text →  215 Separator →  215 Number format →  215 Decimal places menu →  216 Backlight →  216 Contrast display →  217 ‣ Configuration backup display →...
  • Page 150 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus ‣ Event logbook →  227 Filter options →  227 ‣ Event list →  227 ‣ Device information →  228 Device tag →  228 →  228 Serial number Firmware version →...
  • Page 151 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu ‣ Data logging →  235 Assign channel 1 to 4 →  235 Logging interval →  236 Clear logging data →  236 ‣ Display channel 1 to 4 →  237 ‣...

  • Page 152: Overview Of The Operating Menu

    Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 17.2 Overview of the operating menu (operating tool) Navigation  Operating menu  Setup →  159 Operating mode →  159 Distance unit →  159 Tank type →  160 →...
  • Page 153 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Channel →  173 Process Value Filter Time →  174 ‣ Advanced setup →  175 Locking status →  175 Access status tooling →  175 Enter access code →  176 ‣...
  • Page 154 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus ‣ Linearization →  189 Linearization type →  191 Unit after linearization →  192 Free text →  193 Level linearized →  193 →  194 Interface linearized Maximum value →...
  • Page 155 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu ‣ Switch output →  205 Switch output function →  205 Assign status →  205 Assign limit →  206 Assign diagnostic behavior →  206 Switch-on value →  207 Switch-on delay →...
  • Page 156 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Backlight →  216 Contrast display →  217 ‣ Configuration backup display →  218 Operating time →  218 Last backup →  218 →  218 Configuration management Backup state →...
  • Page 157 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Device name →  228 Order code →  229 Extended order code 1 to 3 →  229 ‣ Measured values →  230 Distance →  164 Level linearized →  193 Interface distance →...
  • Page 158 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Switch status →  242 Simulation device alarm →  242 ‣ Device check →  243 Start device check →  243 Result device check →  243 →  243...

  • Page 159: Module

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu 17.3 "Setup" menu • : Marks the navigation path to the parameter via the display and operating module. • : Marks the navigation path to the parameter via an operating tool (e.g.
  • Page 160 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Tank type  Navigation  Setup → Tank type Prerequisite Medium type (→  177) = Liquid Description Select tank type. Selection • Metallic • Bypass / pipe • Non metallic • Mounted outside •...
  • Page 161 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Additional information This parameter roughly specifies the dielectric constant (DC) of the medium. For a more detailed definition of the DC use the Medium property parameter (→  177). The Medium group parameter presets the Medium property parameter (→  177) as...
  • Page 162 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus A0013177  36 Empty calibration (E) for interface measurements In the case of interface measurements the Empty calibration parameter is valid for both, the total and the interface level. Full calibration ...
  • Page 163 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu 100% 100% A0013188  38 Full calibration (F) for interface measurements In the case of interface measurements the Full calibration parameter is valid for both, the total and the interface level. Level Navigation ...
  • Page 164 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus A0013195  40 Level in case of interface measurements • The unit is defined in the Level unit parameter (→  180). • In case of interface measurements, this parameter always refers to the total level.
  • Page 165 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu A0013199  42 Distance for interface measurements The unit is defined in the Distance unit parameter (→  159). Signal quality Navigation  Setup → Signal quality Description Displays the signal quality of the evaluated echo.
  • Page 166 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Tank level  Navigation  Setup → Tank level Prerequisite Operating mode (→  159) = Interface Description Specify whether the tank or bypass is completely flooded or not. Selection • Partially filled •...
  • Page 167 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Factory setting • For Tank level (→  166) = Partially filled: 0 mm (0 in) • For Tank level (→  166) = Fully flooded: 250 mm (9.8 in) Additional information A0013174 Dependence on the "Tank level"...
  • Page 168 DC1 Relative dielectric constant of the upper medium. For dielectric constants (DC values) of many media commonly used in various industries refer to: • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) Interface Navigation  Setup → Interface Prerequisite Operating mode (→...
  • Page 169 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Interface distance Navigation  Setup → Interface dist. Prerequisite Operating mode (→  159) = Interface or Interface with capacitance Description Displays the measured distance D between the reference point (lower edge of flange or threaded connection) and the interface.
  • Page 170 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Additional information Meaning of the options • Manual map To be selected if the range of mapping is to be defined manually in the Mapping end point parameter (→  171). In this case it is not necessary to confirm the distance.
  • Page 171 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Mapping end point  Navigation  Setup → Map. end point Prerequisite Confirm distance (→  169) = Manual map or Distance too small Description Specify new end of the mapping. User entry 0 to 200 000.0 m...

  • Page 172: Mapping" Wizard

    Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 17.3.1 "Mapping" wizard The Mapping wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the mapping are located directly in the Setup menu (→  159).

  • Page 173: Analog Input 1 To 5" Submenu

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu 17.3.2 "Analog input 1 to 5" submenu There is an Analog inputs submenu for every AI block of the device. The AI block is used to configure the measured value transmission to the bus.
  • Page 174 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Process Value Filter Time Navigation  Setup → Analog inputs → Analog input 1 to 7 → PV Filter Time Description Use this function to enter the filter time specification for the filtering of the unconverted input value (PV).

  • Page 175: Advanced Setup" Submenu

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu 17.3.3 "Advanced setup" submenu Navigation  Setup → Advanced setup Locking status Navigation  Setup → Advanced setup → Locking status Description Indicates the write protection with the highest priority that is currently active.
  • Page 176 • If no key is pressed for 10 min, or the user switches from the navigation and editing mode back to the measured value display mode, the device automatically locks the write- protected parameters after another 60 s. Please contact your Endress+Hauser Sales Center if you lose your access code. Endress+Hauser...
  • Page 177 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu "Level" submenu The Level submenu (→  177) is only visible for Operating mode (→  159) = Level Navigation  Setup → Advanced setup → Level Medium type  Navigation  Setup → Advanced setup → Level → Medium type Description Specify type of medium.
  • Page 178 • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) For EOP level evaluation = Fix DC, the exact dielectric constant has to be entered into the DC value parameter (→  167). Therefore, the Medium property parameter is not available in this case.
  • Page 179 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu For "Operating mode" = "Level" and "Medium type" = "Solid" Process property Step response time / s Very fast > 100 m (333 ft) /h Fast > 10 m (33 ft) /h Standard <...
  • Page 180 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Level unit  Navigation  Setup → Advanced setup → Level → Level unit Description Select level unit. Selection SI units US units • % • ft • m • in • mm...
  • Page 181 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu A0013219  43 Blocking distance (UB) for liquid measurements Level correction  Navigation  Setup → Advanced setup → Level → Level correction Description Specify level correction (if required). User entry –200 000.0 to 200 000.0 % Factory setting 0.0 %...
  • Page 182 For dielectric constants (DC values) of many media commonly used in various industries refer to: • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) The factory setting, ε = 80, is valid for water at 20 °C (68 °F).
  • Page 183 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Level unit  Navigation  Setup → Advanced setup → Interface → Level unit Description Select level unit. Selection SI units US units • % • ft • m • in • mm...
  • Page 184 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus A0013220 Suppression of interference echoes at the top end of the probe. Suppression of the level signal in case of a flooded bypass. UB Upper blocking distance Level correction  Navigation  Setup → Advanced setup → Interface → Level correction Description Specify level correction (if required).
  • Page 185 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Additional information A0013313 UP Interface thickness (= thickness of upper medium) On the local display, the measured interface thickness is indicated together with the manual interface thickness. By comparing these two values the device can automatically adjust the dielectric constant of the upper medium.
  • Page 186 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Use calculated DC value  Navigation  Setup → Advanced setup → Interface → Use calc. DC Description Specify whether the calculated dielectric constant is to be used. Selection • Save and exit •...
  • Page 187 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu "Automatic DC calculation" wizard The Automatic DC calculation wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the automatic DC calculation are located directly in the Interface submenu (→  182) In the Automatic DC calculation wizard two parameters are displayed simultaneously on the display module at any one time.
  • Page 188 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus "Linearization" submenu 100% L‘ I‘ L‘ 100% L‘1L‘2 L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ A0016084  44 Linearization: Transformation of the level and (if relevant) the interface height into a volume or weight;...
  • Page 189 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Structure of the submenu on the display module Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type →  191 Unit after linearization →  192 Free text →  193 Maximum value →...
  • Page 190 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Structure of the submenu in an operating tool (e.g. FieldCare) Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type →  191 Unit after linearization →  192 Free text →...
  • Page 191 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Description of parameters Navigation  Setup → Advanced setup → Linearization Linearization type  Navigation  Setup → Advanced setup → Linearization → Lineariz. type Description Select linearization type. Selection • None •...
  • Page 192 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Meaning of the options • None The level is transmitted in the level unit without linearization. • Linear The output value (volume/weight) is directly proportional to the level L. This is valid, for example, for vertical cylinders.
  • Page 193 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Selection SI units US units Imperial units • STon • lb impGal • t • UsGal • kg • ft³ • cm³ • dm³ • m³ • hl • l • %...
  • Page 194 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Interface linearized Navigation  Setup → Advanced setup → Linearization → Interf. lineariz Prerequisite Operating mode (→  159) = Interface or Interface with capacitance Description Displays the linearized interface height. Additional information The unit is defined in the Unit after linearization parameter →...
  • Page 195 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Intermediate height  Navigation  Setup → Advanced setup → Linearization → Intermed. height Prerequisite Linearization type (→  191) has one of the following values: • Pyramid bottom • Conical bottom •...
  • Page 196 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Additional information Meaning of the options • Manual The level and the associated linearized value are entered manually for each linearization point. • Semiautomatic The level is measured by the device for each linearization point. The associated linearized value is entered manually.
  • Page 197 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Level (Manual)  Navigation  Setup → Advanced setup → Linearization → Level Prerequisite • Linearization type (→  191) = Table • Table mode (→  195) = Manual Description Enter level value of the table point (value before linearization).
  • Page 198 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Factory setting Disable Additional information Meaning of the options • Disable The measured level is not linearized. If Linearization type (→  191) = Table at the same time, the device issues error message F435.
  • Page 199 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu "Safety settings" submenu Navigation  Setup → Advanced setup → Safety sett. Output echo lost  Navigation  Setup → Advanced setup → Safety sett. → Output echo lost Description Define the behavior of the output signal in case of a lost echo.
  • Page 200 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Ramp at echo lost  Navigation  Setup → Advanced setup → Safety sett. → Ramp echo lost Prerequisite Output echo lost (→  199) = Ramp at echo lost Description Define the slope of the ramp in the case of a lost echo.
  • Page 201 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu due to a level change during operation. Signals which are already in the blocking distance when the device is switched on, are ignored. This behavior is only valid if the following two conditions are met: •...
  • Page 202 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus "Probe settings" submenu The Probe settings submenu helps to ensure that the end of probe signal within the envelope curve is correctly assigned by the evaluation algorithm. The assignment is correct if the length of probe indicated by the device matches the acutal lenght of the probe. The automatic probe length correction can only be performed if the probe is installed in the vessel and is completely uncovered (no medium).
  • Page 203 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Confirm probe length  Navigation  Setup → Advanced setup → Probe settings → Confirm length Description Select, whether the value displayed in the Present probe length parameter →  202 matches the actual length of the probe. Based on this input, the device performs a probe length correction.
  • Page 204 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus "Probe length correction" wizard The Probe length correction wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the probe length correction are located directly in the Probe settings submenu (→  202).
  • Page 205 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu "Switch output" submenu Navigation  Setup → Advanced setup → Switch output Switch output function  Navigation  Setup → Advanced setup → Switch output → Switch out funct Description Select function for switch output.
  • Page 206 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus • Digital output 2 • Digital output 3 • Digital output 4 • Digital output 5 • Digital output 6 • Digital output 7 • Digital output 8 Factory setting Additional information The Digital output AD 1 and Digital output AD 2 options refer to the Advanced Diagnostic Blocks.
  • Page 207 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Selection • Alarm • Alarm or warning • Warning Factory setting Alarm Switch-on value  Navigation  Setup → Advanced setup → Switch output → Switch-on value Prerequisite Switch output function (→  205) = Limit Description Enter measured value for the switch-on point.
  • Page 208 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus A0015586 Switch-on value Switch-off value Output closed (conductive) Output opened (non-conductive) Switch-on delay  Navigation  Setup → Advanced setup → Switch output → Switch-on delay Prerequisite • Switch output function (→  205) = Limit •...
  • Page 209 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Switch-off delay  Navigation  Setup → Advanced setup → Switch output → Switch-off delay Prerequisite • Switch output function (→  205) = Limit • Assign limit (→  206) ≠ Off Description Define switch-off delay.
  • Page 210 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Additional information Meaning of the options • No The behavior of the switch output is as described above. • Yes The states Open and Closed are inverted as compared to the description above.
  • Page 211 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu "Display" submenu The Display submenu is only visible if a display module is connected to the device. Navigation  Setup → Advanced setup → Display Language Navigation  Setup → Advanced setup → Display → Language Description Set display language.
  • Page 212 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Additional information 4841.000 Â A0019963  47 "Format display" = "1 value, max. size" Â 93.5 % Â 159.0 A0019964  48 "Format display" = "1 bargraph + 1 value" Â 93.5 Â...
  • Page 213 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Value 1 to 4 display  Navigation  Setup → Advanced setup → Display → Value 1 display Description Select the measured value that is shown on the local display. Selection • None •...
  • Page 214 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Additional information The setting does not affect the measuring or computational accuracy of the device. Display interval Navigation  Setup → Advanced setup → Display → Display interval Description Set time measured values are shown on display if display alternates between values.
  • Page 215 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Additional information XXXXXXXXX A0013375 Position of the header text on the display Meaning of the options • Device tag Is defined in the Device tag parameter. • Free text Is defined in the Header text parameter (→  215).
  • Page 216 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Factory setting Decimal Additional information The ft-in-1/16'' option is only valid for distance units. Decimal places menu  Navigation  Setup → Advanced setup → Display → Dec. places menu Description Select number of decimal places for the representation of numbers within the operating menu.
  • Page 217 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Contrast display Navigation  Setup → Advanced setup → Display → Contrast display Description Adjust local display contrast setting to ambient conditions (e.g. lighting or reading angle). User entry 20 to 80 % Factory setting Dependent on the display.
  • Page 218 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus "Configuration backup display" submenu This submenu is only visible if a display module is connected to the device. The configuration of the device can be saved to the display module at a certain point of time (backup).
  • Page 219 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Additional information Meaning of the options • Cancel No action is executed and the user exits the parameter. • Execute backup A backup copy of the current device configuration in the HistoROM (built-in in the device) is saved to the display module of the device.
  • Page 220 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Additional information Meaning of the display options • Settings identical The current device configuration of the HistoROM is identical to the backup copy in the display module. • Settings not identical The current device configuration of the HistoROM is not identical to the backup copy in the display module.
  • Page 221 Enter access code parameter (→  176). Please contact your Endress+Hauser Sales Center if you lose your access code. For display operation: The new access code is only valid after it has been confirmed in the Confirm access code parameter (→...
  • Page 222 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Additional information Meaning of the options • Cancel No action • To factory defaults All parameters are reset to the order-code specific factory setting. • To delivery settings All parameters are reset to the delivery setting. The delivery setting may differ from the factory default if customer specific settings have been ordered.
  • Page 223 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu "Define access code" wizard The Define access code wizard is only available when operating via the local display. When operating via an operating tool, the Define access code parameter is located directly in the Administration submenu. The Confirm access code parameter is not available for operation via operating tool.

  • Page 224: Diagnostics" Menu

    Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 17.4 "Diagnostics" menu Navigation  Diagnostics Actual diagnostics Navigation  Diagnostics → Actual diagnos. Description Displays current diagnostic message. Additional information The display consists of: • Symbol for event behavior • Code for diagnostic behavior •...
  • Page 225 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Timestamp Navigation  Diagnostics → Timestamp Description Displays timestamp for the Previous diagnostics parameter (→  224). User interface Days (d), hours (h), minutes (m), seconds (s) Operating time from restart Navigation ...

  • Page 226: Diagnostic List" Submenu

    Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 17.4.1 "Diagnostic list" submenu Navigation  Diagnostics → Diagnostic list Diagnostics 1 to 5 Navigation  Diagnostics → Diagnostic list → Diagnostics 1 to 5 Description Display the current diagnostics messages with the highest to fifth-highest priority.

  • Page 227: Event Logbook" Submenu

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu 17.4.2 "Event logbook" submenu The Event logbook submenu is only available when operating via the local display. When operating via FieldCare, the event list can be displayed in the FieldCare function "Event List / HistoROM".

  • Page 228: Device Information" Submenu

    Displays serial number of the device. Additional information Uses of the serial number • To identify the device quickly, e.g. when contacting Endress+Hauser. • To obtain specific information on the device using the Device Viewer: www.endress.com/deviceviewer The serial number is also indicated on the nameplate.
  • Page 229 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Order code  Navigation  Diagnostics → Device info → Order code Description Displays order code of the device. Additional information The order code is generated from the extended roder code, which defines all device features of the product structure.

  • Page 230: Measured Values" Submenu

    Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 17.4.4 "Measured values" submenu Navigation  Diagnostics → Measured val. Distance Navigation  Diagnostics → Measured val. → Distance Description Displays the measured distance D between the reference point (lower edge of the flange or threaded connection) and the level.
  • Page 231 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Level linearized Navigation  Diagnostics → Measured val. → Level linearized Description Displays linearized level. Additional information • The unit is defined by the Unit after linearization parameter →  192. • For interface measurements, this parameter always refers to the total level.

  • Page 232: Analog Input 1 To 5" Submenu

    Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Thickness upper layer Navigation  Diagnostics → Measured val. → Thickn.upp.layer Prerequisite Operating mode (→  159) = Interface or Interface with capacitance Description Displays the upper interface thickness (UP). Additional information...
  • Page 233 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Navigation  Diagnostics → Analog inputs → Analog input 1 to 5 Block tag Navigation  Diagnostics → Analog inputs → Analog input 1 to 7 → Block tag Description Defined to be unique throughout the control system at one plant site. The tag may be changed using the FB_Tag service.
  • Page 234 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Value Navigation  Diagnostics → Analog inputs → Analog input 1 to 7 → Value Description Indicates the output value of the AI block. Units index Navigation  Diagnostics → Analog inputs → Analog input 1 to 7 → Units index Description Indicates the unit of the output value.

  • Page 235: Data Logging" Submenu

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu 17.4.6 "Data logging" submenu Navigation  Diagnostics → Data logging Assign channel 1 to 4  Navigation  Diagnostics → Data logging → Assign chan. 1 to 4 Description Allocate a process variable to the respective data logging channel.
  • Page 236 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Logging interval  Navigation  Diagnostics → Data logging → Logging interval Description Define logging interval t User entry 1.0 to 3 600.0 s Factory setting 30.0 s Additional information This parameter defines the interval between the individual data points in the data log, and thus the maximum loggable process time T •...
  • Page 237 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu "Display channel 1 to 4" submenu The Display channel 1 to 4 submenus are only available for operation via the local display. When operating via FieldCare, the logging diagram can be displayed in the FieldCare function "Event List / HistoROM"...

  • Page 238: Simulation" Submenu

    Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus 17.4.7 "Simulation" submenu The Simulation submenu is used to simulate specific measuring values or other conditions. This helps to check the correct configuration of the device and connected control units. Conditions which can be simulated...
  • Page 239 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu 3. Pull out the display module with a gentle rotation movement. To make it easier to access the SIM switch, attach the display module to the edge of the electronics compartment.  Display module is attached to the edge of the electronics compartment.
  • Page 240 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Structure of the submenu Navigation  Expert → Diagnostics → Simulation ‣ Simulation Assign measurement variable →  241 Process variable value →  241 Switch output simulation →  241 Switch status →...
  • Page 241 Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu Description of parameters Navigation  Expert → Diagnostics → Simulation Assign measurement variable  Navigation  Expert → Diagnostics → Simulation → Assign meas.var. Description Selct process variable to be simulated. Selection •...
  • Page 242 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Selection • Off • On Factory setting Switch status  Navigation  Expert → Diagnostics → Simulation → Switch status Prerequisite Switch output simulation (→  241) = On Description Define the switch state to be simulated.

  • Page 243: Device Check" Submenu

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu 17.4.8 "Device check" submenu Navigation  Diagnostics → Device check Start device check  Navigation  Diagnostics → Device check → Start dev. check Description Start a device check. Selection • No •...
  • Page 244 Operating menu Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Level signal Navigation  Diagnostics → Device check → Level signal Prerequisite Device check has been performed. Description Displays result of the device check for the level signal. User interface • Check not done •...

  • Page 245: Heartbeat" Submenu

    Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus Operating menu 17.4.9 "Heartbeat" submenu The Heartbeat submenu is only available via FieldCare or DeviceCare. It contains the wizards which are part of the Heartbeat Verification and Heartbeat Monitoring application packages. Detailed description SD01872F Navigation ...
