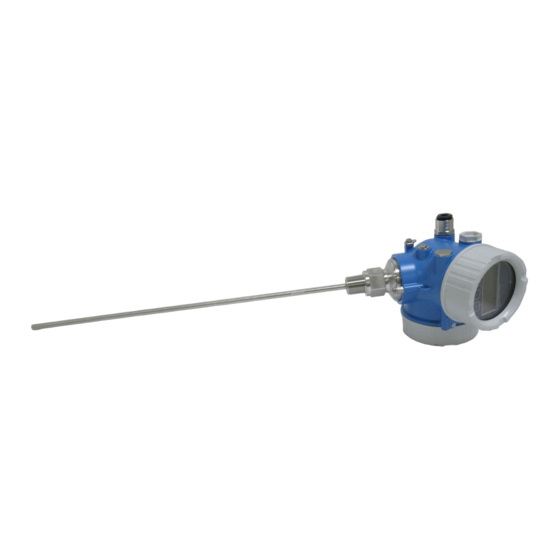

Endress+Hauser HART Levelflex FMP51 Brief Operating Instructions

Endress+Hauser HART Levelflex FMP51 Brief Operating Instructions

Guided wave radar
Hide thumbs Also See for HART Levelflex FMP51:

Advertisement

Quick Links

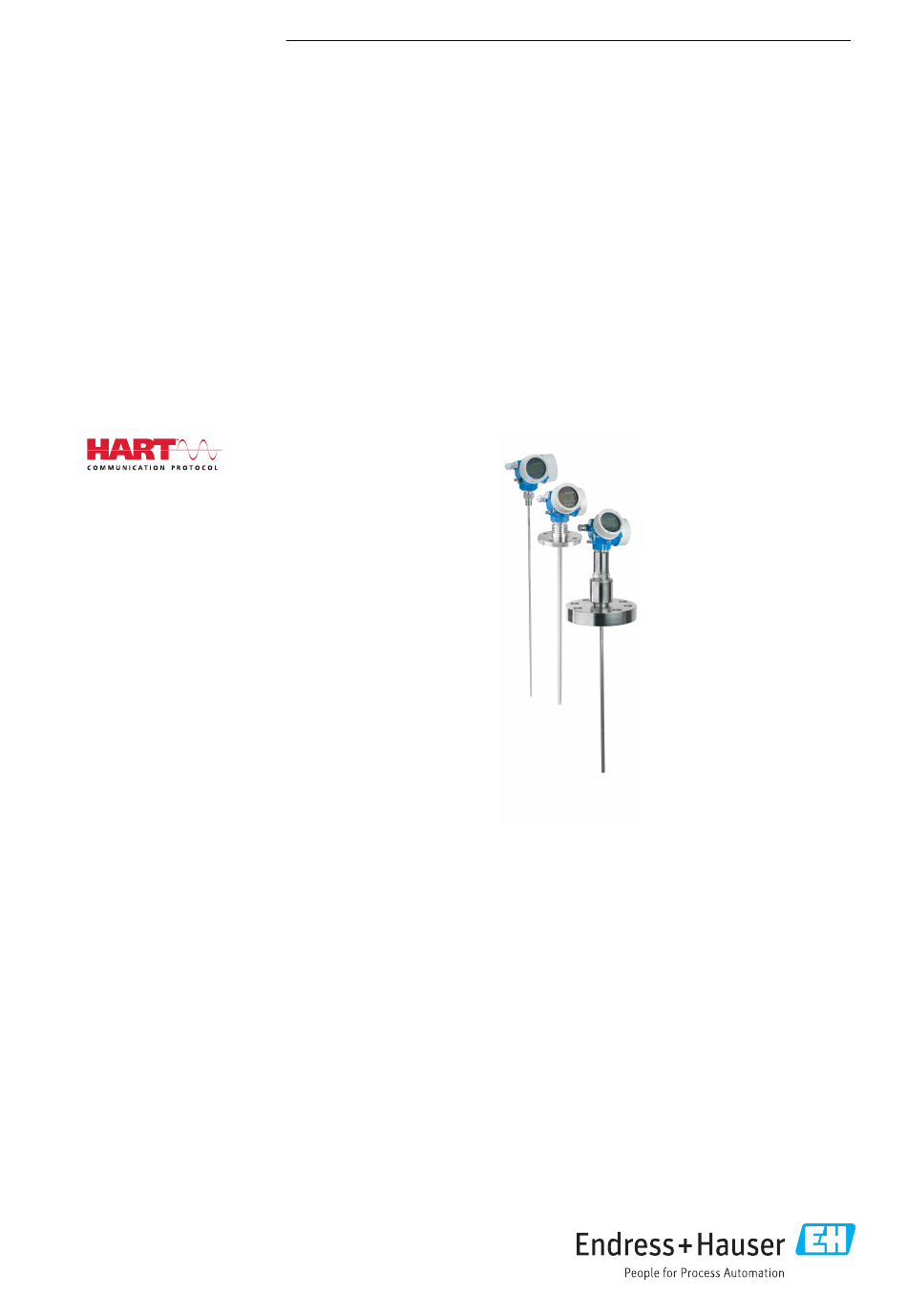

KA01077F/00/EN/19.22-00
71565956
2022-04-05
Products
Brief Operating Instructions
Levelflex FMP51, FMP52,
FMP54
HART
Guided wave radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading

Summary of Contents for Endress+Hauser HART Levelflex FMP51

  • Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2: Associated Documentation

    Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Symbols 2.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury.
  • Page 3 Symbols for certain types of information and graphics  Permitted Procedures, processes or actions that are permitted  Forbidden Procedures, processes or actions that are forbidden  Tip Indicates additional information Reference to documentation Reference to graphic Notice or individual step to be observed Endress+Hauser...
  • Page 4: Basic Safety Instructions

    ‣ Measured process variables: level and/or interface height ‣ Calculable process variables: volume or mass in any shape of vessel (calculated from the level by the linearization functionality) Endress+Hauser...
  • Page 5: Workplace Safety

    The manufacturer is not liable for damage caused by improper or non-intended use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.
  • Page 6: Product Safety

    • Are the goods undamaged? • Do the nameplate data match the ordering information on the delivery note? • If required (see nameplate): are the Safety Instructions (XA) provided? If one of these conditions is not met, please contact your Endress+Hauser sales office. Endress+Hauser...
  • Page 7: Product Identification

    ‣ Enter the serial number from the nameplate in the Endress+Hauser Operations app or scan the 2-D matrix code on the nameplate with the camera  All of the information on the measuring device and on the scope of the technical documentation pertaining to the device is displayed.
  • Page 8 Incoming acceptance and product identification Levelflex FMP51, FMP52, FMP54 HART A0013920 Endress+Hauser...
  • Page 9: Mounting Requirements

    Levelflex FMP51, FMP52, FMP54 HART Mounting Mounting Mounting requirements 5.1.1 Suitable mounting position A0012606  1 Installation conditions for Levelflex Endress+Hauser...
  • Page 10 Securing the probe Securing rope probes A0012609 Rope sag: ≥ 10 mm/(1 m probe length) [0.12 in/(1 ft probe length)] Reliably grounded end of probe Reliably insulated end of probe Fastener in female thread of probe end weight Insulated fastening kit Endress+Hauser...
  • Page 11 • In the case of WHG approval: a support is required for probe lengths ≥ 3 m (10 ft). • In general, rod probes must be secured in the event of horizontal flow (e.g. from an agitator) or strong vibrations. • Only secure rod probes directly at the end of the probe. Endress+Hauser...
  • Page 12 Probe Ø 8 mm (0.31 in) • a < Ø 14 mm (0.55 in) • b = Ø 8.5 mm (0.34 in) Probe Ø 12 mm (0.47 in) • a < Ø 20 mm (0.78 in) • b = Ø 12.5 mm (0.52 in) Endress+Hauser...
  • Page 13 Securing coax probes For WHG approval: a support is required for probe lengths ≥ 3 m (10 ft). A0012608 Coax probes can be secured (fixed) at any point in the ground tube. 5.1.3 Shortening the probe See Operating Instructions. Endress+Hauser...
  • Page 14: Mounting The Device

    If a seal is used to mount the device, use uncoated metal screws to ensure good electrical contact between the process flange and the probe flange. 5.2.3 Mounting rope probes NOTICE Electrostatic discharge can damage the electronics. ‣ Ground the housing before lowering the rope probe into the vessel. Endress+Hauser...
  • Page 15 350° 8 mm 8 mm A0032242 Unscrew the securing screw using an open-ended wrench. Rotate the housing in the desired direction. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or stainless steel housing). Endress+Hauser...
  • Page 16 Turn the display module to the desired position: Max. 8 × 45 ° in each direction. Feed the coiled cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. Endress+Hauser...
  • Page 17: Electrical Connection

    Without integrated overvoltage protection With integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, without integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, with integrated overvoltage protection Terminal for cable shield Endress+Hauser...
  • Page 18 Connection, switch output (open collector): terminals 3 and 4, without integrated overvoltage protection Connection, switch output (open collector): terminals 3 and 4, with integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, with integrated overvoltage protection Terminal for cable shield Endress+Hauser...
  • Page 19 Connection current output 2, 4 to 20 mA: terminals 3 and 4, with integrated overvoltage protection Connection current output 1, 4 to 20 mA HART passive: terminals 1 and 2, with integrated overvoltage protection Terminal for cable shield Endress+Hauser...
  • Page 20 Terminal assignment, 4-wire: 4 to 20 mA HART (10.4 to 48 V A0036516  8 Terminal assignment, 4-wire: 4 to 20 mA HART (10.4 to 48 V Connection 4 to 20 mA HART (active): terminals 3 and 4 Connection, supply voltage: terminals 1 and 2 Terminal for cable shield Endress+Hauser...
  • Page 21 Terminal assignment, 4-wire: 4 to 20 mA HART (90 to 253 V A0036519  10 Terminal assignment, 4-wire: 4 to 20 mAHART (90 to 253 V Connection 4 to 20 mA HART (active): terminals 3 and 4 Connection, supply voltage: terminals 1 and 2 Terminal for cable shield Endress+Hauser...
  • Page 22 Cable screen; observe cable specification Measuring device Supply voltage; observe terminal voltage, observe cable specification 6.1.2 Device plug In the case of the device versions with a plug, the housing does not need to be opened to connect the signal cable. Endress+Hauser...
  • Page 23 Levelflex FMP51, FMP52, FMP54 HART Electrical connection A0011175  12 Pin assignment of M12 plug Signal + Not assigned Signal - Ground A0011176  13 Pin assignment of 7/8" plug Signal - Signal + Not assigned Shielding Endress+Hauser...
  • Page 24 If the Bluetooth module is used, the minimum supply voltage increases by 2 V. At ambient temperatures T ≤ -30 °C, a terminal voltage U ≥ 16 V is required to start the device with the minimum failure current (3.6 mA). Endress+Hauser...
  • Page 25 At ambient temperatures T ≤ -30 °C, a terminal voltage U ≥ 16 V is required to start the device with the minimum failure current (3.6 mA). If the Bluetooth module is used, the minimum supply voltage increases by 2 V. Endress+Hauser...
  • Page 26 If the Bluetooth module is used, the minimum supply voltage increases by 2 V. Integrated polarity reversal protection Permitted residual ripple < 1 V with f = 0 to 100 Hz Permitted residual ripple < 10 mV with f = 100 to 10000 Hz Endress+Hauser...
  • Page 27: Connecting The Device

    Loosen the screw of the securing clamp of the connection compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise. Unscrew the connection compartment cover and check the cover seal; replace it if necessary. Endress+Hauser...
  • Page 28 The electrical connection of device versions without an integrated overvoltage protection is via plug-in spring-force terminals. Rigid conductors or flexible conductors with ferrules can be inserted directly into the terminal without using the lever, and create a contact automatically. Endress+Hauser...
  • Page 29: Operation Options

    2.5 Nm. Operation options The device can be operated as follows: • Operation via operating menu (display) • DeviceCare and Fieldcare, see Operating Instructions • SmartBlue (app), Bluetooth (optional), see Operating Instructions Endress+Hauser...
  • Page 30: Structure And Function Of The Operating Menu

    Visualization of a parameter (here: parameter with picklist) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Picklist;  marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser...
  • Page 31 • If present, opens the help text for the function of the parameter. • In a text and numeric editor: Pressing the key briefly: • Opens the selected group. • Carries out the selected action. • Carries out the selected action. Endress+Hauser...
  • Page 32: Access To The Operating Menu Via The Local Display

    When you call up the "Expert" menu, you are always asked for an access code. If a customer-specific access code has not been defined, "0000" must be entered. 7.2.1 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: Endress+Hauser...
  • Page 33: Switching On The Device

    8.1.1 Disabling write protection If the device is write-protected, write protection must first be disabled. See the Operating Instructions of the device for this purpose: BA01001F (FMP51/FMP52/FMP54, HART) Setting the operating language Factory setting: English or ordered local language Endress+Hauser...
  • Page 34 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0029420  18 Taking the example of the local display Endress+Hauser...
  • Page 35: Device Configuration

     Select Level option. Setup → Tank type  Select tank type. Setup → Tube diameter (only for "Tank type" = "Bypass / pipe")  Specify the diameter of the bypass or stilling well. Only available in devices with the "Interface measurement" application package Endress+Hauser...
  • Page 36  Compare the distance displayed with the actual value in order to start recording an interference echo map In the case of FMP54 with gas phase compensation (product structure: feature 540 "Application packages", option EF or EG), mapping cannot be performed Endress+Hauser...
  • Page 37  Enter device tag. Setup  →  Distance unit  Select the length unit. Setup  →  Operating mode  Select Interface option. Setup  →  Tank type  Select tank type. Only available in devices with the "Interface measurement" application package Endress+Hauser...
  • Page 38 R and the interface L 15. Setup  →  Signal quality  Displays the signal quality of the analyzed level echo. 16. Setup  →  Mapping  →  Confirm distance  Compare the distance displayed with the actual value to start recording an interference echo map. Endress+Hauser...
  • Page 40 *71565956* 71565956 www.addresses.endress.com...
