Front Panel Operation
CDM-760 Advanced High-Speed Trunking Modem
IPstats Port Selection
GigE 1
GigE 2
WAN
M&C
Opt

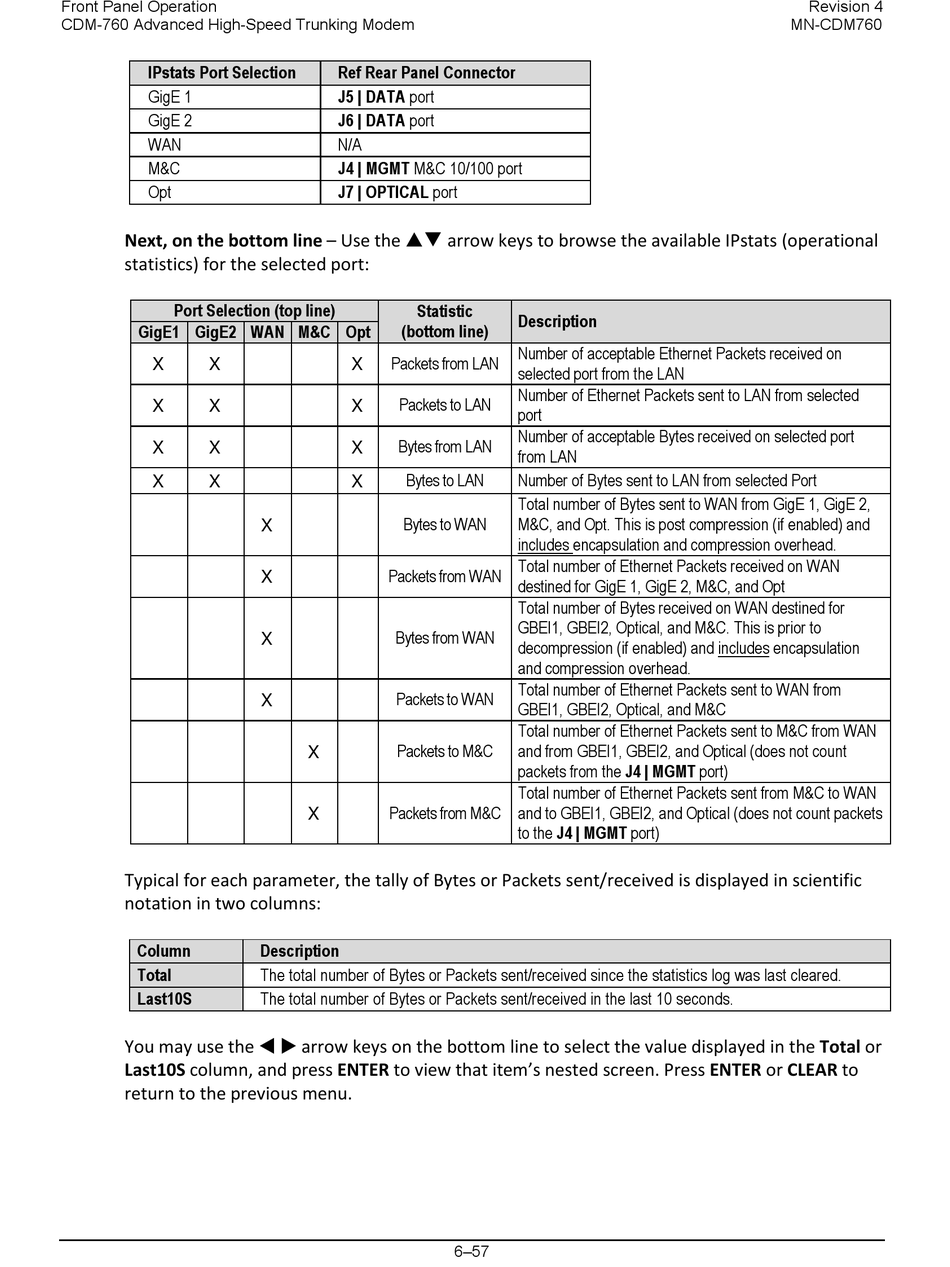

Next, on the bottom line – Use the arrow keys to browse the available IPstats (operational
statistics) for the selected port:
Port Selection (top line)
GigE1 GigE2 WAN M&C Opt
X
X
X
X
X
X
X
X
Typical for each parameter, the tally of Bytes or Packets sent/received is displayed in scientific
notation in two columns:
Column
Total
Last10S
You may use the arrow keys on the bottom line to select the value displayed in the Total or
Last10S column, and press ENTER to view that item's nested screen. Press ENTER or CLEAR to
return to the previous menu.
Ref Rear Panel Connector
J5 | DATA port
J6 | DATA port
N/A
J4 | MGMT M&C 10/100 port
J7 | OPTICAL port
Statistic
(bottom line)
Packets from LAN
X
Packets to LAN
X
Bytes from LAN
X
Bytes to LAN
X
Bytes to WAN
X
Packets from WAN
X
Bytes from WAN
X
Packets to WAN
X
Packets to M&C
X
Packets from M&C
X
Description
The total number of Bytes or Packets sent/received since the statistics log was last cleared.
The total number of Bytes or Packets sent/received in the last 10 seconds.
Description
Number of acceptable Ethernet Packets received on
selected port from the LAN
Number of Ethernet Packets sent to LAN from selected
port
Number of acceptable Bytes received on selected port
from LAN
Number of Bytes sent to LAN from selected Port
Total number of Bytes sent to WAN from GigE 1, GigE 2,
M&C, and Opt. This is post compression (if enabled) and
includes encapsulation and compression overhead.
Total number of Ethernet Packets received on WAN
destined for GigE 1, GigE 2, M&C, and Opt
Total number of Bytes received on WAN destined for
GBEI1, GBEI2, Optical, and M&C. This is prior to
decompression (if enabled) and includes encapsulation
and compression overhead.
Total number of Ethernet Packets sent to WAN from
GBEI1, GBEI2, Optical, and M&C
Total number of Ethernet Packets sent to M&C from WAN
and from GBEI1, GBEI2, and Optical (does not count
packets from the J4 | MGMT port)
Total number of Ethernet Packets sent from M&C to WAN
and to GBEI1, GBEI2, and Optical (does not count packets
to the J4 | MGMT port)
