8L
7L

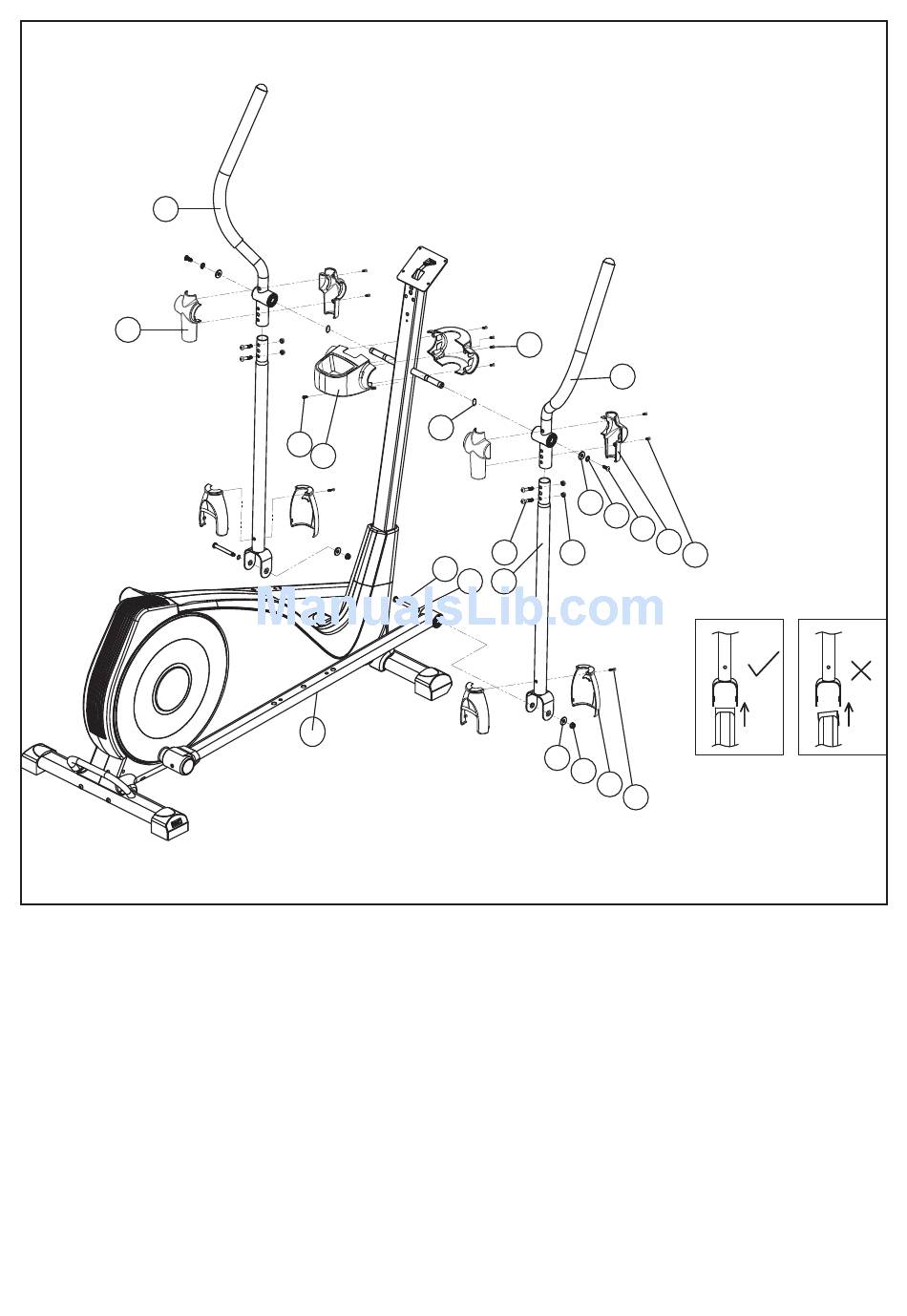

STEP 4
I. Slide the upper swing bar Left and Right (8) into the Center Shaft and secure using Wave washers (19), two
coated Allen Bolts (23), two wave washers (21), two spring washers (22).
II. Fit the lower swing bar Left and Right (15) by slotting them into the upper swing bar Left and Right (8) and
loosely fit four Allen bolts (14) and four nut (16).
III. Fasten footplate support bars (28 R+L) parallel (don't incline) to the lower swing bars (15 R+L) and secure it
with Allen bolts (26),washers (29) and nylon lock nuts (30). Then put the plastic cover (31) onto footplate support
bar left and right with screws (32)
IV. Fit the upper swing bar and lower swing bar and secure it four Allen bolts (14) and four nut (16)tighten fully.
Then put the plastic cover (7) onto swing bar left and right with screws (9),Secure the plastic cover (17) with
screws (9) and (11).
19
11
17
16
26
51
28R
7
9
8R
21
22
23
7R
14
16
15
29
30
31
32
9
