Gas Lines - Siemens MicroSAM Operating Instructions Manual

Mounting
4.4 Mounting and connecting
4.4.2

Gas lines

The gas lines are made of stainless steel with a 3 mm ∅ (1/8'').
● Use only very clean gas lines suitable for chromatography.
● Connect the gas lines to the gas chromatograph according to the piping diagram.
● Connect a stop valve upstream of each gas input to the gas chromatograph.
Gas connections on the gas chromatograph
● All gas inlets and outlets: Swagelok 1/8''.
● The gas inlets and outlets are numbered.
Number
1
2
3
4
5
6
7
8
58

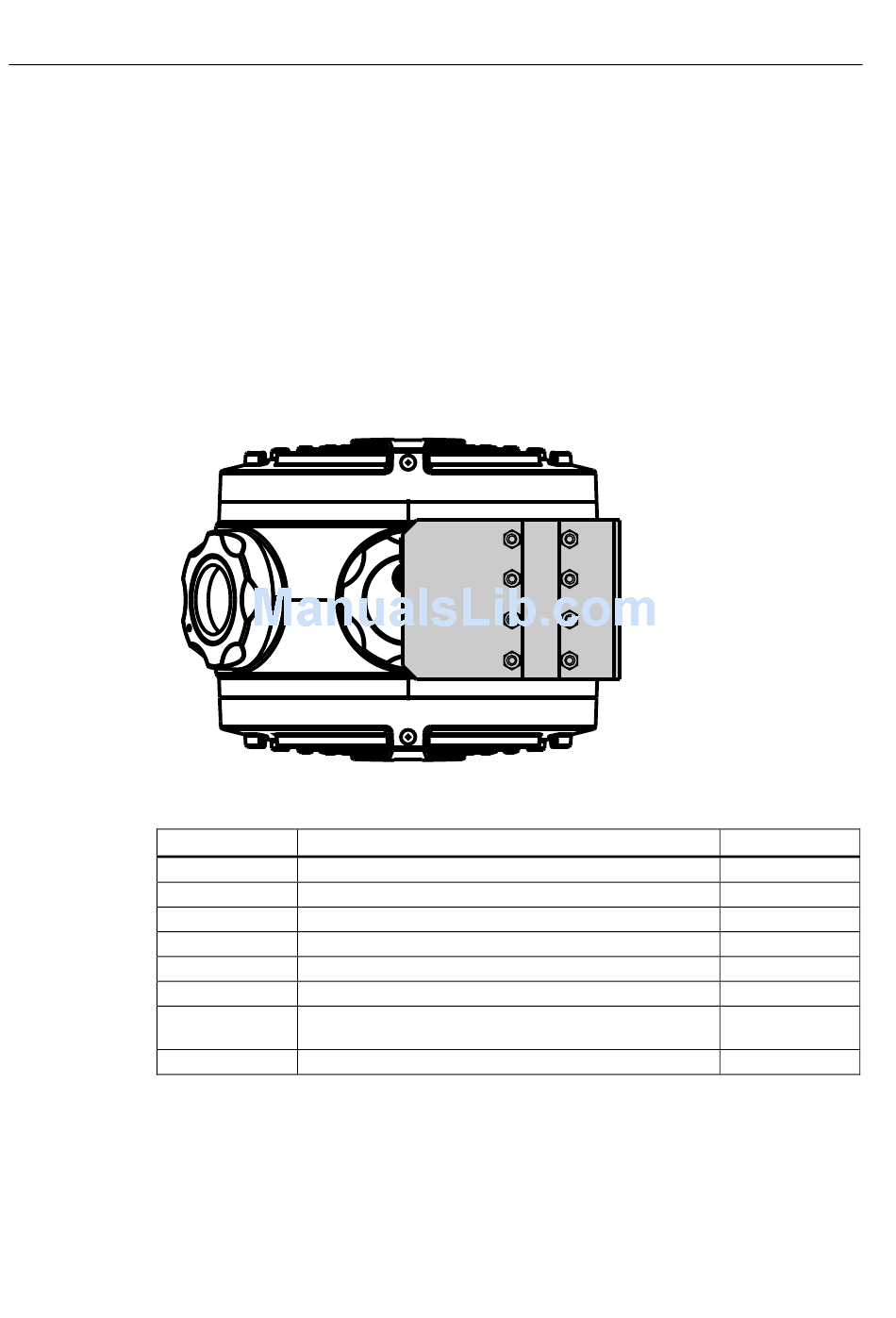

Figure 4-2 Gas connections
Description
Analysis module output
Analysis module output
Sample
Sample
Carrier gas input
Output from pneumatic connectors
Discharge of control medium for solenoid valves and EPC
flow inserts
Reserved
1 5
2 6
3 7
4 8
Operating Instructions, 06/2012, C79000-G5376-C560-07
Comment
Heated
Heated
Heated
Heated
Not heated
Not heated
Not heated
Unheated, closed
MicroSAM
