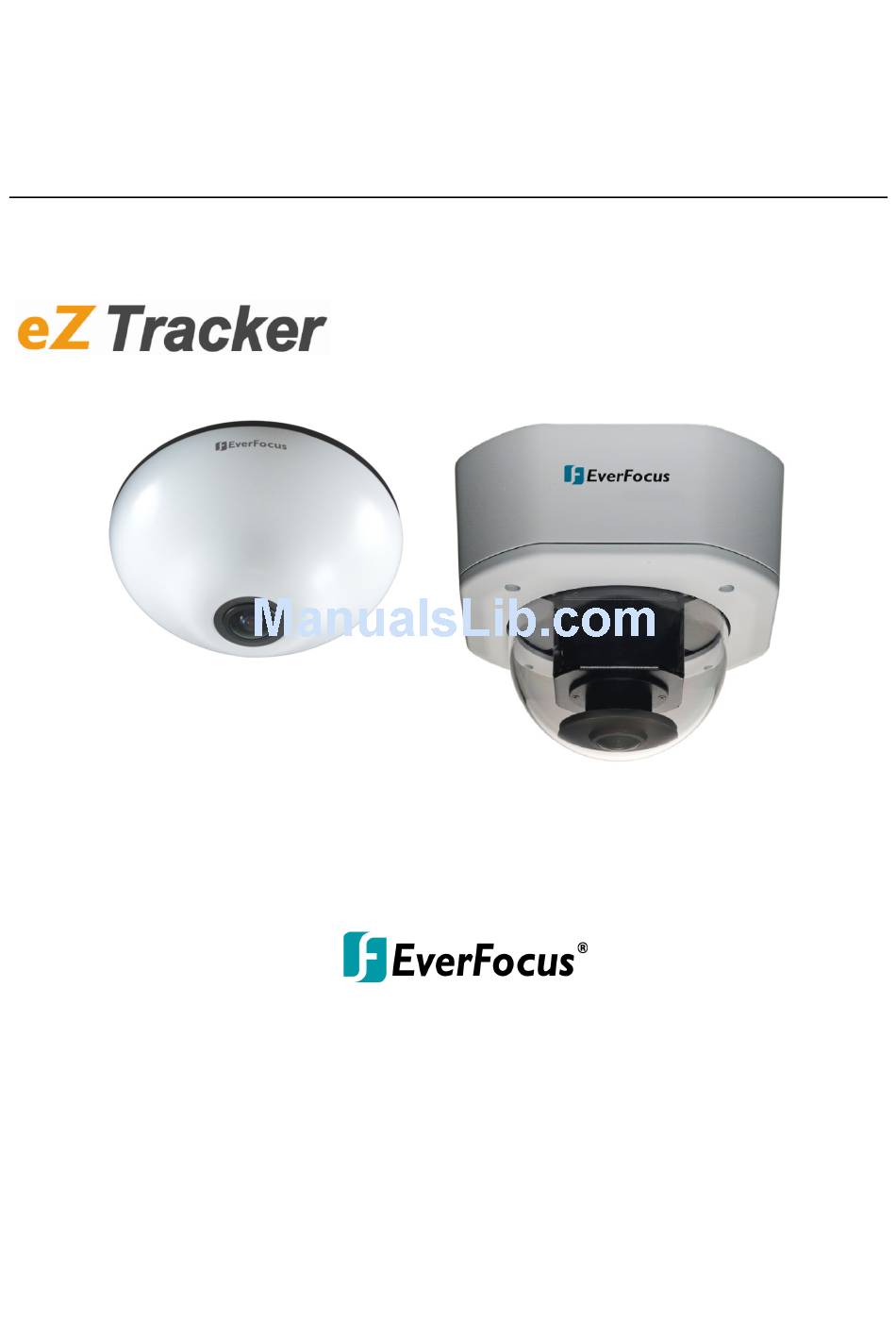

Page 1: Quick Installation Guide

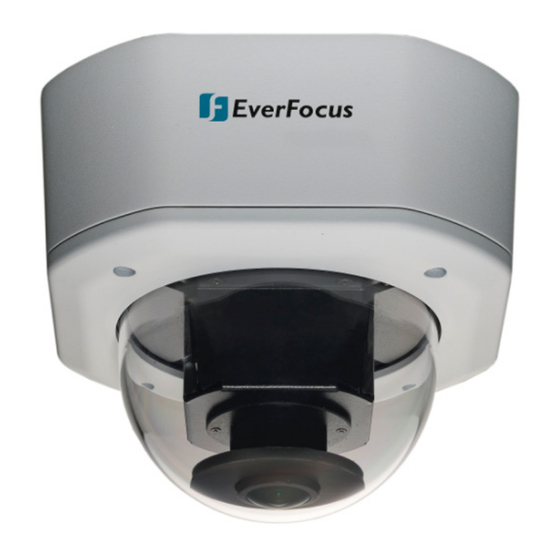

EFN Series Fisheye Network Camera 3MP 360 ePanoramic View, IP68, IK10 Quick Installation Guide Indoor Outdoor Copyright © EverFocus Electronics Corp, Release Date: August, 2014... -
Page 2: Physical Description
EFN Series Fisheye IP Camera 1. Physical Description The EFN Series is designed for indoor and outdoor use. The series comes in three models: Model Megapixel Type Protection Rating 12 VDC Audio EFN3320 3 MP Indoor EFN3320 3 MP Indoor EFN3321 3 MP Outdoor... -
Page 3: Outdoor Type
EFN Series Fisheye IP Camera Outdoor Type Item Name Descriptions Lens Fisheye lens with fixed IRIS and IR corrected. Cable Gland Equipped with three plugs inserted in the cable conduits for waterproofing. Reset Button Resets all configurations to the factory default settings. Press and hold the Reset Button for 10 seconds by using a pen or a paper click. -
Page 4: Minimum System Requirement
Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. -
Page 5: Cables And Terminal Block
EFN Series Fisheye IP Camera Cables and Terminal Block This section describes the cables and terminal block of the fisheye cameras. The EFN3320 only features a PoE cable. For EFN3320c (Indoor) The Cables provide connections for Network, power, audio input / output, alarm input / output and video test output. - Page 6 EFN Series Fisheye IP Camera For EFN3321 (Outdoor) The I/O terminal block, located on the camera module, can be used to develop applications for alarm input and output, two-way audio, TV-output or a variety of other functions. Note: You can unplug the terminal block from the camera module for easier wiring. Microphones / speakers with an (built-in) amplifier and external power supply are required.
-
Page 7: Installation
EFN Series Fisheye IP Camera 3. Installation 3.1 Indoor Type – Ceiling / Desk Mount Ceiling Mount Desk Mount 1. Stick the Mounting Template to the ceiling / desk. Drill the three red cross marks on the inner circle, and the square below only if you wish to run the cables through the ceiling / desk. Note that the square below also indicates the cable position. - Page 8 EFN Series Fisheye IP Camera 2. Insert the supplied three Anchors into the three holes and then screw the Base Plate to the ceiling / desk using the supplied three Screws. Base Plate 3. Place the Spacer onto the rear side of the camera. Remove the cut-out from the Spacer only if you want to run the cables along the ceiling / desk.
-
Page 9: Indoor Type-Wall Mount
EFN Series Fisheye IP Camera 5. Align the three latches on the camera with the three holes on the Base Plate, attach the camera to the Base Plate and then rotate clockwise to secure the camera to the Base Plate. Note that the triangle mark on the rear side of the camera and the Base Plate should point to the same direction. - Page 10 EFN Series Fisheye IP Camera 1. Stick the Mounting Template to the wall. Drill the three red cross marks on the inner circle. If you want to use the supplied Tilting Wall Mount Bracket, drill the three black cross marks on the outer circle.
- Page 11 EFN Series Fisheye IP Camera 3. If you are using the Base Plate, place the Spacer onto the rear side of the camera. This step is only for the Base Plate mounting. Remove the cut-out from the Spacer only if you want to run the cables along the wall.
- Page 12 EFN Series Fisheye IP Camera Note that the triangle mark on the rear side of the camera should point to the same direction with the triangle mark on the Base Plate / Tilting Wall Mount Bracket. Rear side of the camera Base Plate Tilting Wall Mount Bracket 6.
- Page 13 EFN Series Fisheye IP Camera 2. Unscrew the four screws and remove the Base Plate from the Camera Case. Camera Case Base Plate 3. Screw the Base Plate to the ceiling / wall / desk using the supplied four screws. Wiring Box Wall Base Plate...
- Page 14 EFN Series Fisheye IP Camera b. Loosen and remove the Cable Gland from the Camera Case. Screw the Cable Gland to the hole on the bottom of the Camera Case. Cable Gland Camera Case c. Screw the Circle Plate to the side hole on the camera Case. d.
- Page 15 EFN Series Fisheye IP Camera 4. Screw the Camera Case back to the Base Plate. Base Plate Camera Case 5. Insert the PoE cable or the additional cables through the Cable Gland. Up to three cables can be inserted. Note that except the PoE cable, additional wires have to be bundled into a cable with diameter ranging from 5.3mm to 6.4mm (see Step d below).
- Page 16 EFN Series Fisheye IP Camera c. Insert the PoE cable through the Cable Conduit, if your PoE cable already has a RJ-45 connector, then you can use the Slitted Cable Conduit. Slitted Cable Conduit d. Optionally insert the additional wires, such as power (if you want to power the camera through a 12 VDC power source), alarm and audio cables, through the other Cable Conduit.
- Page 17 EFN Series Fisheye IP Camera 8. Optionally insert a micro SDHC / SDHC card to the card slot. 9. Stick the supplied 2 desiccant bags inside the camera case. Note: It is highly recommended to replace the desiccant bags every time when you open the camera.
-
Page 18: Accessing The Camera
EFN Series Fisheye IP Camera 4. Accessing the Camera You can look up the IP address and access the Web interface of the camera using the IP Utility (IPU) software included in the software CD. Please connect the camera in the same LAN of your computer. - Page 19 EFN Series Fisheye IP Camera Note: 1. You might be required to install some add-ons for viewing the camera feed. If asked, click Run Add-on. 2. To enable Remove Live View, Firmware Upgrade and ActiveX Prompt on Internet Explorer, some settings have to be complete. Please refer to 4.2 Settings for Microsoft Internet Explorer in the User’s Manual.
- Page 20 EFN Series Fisheye IP Camera To set up a static IP: Select Static from IP Type drop-down list and set up the desired IP Address, for example, 172.17.0.145. Please also set up the Subnet Mask and Gateway. Click the Apply Changes button to apply and save the settings.
-
Page 21: Connecting To The Network
EFN Series Fisheye IP Camera 5. Connecting to the Network You can use one of the methods below to connect the camera to the network. Direct High-Speed Connection In a Direct High-Speed Connection, the camera connects directly to a modem without the need for a router. -
Page 22: One-To-One Connection (Directly From Pc To Ip Camera)
EFN Series Fisheye IP Camera One-to-One Connection (Directly from PC to IP camera) You can connect directly without using a switch, router or modem. However, only the PC connected to the camera will be able to view the IP camera. You will also have to manually assign a compatible IP address to both the computer and the IP camera. - Page 23 EFN Series Fisheye IP Camera Type the Username and Password. Click the OK button, the Login status displays. Note: 1. The default user ID is user1 and the default password is 11111111. 2. If you select more than one camera that has the same user ID / password, you will be able to log in several cameras at once.
