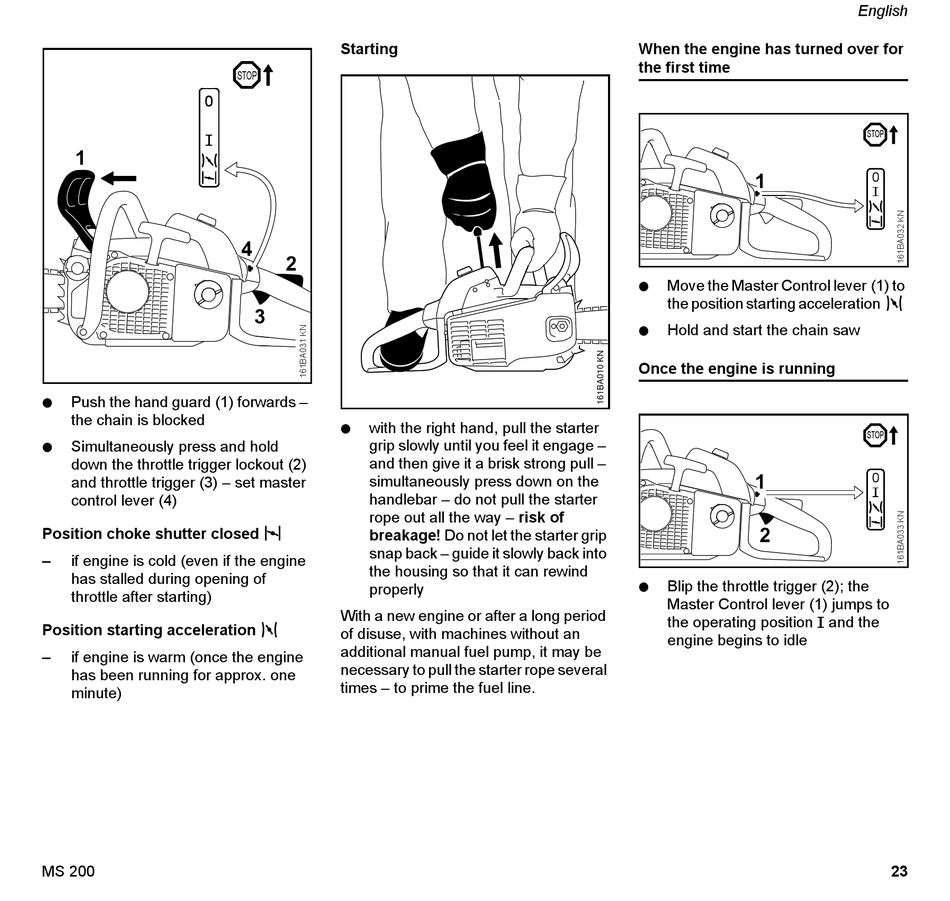

Stihl MS 200 Instruction Manual page 25

0
1
N Push the hand guard (1) forwards –
the chain is blocked
N
Simultaneously press and hold
down the throttle trigger lockout (2)
and throttle trigger (3) – set master
control lever (4)
Position choke shutter closed l
– if engine is cold (even if the engine
has stalled during opening of
throttle after starting)
Position starting acceleration n
– if engine is warm (once the engine
has been running for approx. one
minute)
MS 200
Starting
STOP
4
2
3
N with the right hand, pull the starter
grip slowly until you feel it engage –
and then give it a brisk strong pull –
simultaneously press down on the
handlebar – do not pull the starter
rope out all the way – risk of
breakage! Do not let the starter grip
snap back – guide it slowly back into
the housing so that it can rewind
properly
With a new engine or after a long period
of disuse, with machines without an
additional manual fuel pump, it may be
necessary to pull the starter rope several
times – to prime the fuel line.
When the engine has turned over for
the first time
1
N Move the Master Control lever (1) to
the position starting acceleration n
N Hold and start the chain saw
Once the engine is running
1
2
N Blip the throttle trigger (2); the
Master Control lever (1) jumps to
the operating position F and the
engine begins to idle
English
STOP
0
STOP
0
23
