Sanyo PLV-Z4 Service Manual page 42

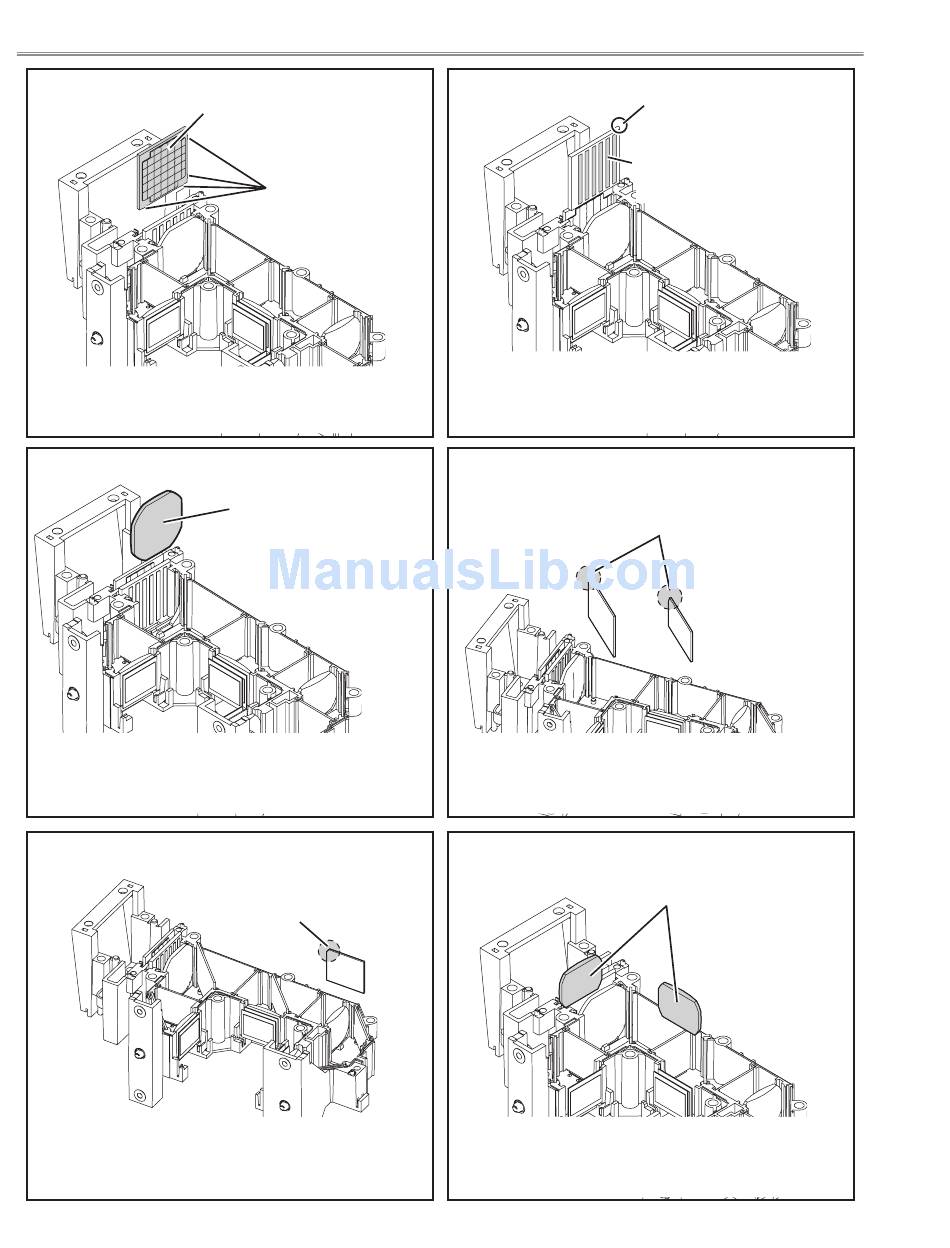

Optical disassemblies
INTEGRATOR LENS (OUT)
CONDENSER LENS (OUT)
OPTICAL FILTER (R)
Rugged surface side
comes this side.
Convex part
Flat surface side comes
this side.
Chamfer corner comes
this side up.
Chamfer corner comes this side up.
DICHROIC MIRROR
CONDENSER LENS (G, B)
- 42 -
Chamfer corner comes
this side.
Film attached side
comes this side.
PBS
Flat surface side comes
this side.
