Sanyo PLV-Z4 Service Manual page 41

101 LENS, PROJECTION
102R ASS'Y, LCD PNL/PRISM(M4WA_LRL) ---
102L ASS'Y, LCD PNL/PRISM(M4WA_RLR) ---
103 LENS, INTEGRATOR(IN)
104 LENS, INTEGRATOR(OUT) UV
105 LENS, CONDENSER(OUT)
106 LENS, CONDENSER(G)
107 LENS, CONDENSER(B)
108 LENS, CONDENSER(R)
109 LENS, RELAY(OUT)
110 MIRROR(B)
111 MIRROR(R)
112 OPTICAL FILTER(R)
113R OPTICAL FILTER(WV-G) --- Type R
113L OPTICAL FILTER(WV-G) --- Type L
114 PRISM(PBS)
115 POLARIZED GLASS(IN/G)
116 POLARIZED GLASS(IN/B)
117R POLARIZED GLASS(IN/R) --- Type R
117L POLARIZED GLASS(IN/R) --- Type L
118 DICHROIC MIRROR(B)
119 DICHROIC MIRROR(G)
Note: There are 2 types of LCD Panel/Prism ass'y. (Type-R and Type-L)
Each LCD Panel/Prism ass'y must combine and use the specific Optical filter(key No.113) and the polar-
ized glass(key No.117).
LCD Panel / Prism ass'y (Type R)
102R ASS'Y, LCD PNL/PRISM(M4WA_LRL) ---
R 102R-1 OPTICAL FILTER(WV-B) --- Type R
Type
L 102-2 POLARIZED GLASS(OUT/R)
Type
102-3 POLARIZED GLASS(OUT/G)
102-4 POLARIZED GLASS(OUT/B)
102L ASS'Y, LCD PNL/PRISM(M4WA_RLR) ---
102L-1 OPTICAL FILTER(WV-B) --- Type L
102-2 POLARIZED GLASS(OUT/R)
102-3 POLARIZED GLASS(OUT/G)
102-4 POLARIZED GLASS(OUT/B)
102-3
LCD Panel / Prism ass'y (Type L)
- 41 -

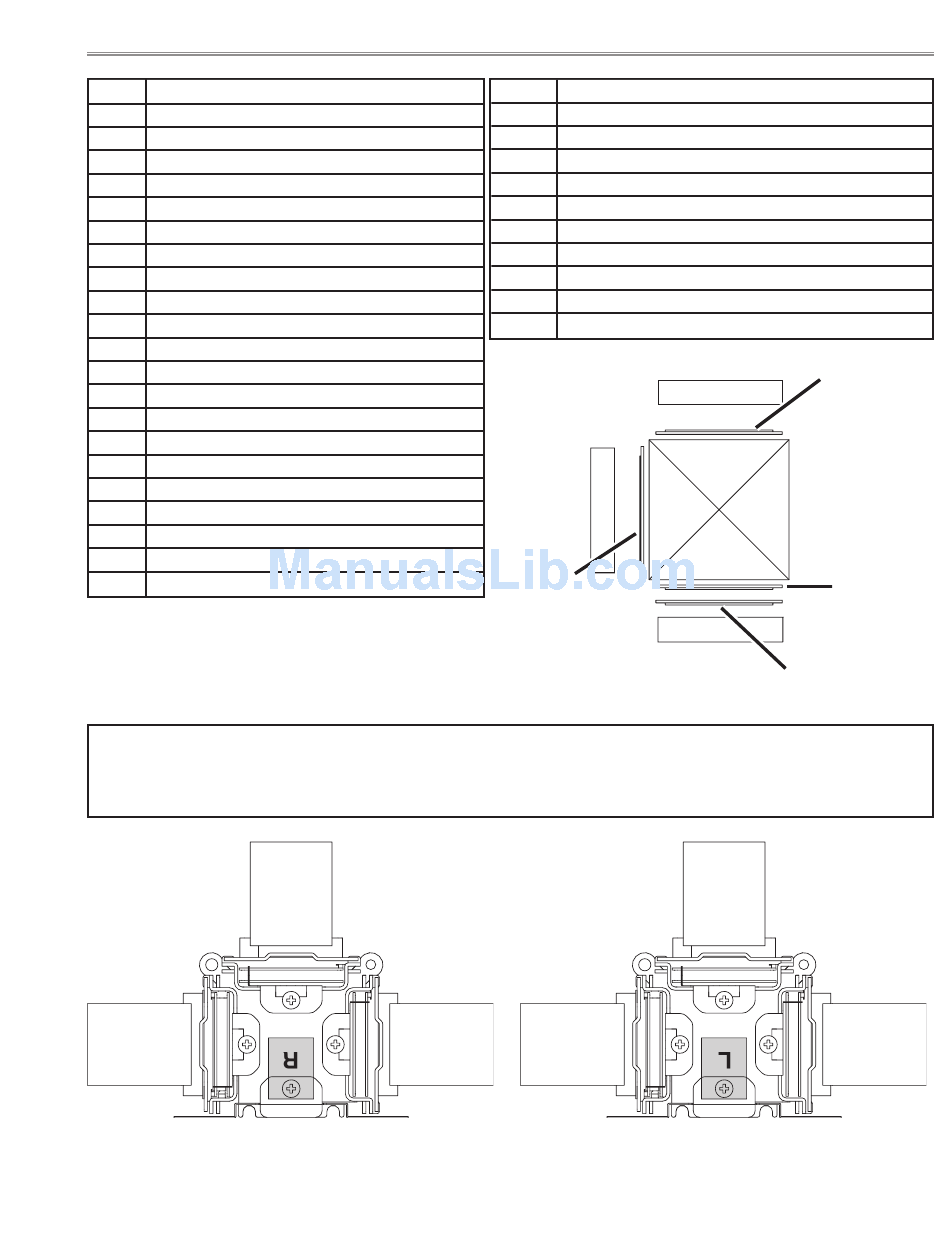

Optical disassemblies
R
Type
e L
Typ
102-2
102-4
102R-1
102L-1
